*Engine Cranks Does Not Start: Testing

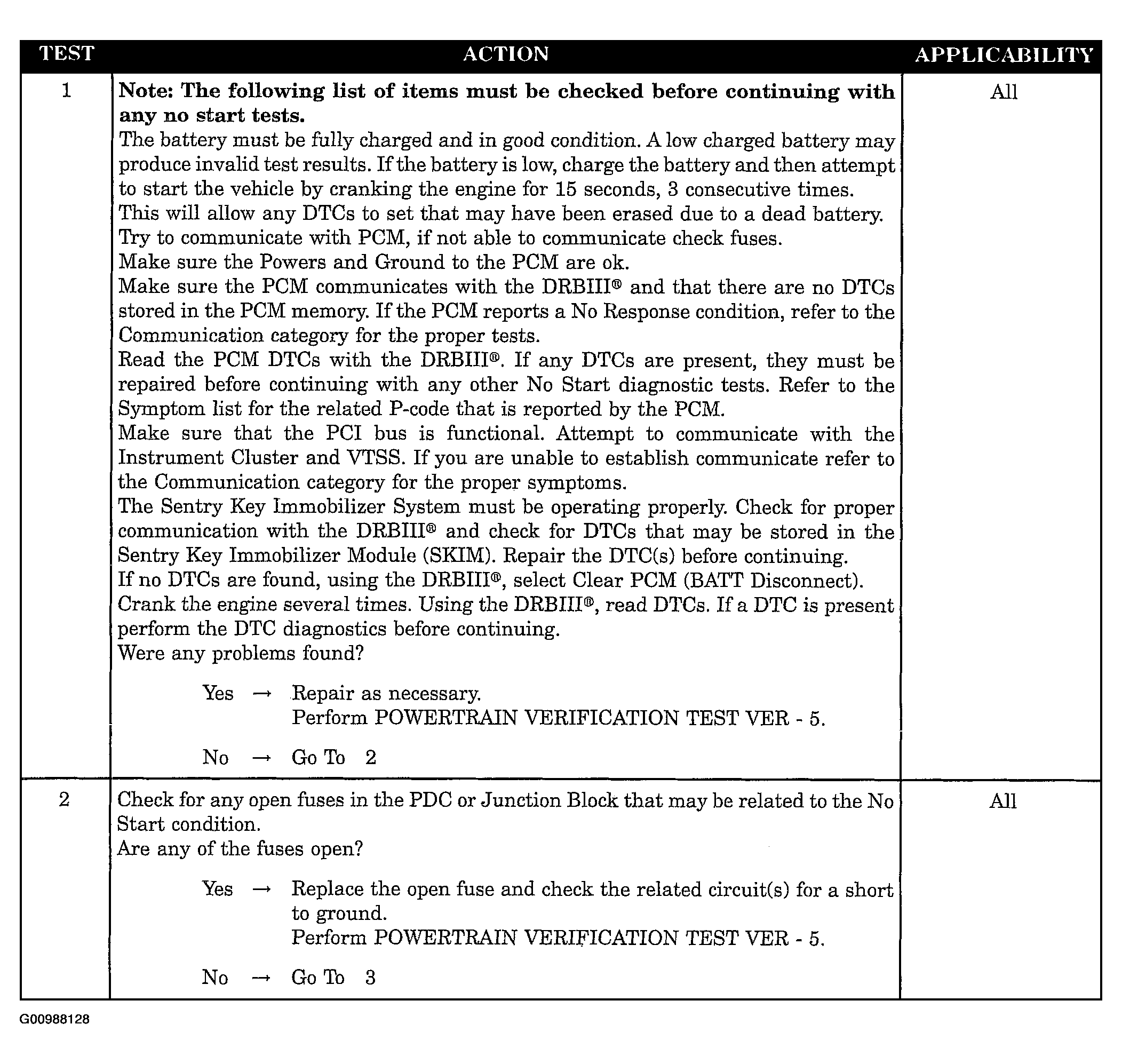

Fig 1: Testing: Engine Cranks Does Not Start (1 Of 3)
G00988128Courtesy of DAIMLERCHRYSLER CORP.

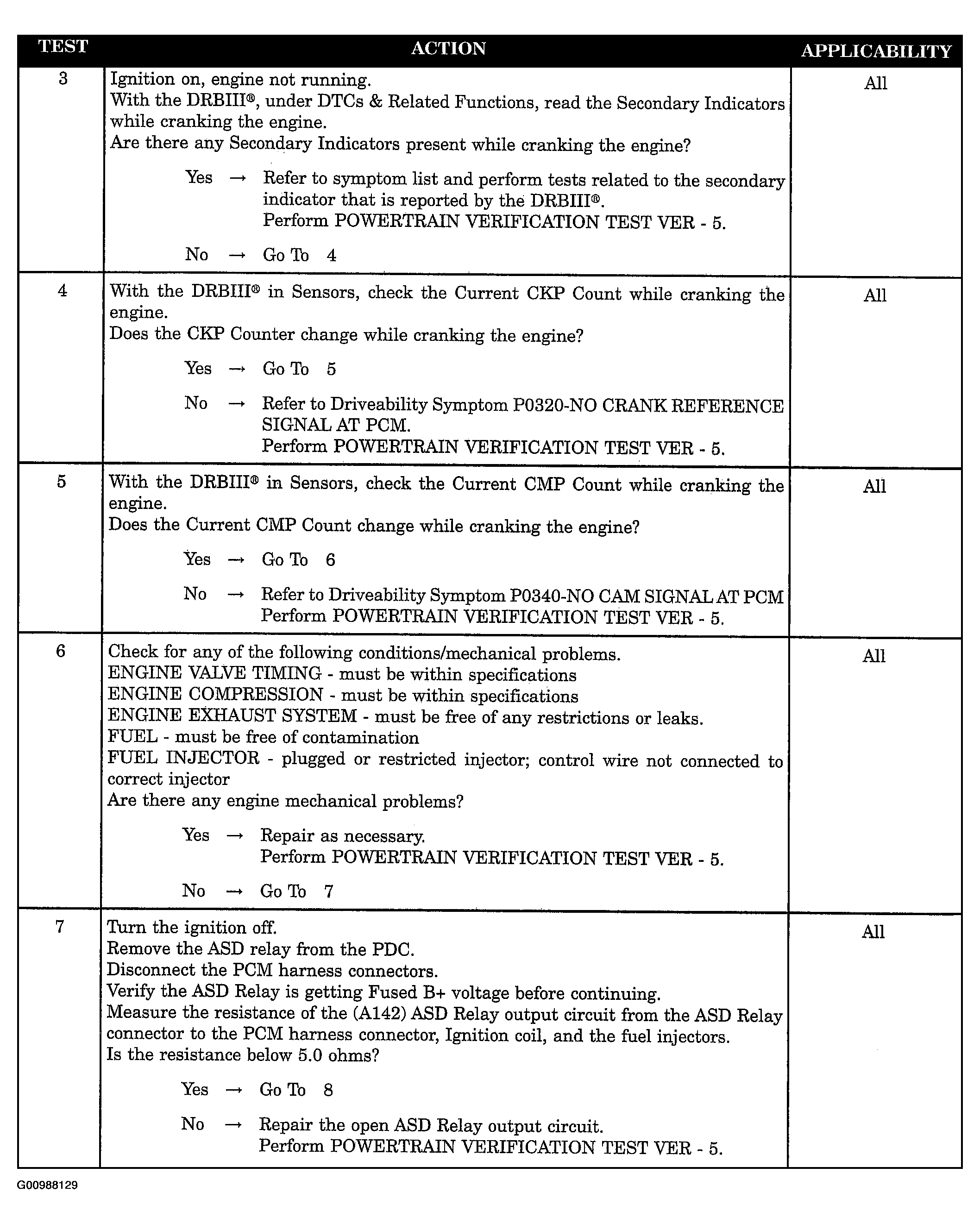

Fig 2: Testing: Engine Cranks Does Not Start (2 Of 3)
G00988129Courtesy of DAIMLERCHRYSLER CORP.

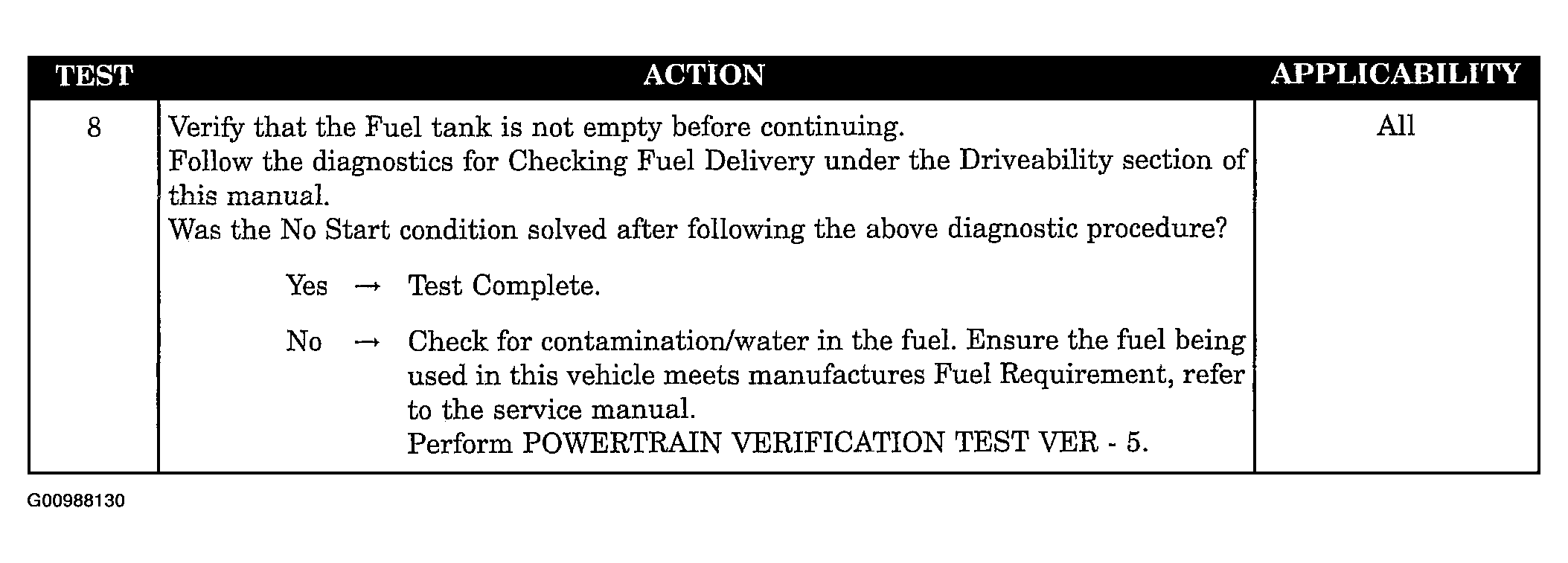

Fig 3: Testing: Engine Cranks Does Not Start (3 Of 3)
G00988130Courtesy of DAIMLERCHRYSLER CORP.
