Ignition Control
>>
Specifications
>>
Ignition Coil Resistance - 2.4L
Ignition Coil Resistance - 2.4L

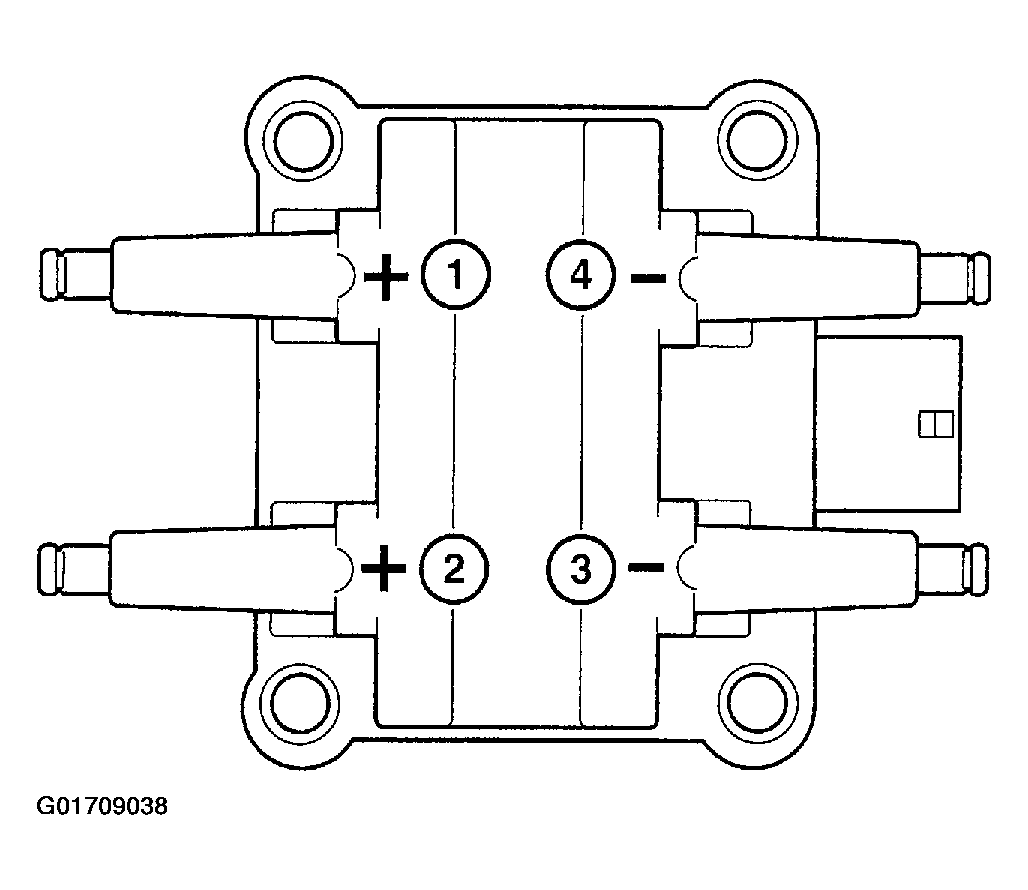

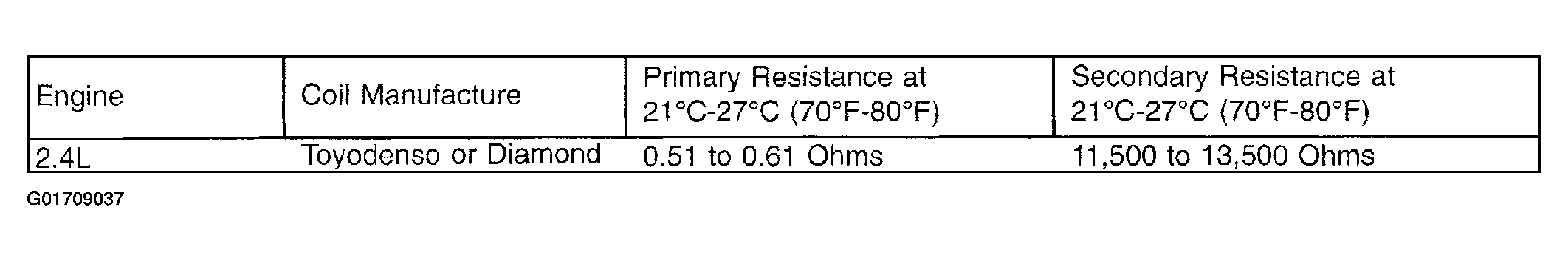

Fig 1: Identifying 2.4L Ignition Coil Resistance
Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Identifying 2.4L Ignition Coil
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
