Anti-Lock Brake System: G-Switch: Installation

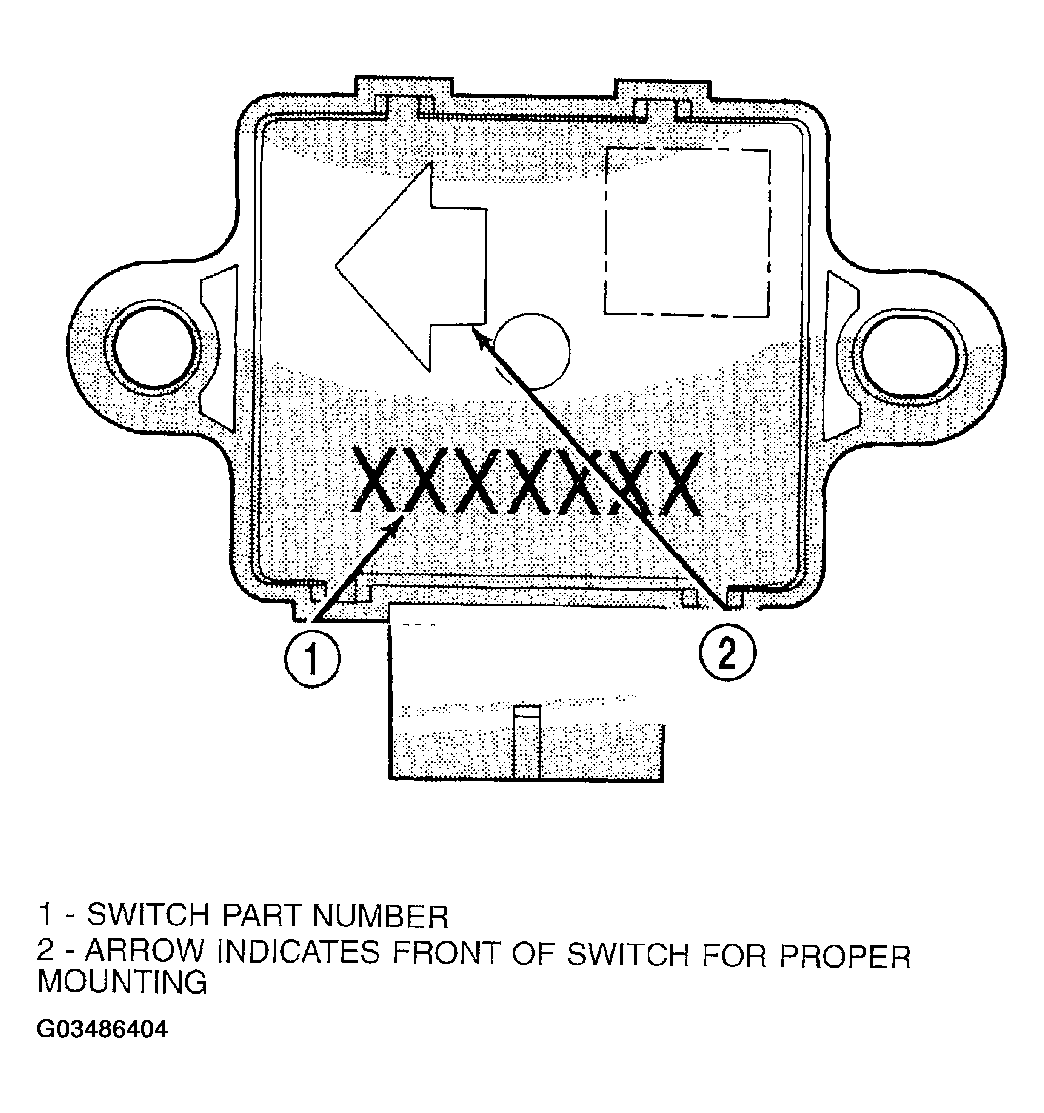

CAUTION: The mercury switch (inside the G-switch), will not function properly If the switch is installed incorrectly. Verify that the switch locating arrow is pointing to the front of the vehicle (Figure ).
  1. Position switch on mounting bracket.
  2. Install mounting bolts and tighten to 4-5 N.m (35-45 in. lbs.)
  3. Connect harness to switch.
  4. Place carpet back into position.
