Inlet Filter: Removal

The fuel pump inlet filter (strainer) is located on the bottom of fuel pump module. The fuel pump module is located on top of fuel tank.

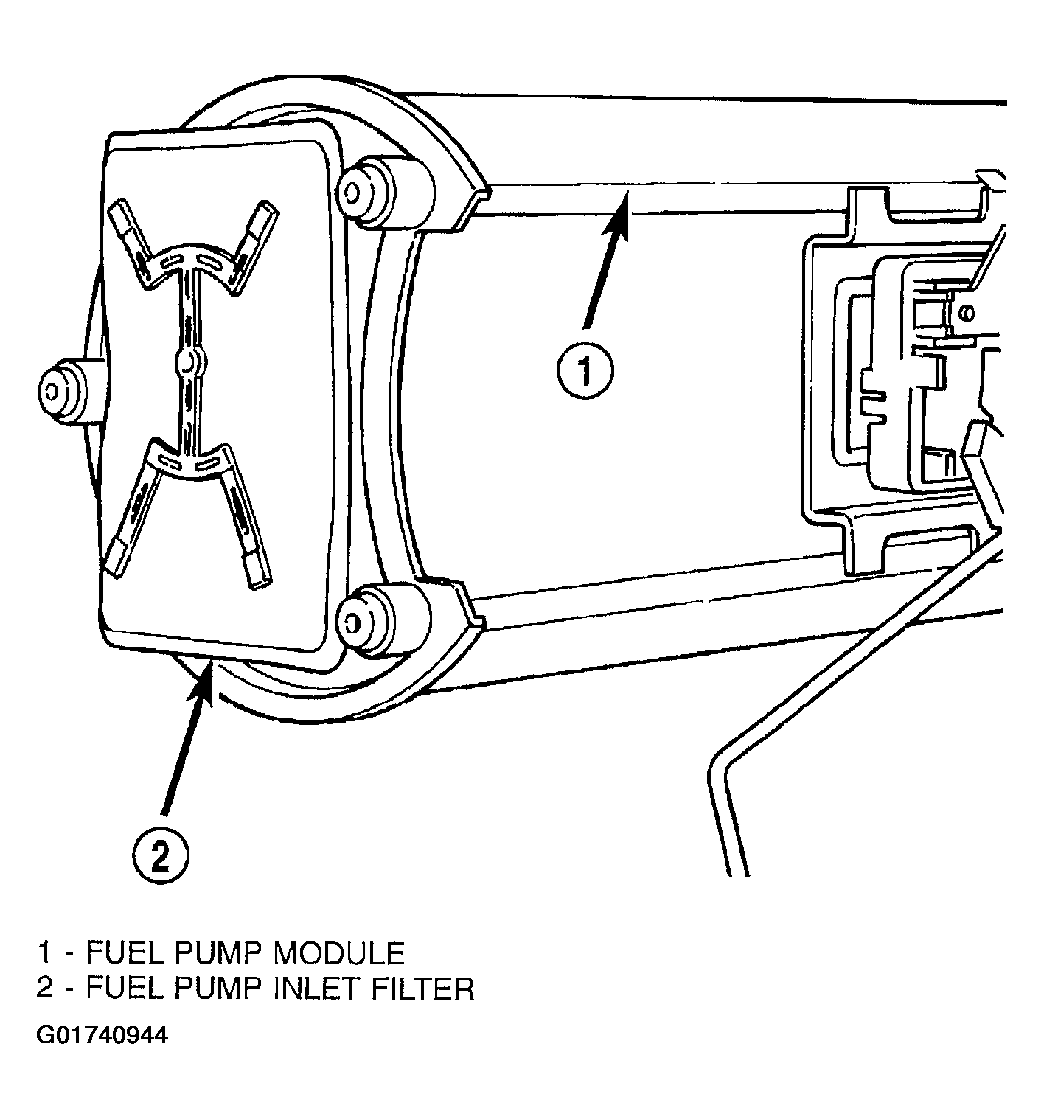

Fig 1: Removing Fuel Pump Inlet Filter

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove fuel tank. See FUEL TANK .
2. Remove fuel pump module. See FUEL PUMP MODULE .
3. Remove filter by prying from bottom of module with 2 screwdrivers. Filter is snapped to module.
4. Clean bottom of pump module.
