Home >> Jeep >> 2004 >> Wrangler X, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Starting >> *Start And Stall Condition >> Testing

*Start And Stall Condition: Testing

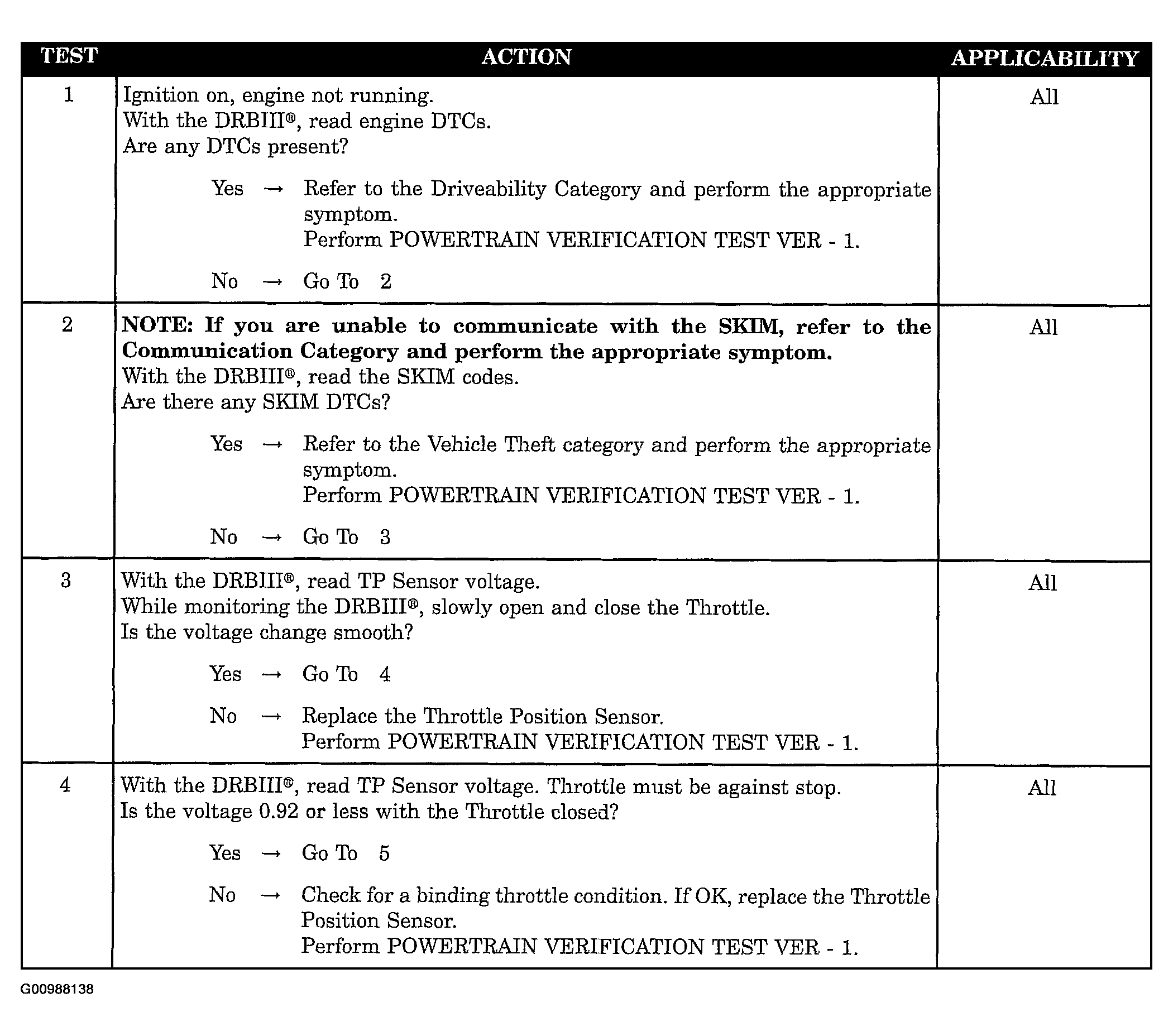

Fig 1: Testing: Start And Stall Condition (1 Of 2)
G00988138Courtesy of DAIMLERCHRYSLER CORP.

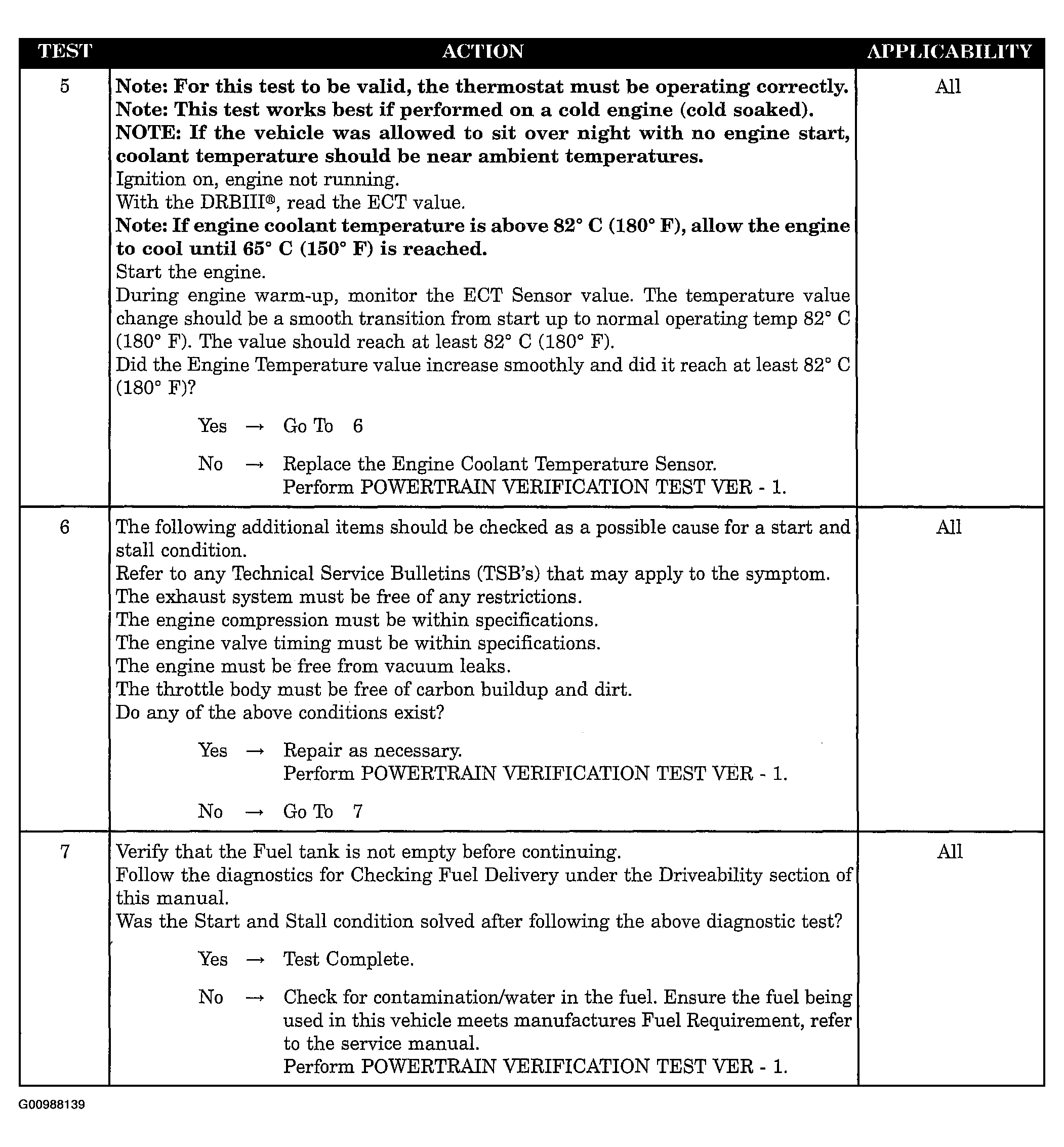

Fig 2: Testing: Start And Stall Condition (2 Of 2)
G00988139Courtesy of DAIMLERCHRYSLER CORP.
