Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

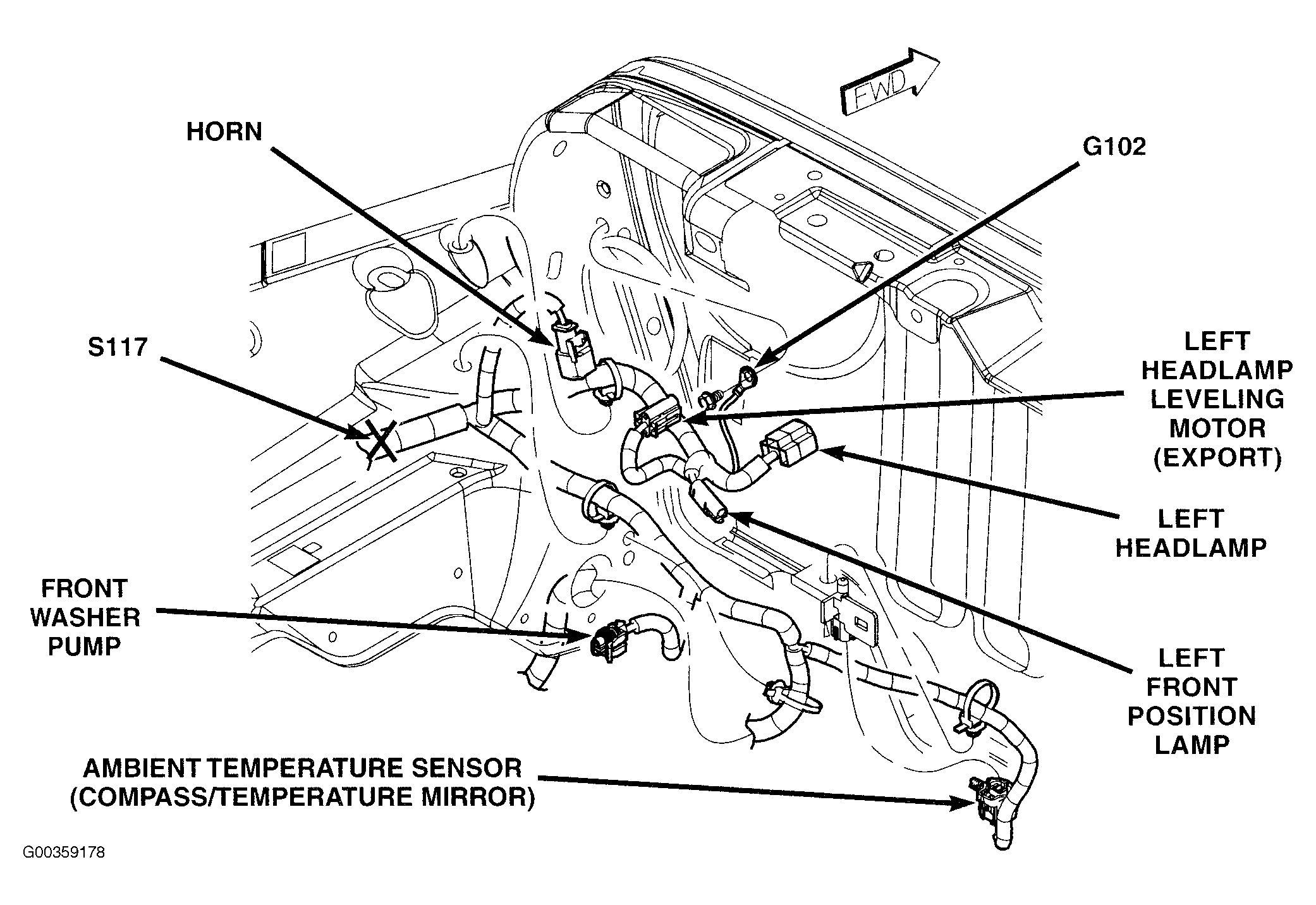

Fig 1: Left Side Of Engine Compartment

G00359178

Courtesy of DAIMLERCHRYSLER CORP.

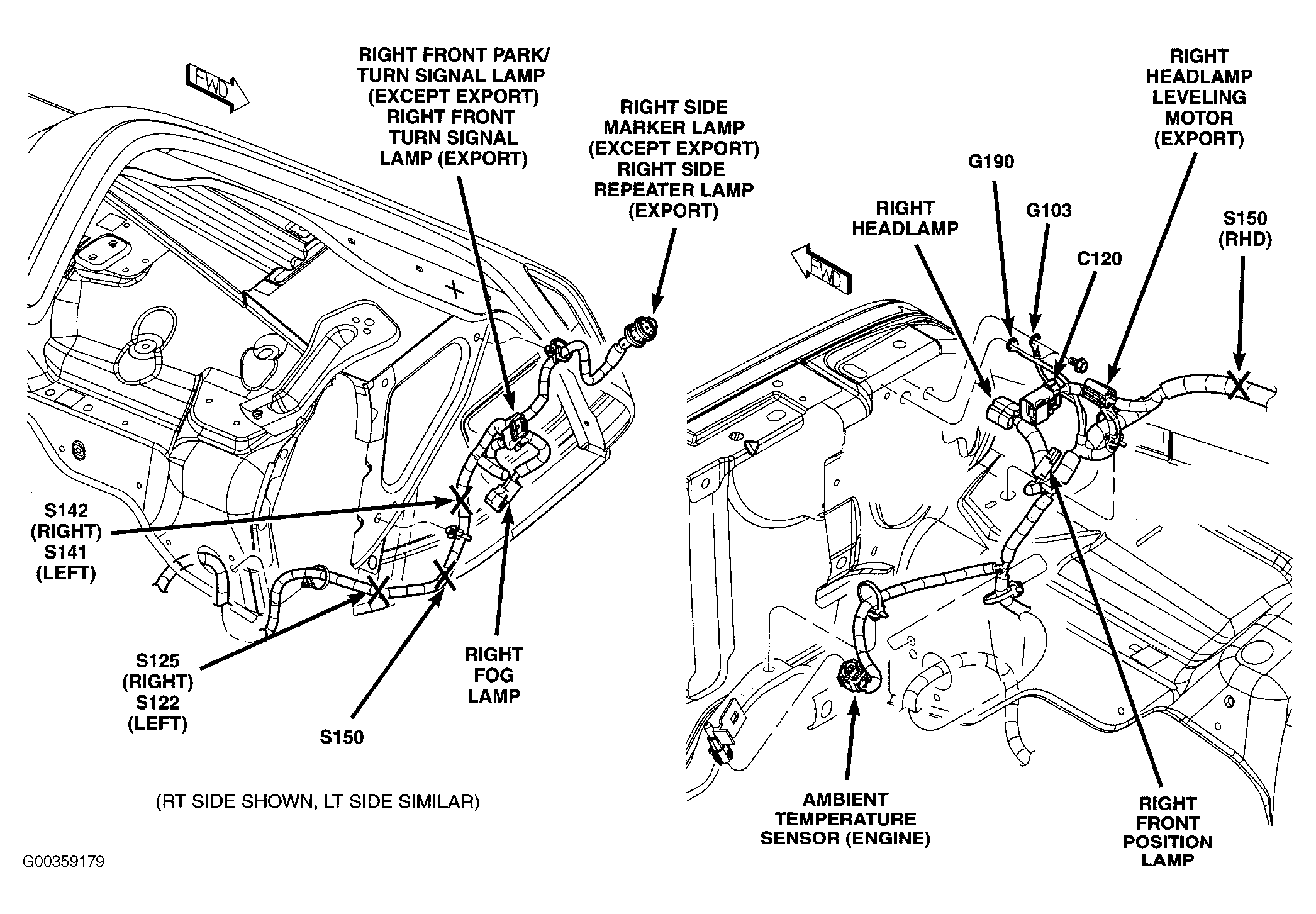

Fig 2: Right Front Of Engine Compartment

G00359179

Courtesy of DAIMLERCHRYSLER CORP.

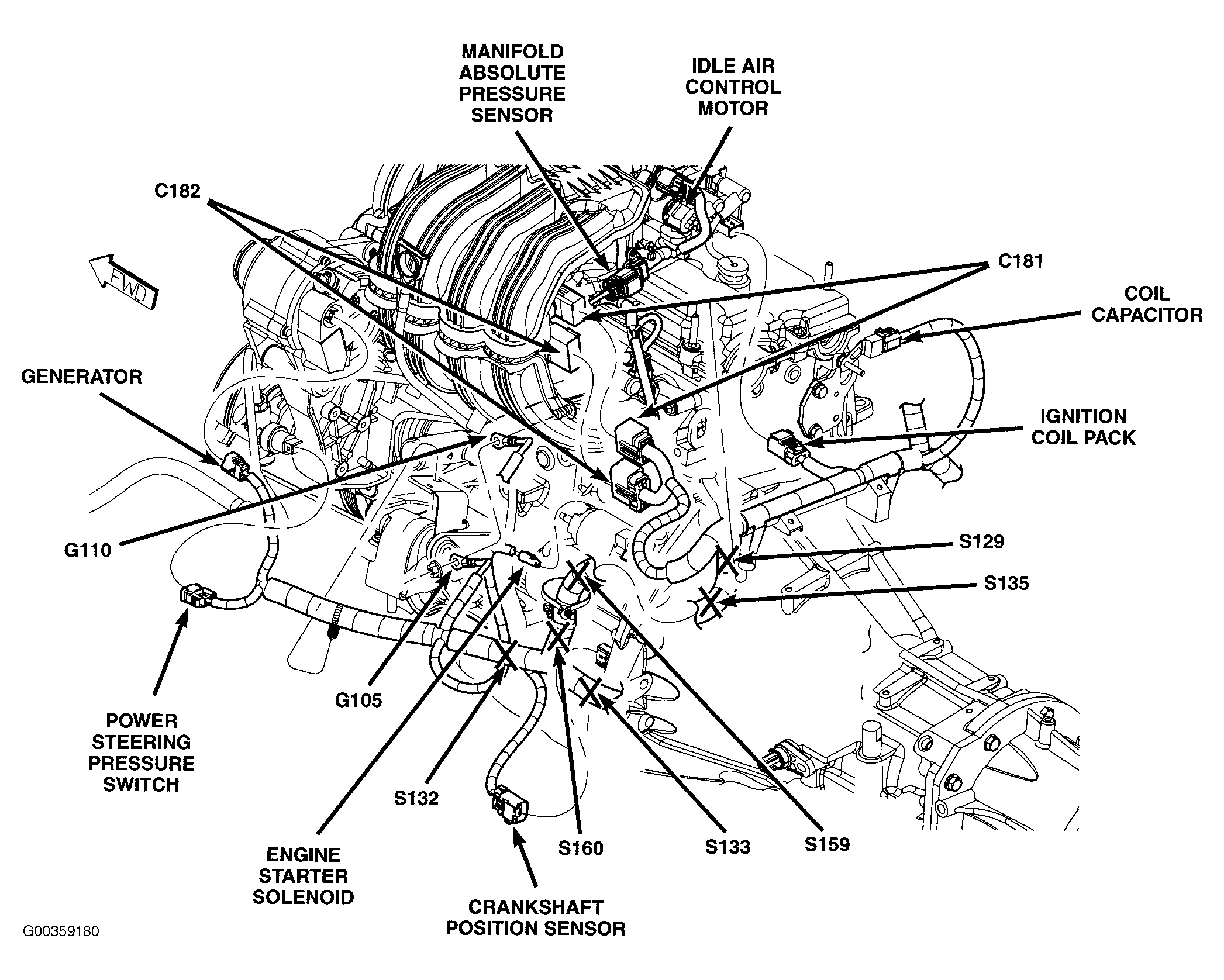

Fig 3: Left Side Of Engine (2.4L)

G00359180

Courtesy of DAIMLERCHRYSLER CORP.

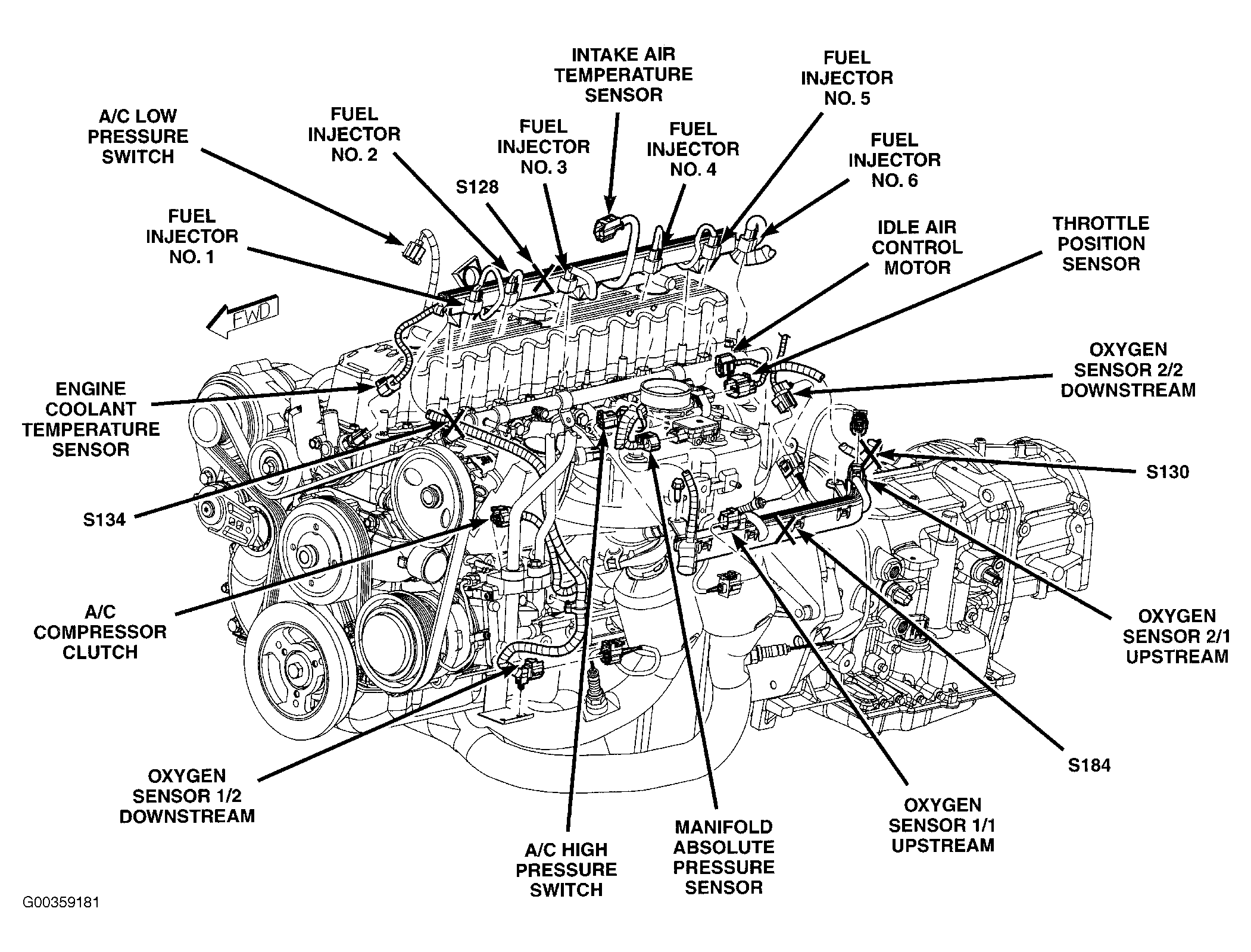

Fig 4: Left Side Of Engine (4.0L)

G00359181

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Right Side Of Engine Compartment (2.4L)

G00258877

Courtesy of DAIMLERCHRYSLER CORP.

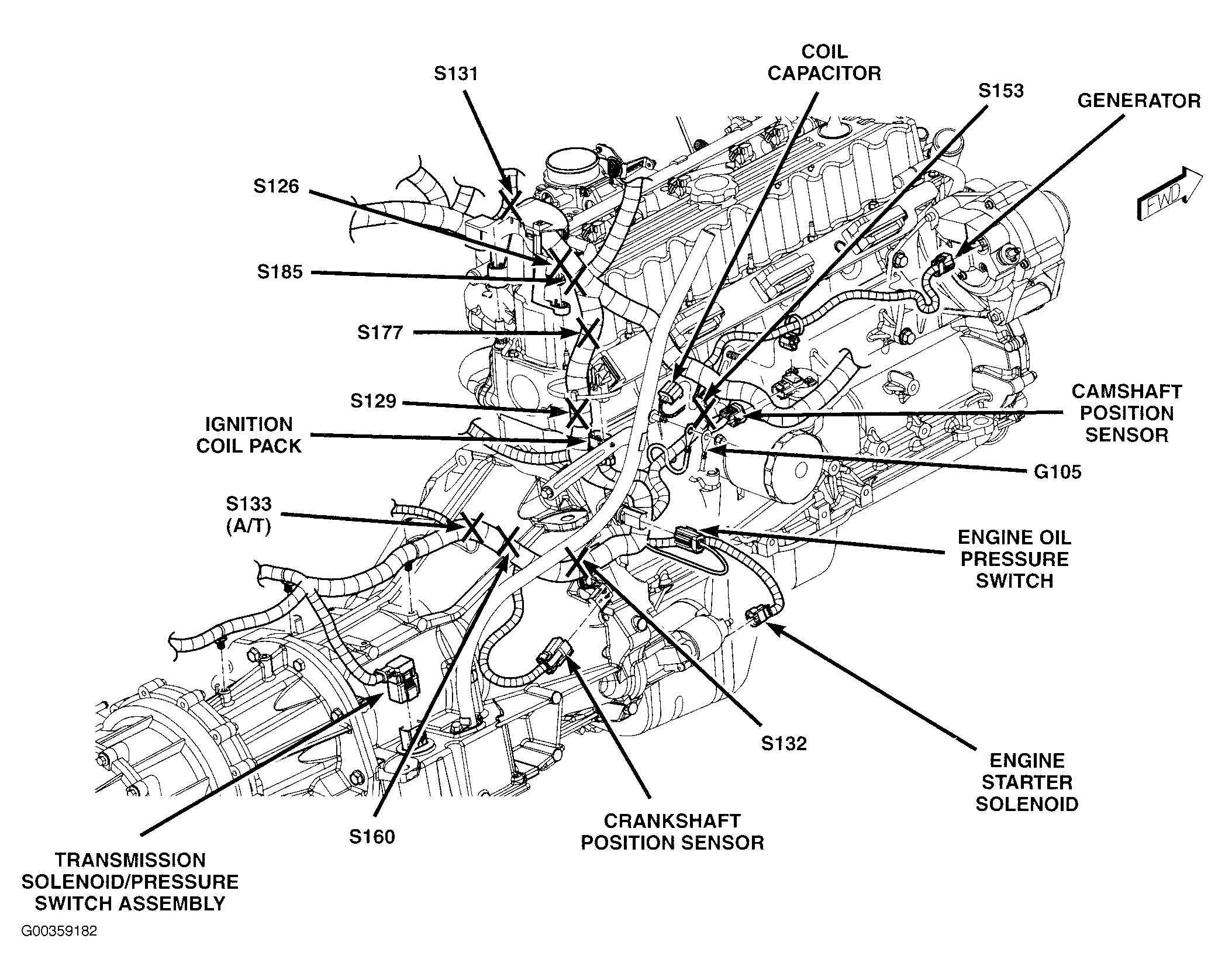

Fig 6: Right Side Of Engine (4.0L)

G00359182

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Rear Of Engine Compartment

G00359183

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Left Fender Shield

G00359184

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Front Wiper Motor

G00258882

Courtesy of DAIMLERCHRYSLER CORP.

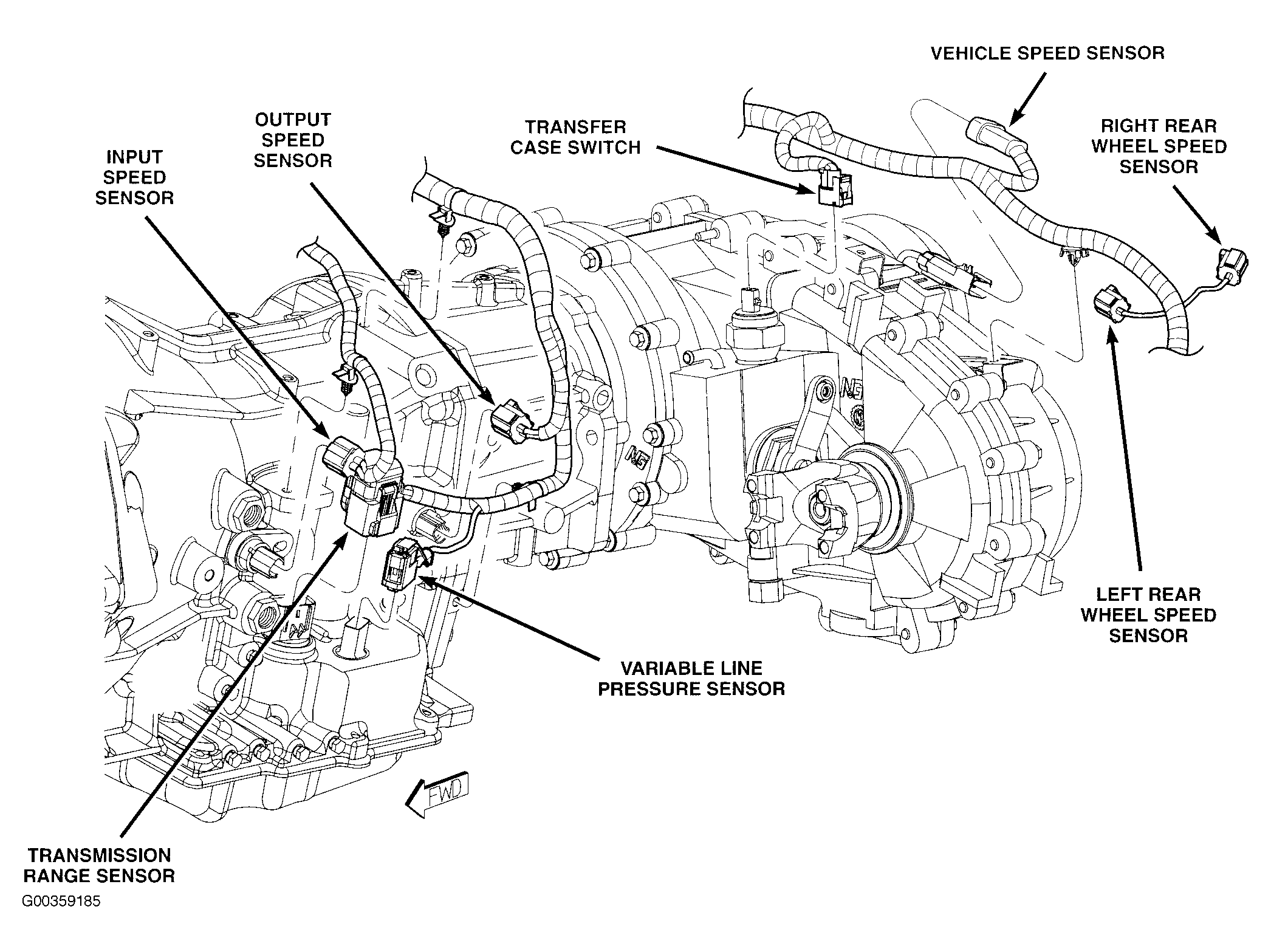

Fig 10: Left Side Of Engine & Transmission (4.0L)

G00359185

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Left Side Of Engine & Transmission (4.0L)

G00258884

Courtesy of DAIMLERCHRYSLER CORP.

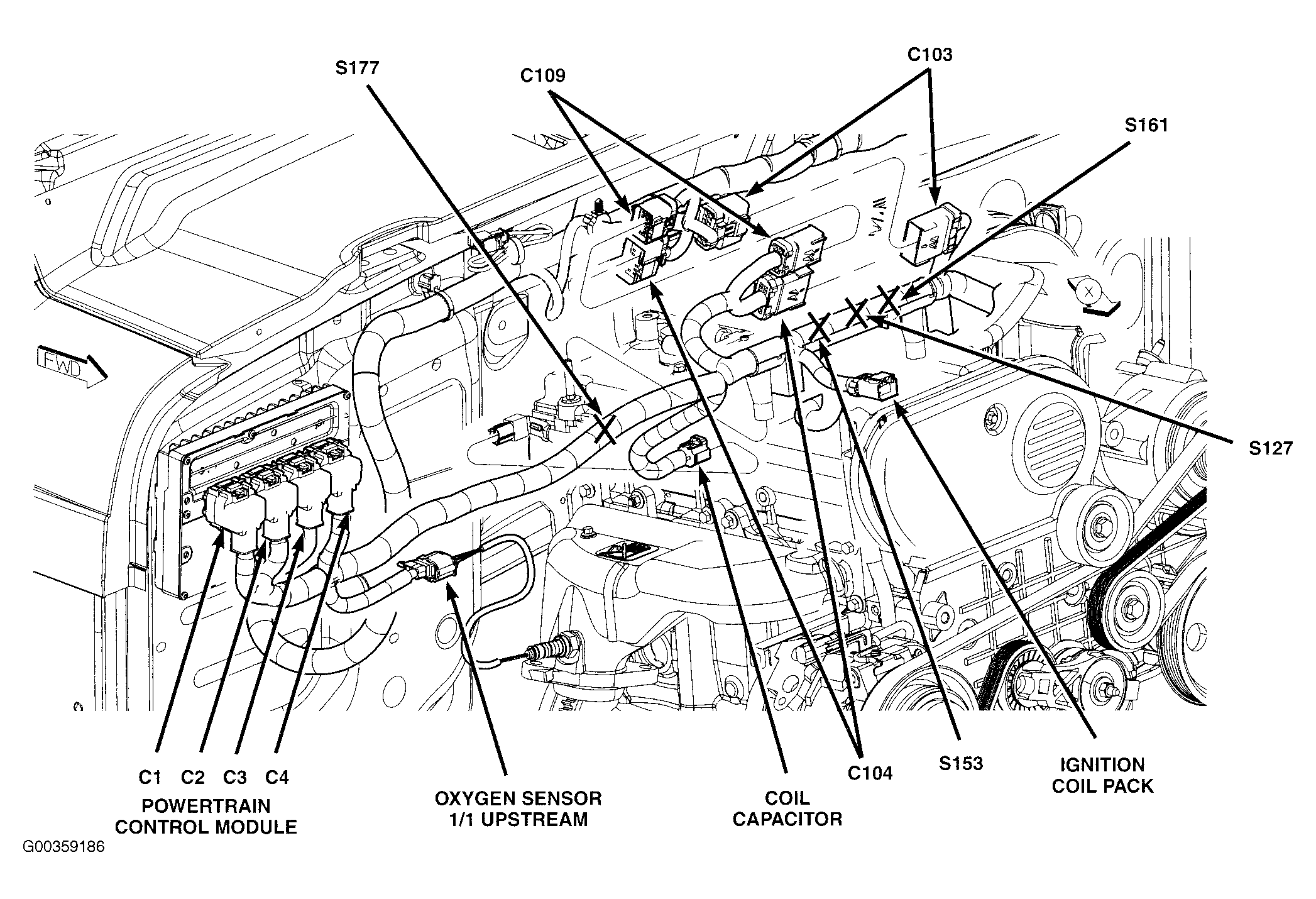

Fig 12: Right Rear Of Engine Compartment (2.4L)

G00359186

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Dash

G00359187

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Body Harness

G00258889

Courtesy of DAIMLERCHRYSLER CORP.

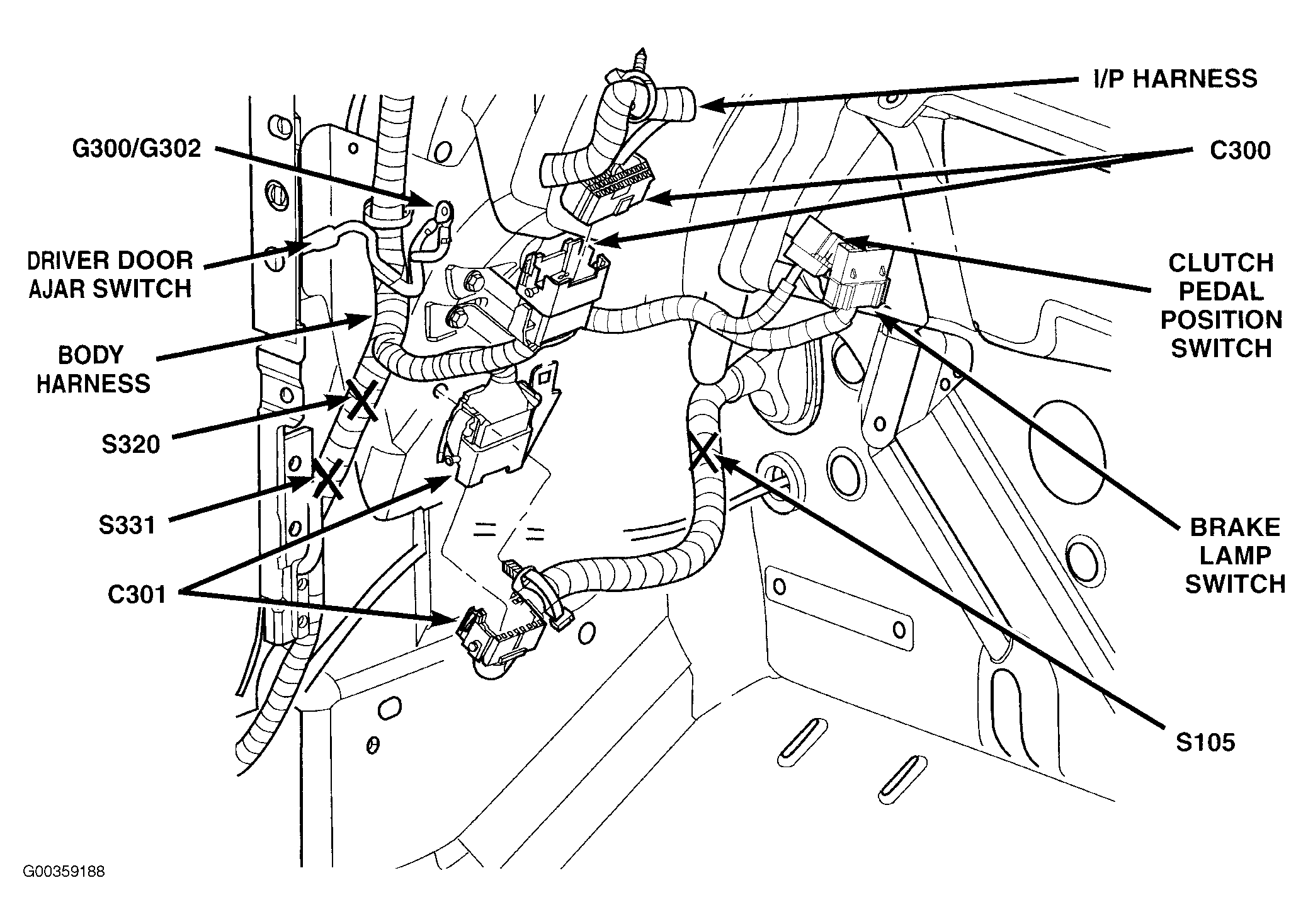

Fig 15: Left Kick Panel

G00359188

Courtesy of DAIMLERCHRYSLER CORP.

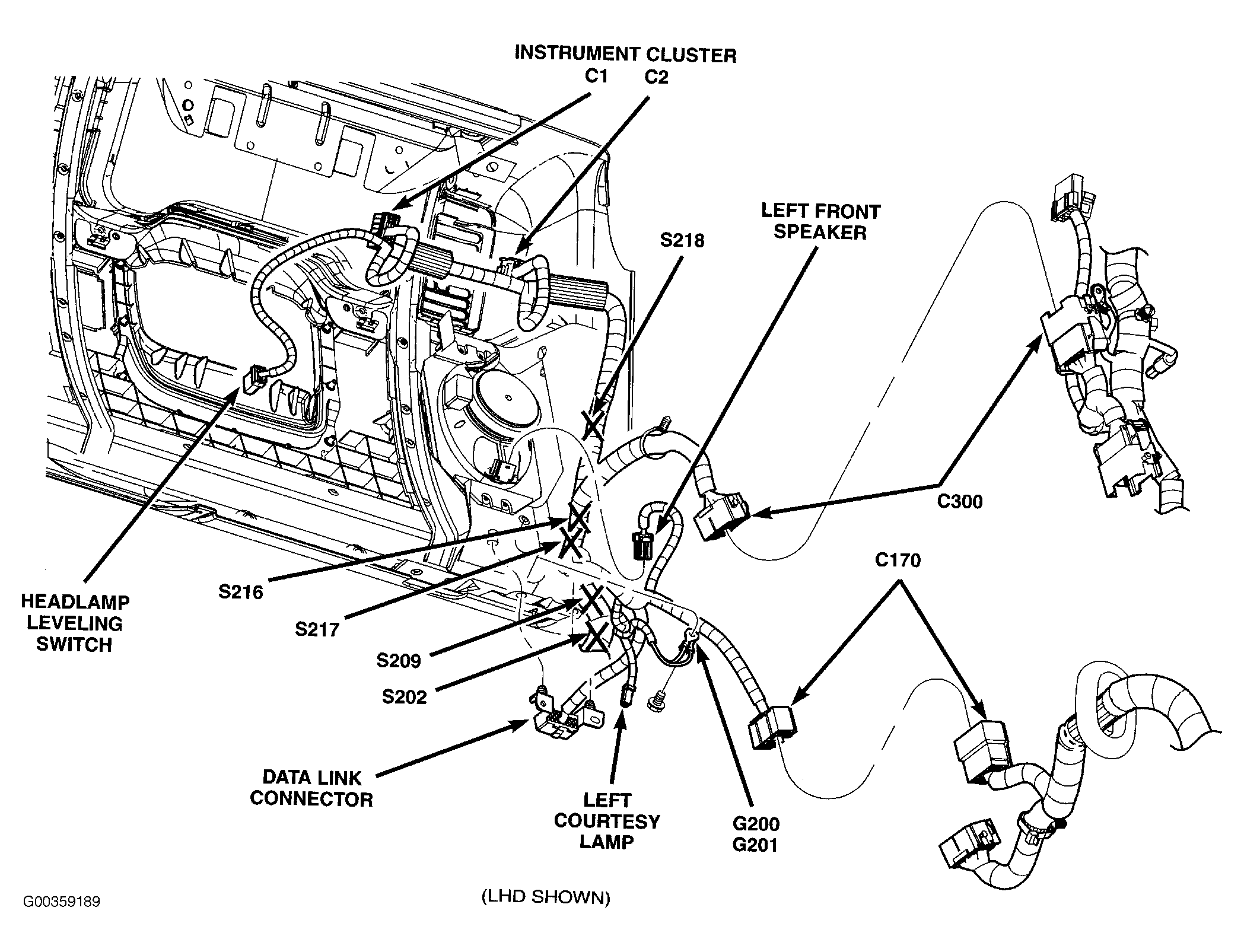

Fig 16: Left Side Of Dash

G00359189

Courtesy of DAIMLERCHRYSLER CORP.

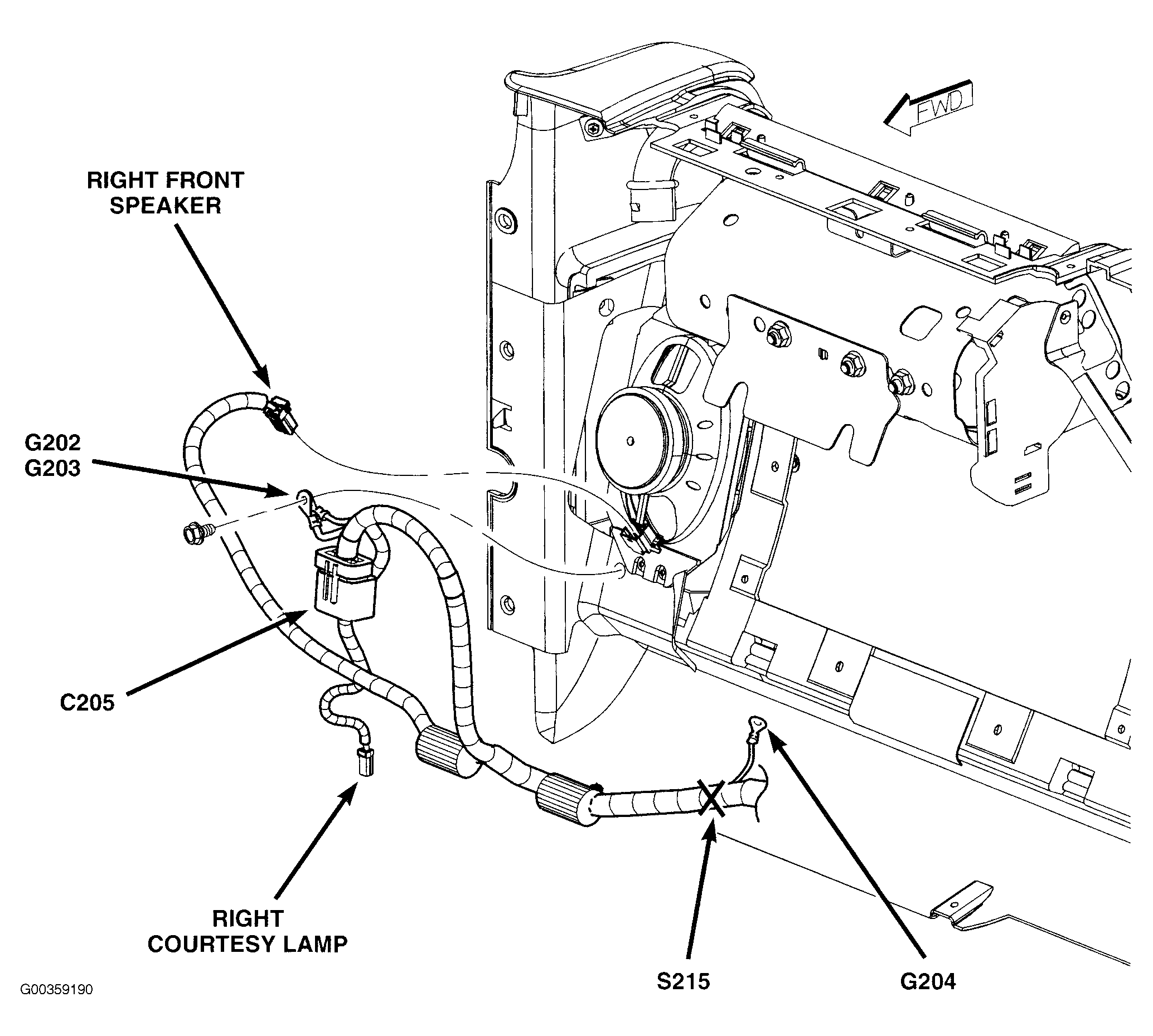

Fig 17: Right Side Of Dash

G00359190

Courtesy of DAIMLERCHRYSLER CORP.

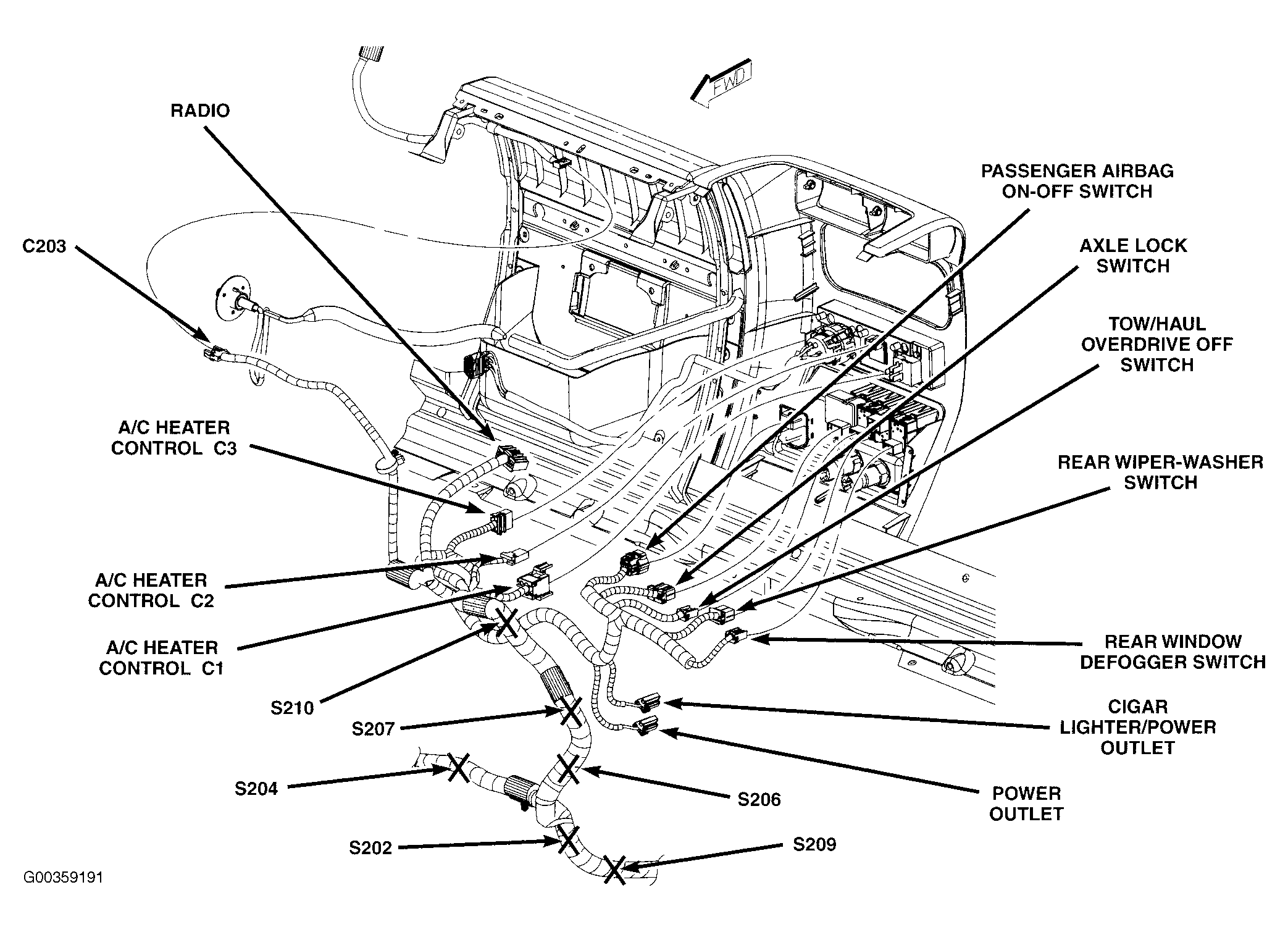

Fig 18: Center Of Dash

G00359191

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Steering Column Connections

G00359192

Courtesy of DAIMLERCHRYSLER CORP.

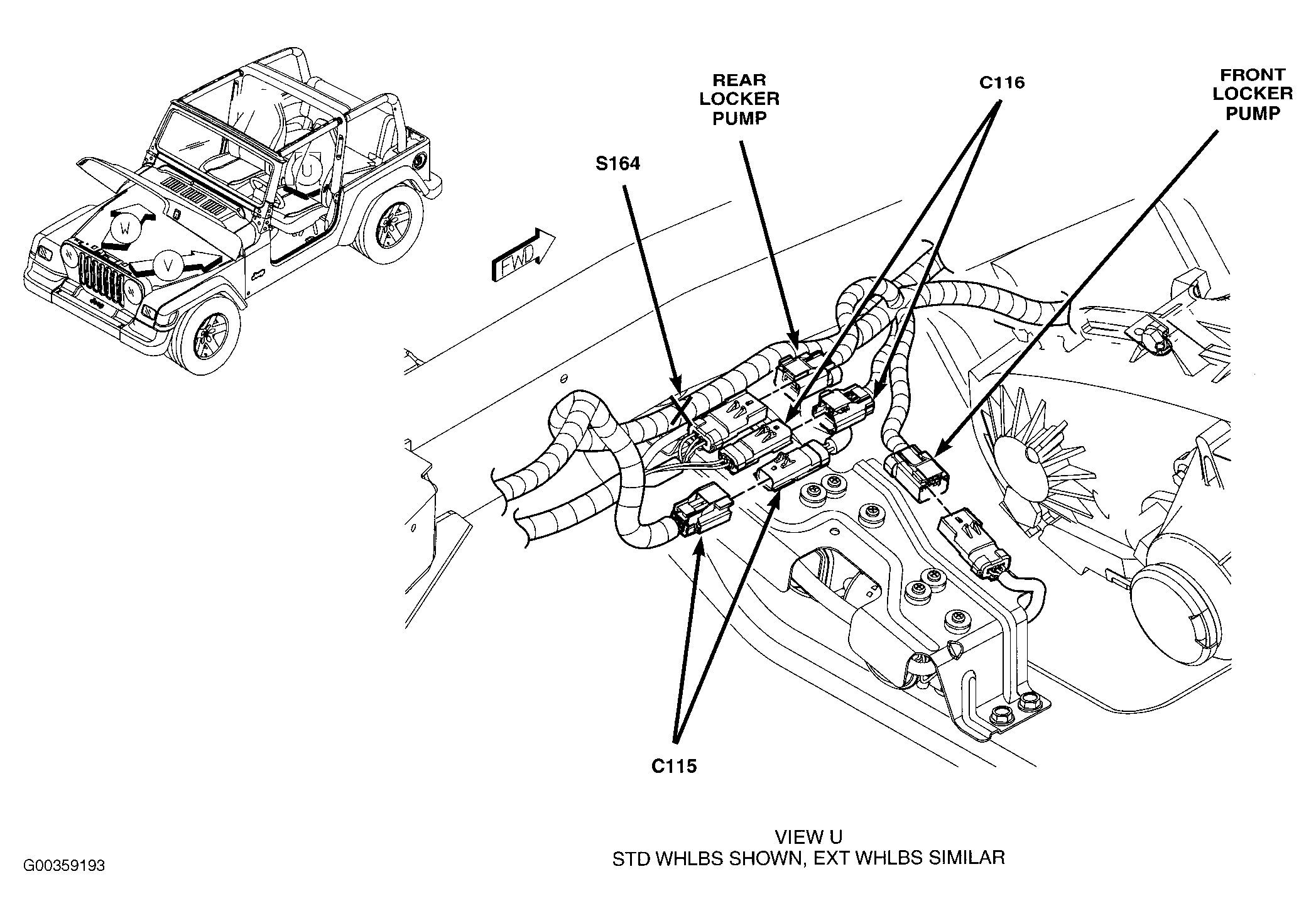

Fig 20: Transfer Case

G00359193

Courtesy of DAIMLERCHRYSLER CORP.

Fig 21: Front Locker Indicator Switch

G00258903

Courtesy of DAIMLERCHRYSLER CORP.

Fig 22: Rear Locker Indicator Switch

G00258902

Courtesy of DAIMLERCHRYSLER CORP.

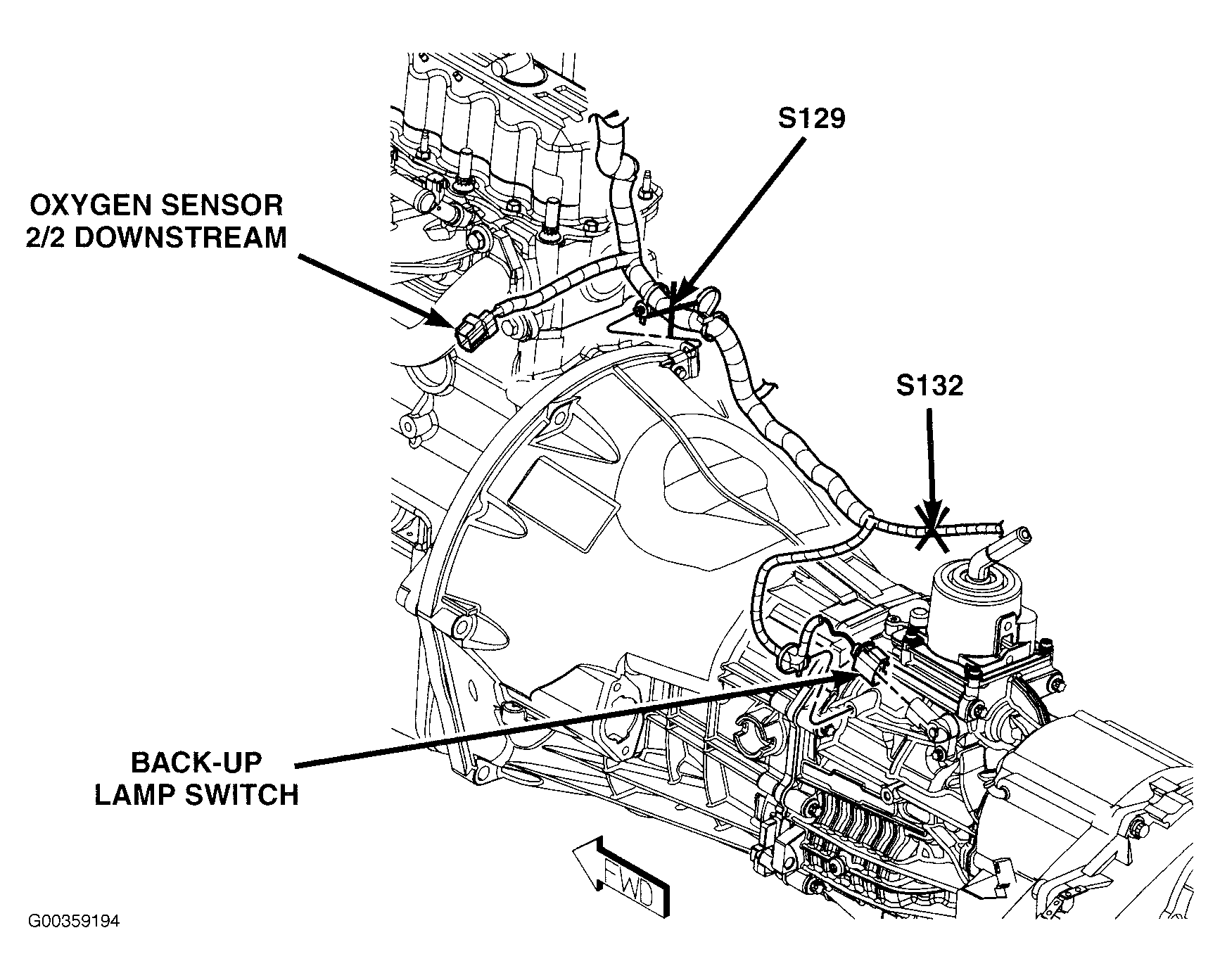

Fig 23: Manual Transmission (4.0L)

G00359194

Courtesy of DAIMLERCHRYSLER CORP.

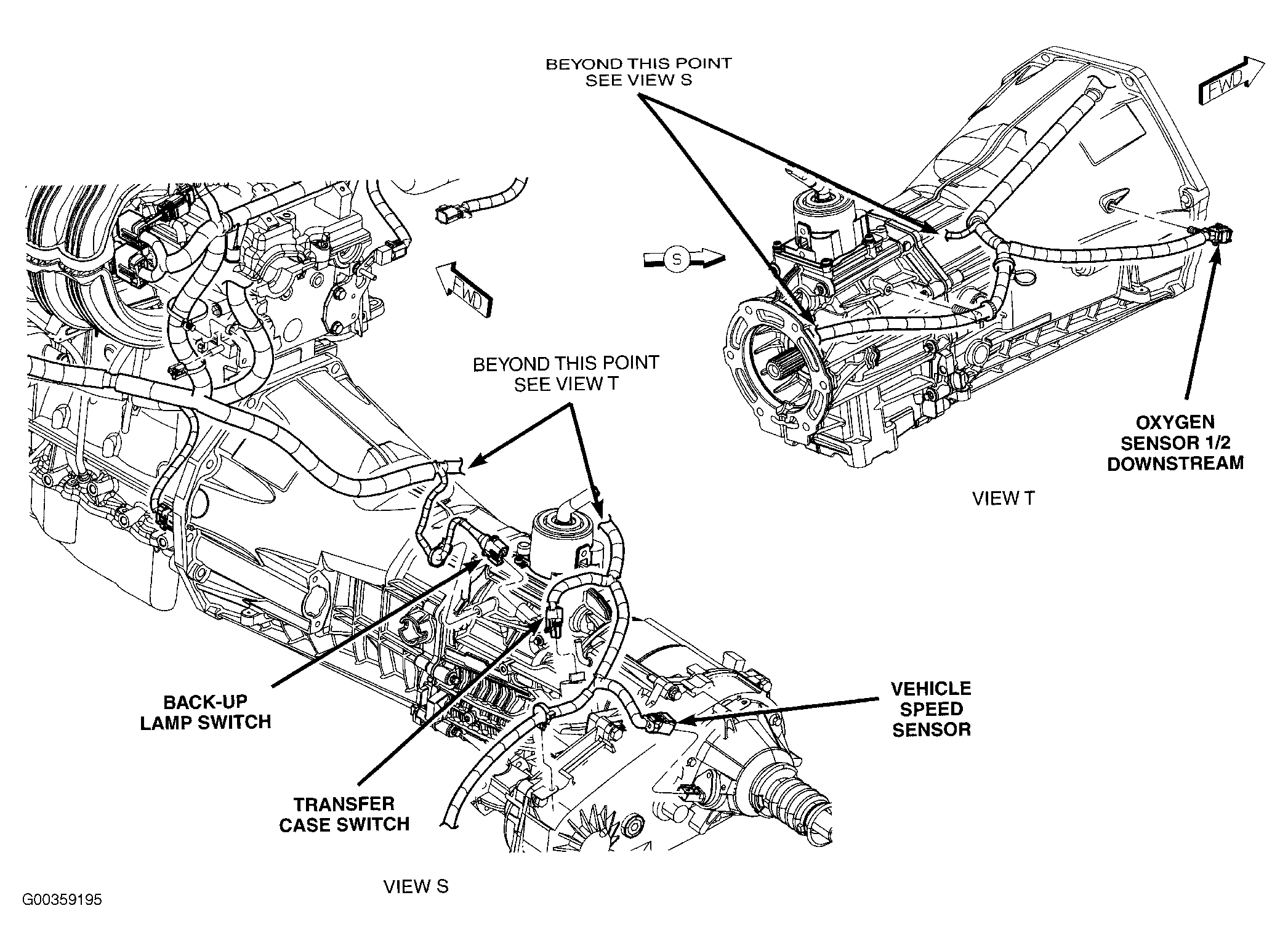

Fig 24: Manual Transmission (2.4L)

G00359195

Courtesy of DAIMLERCHRYSLER CORP.

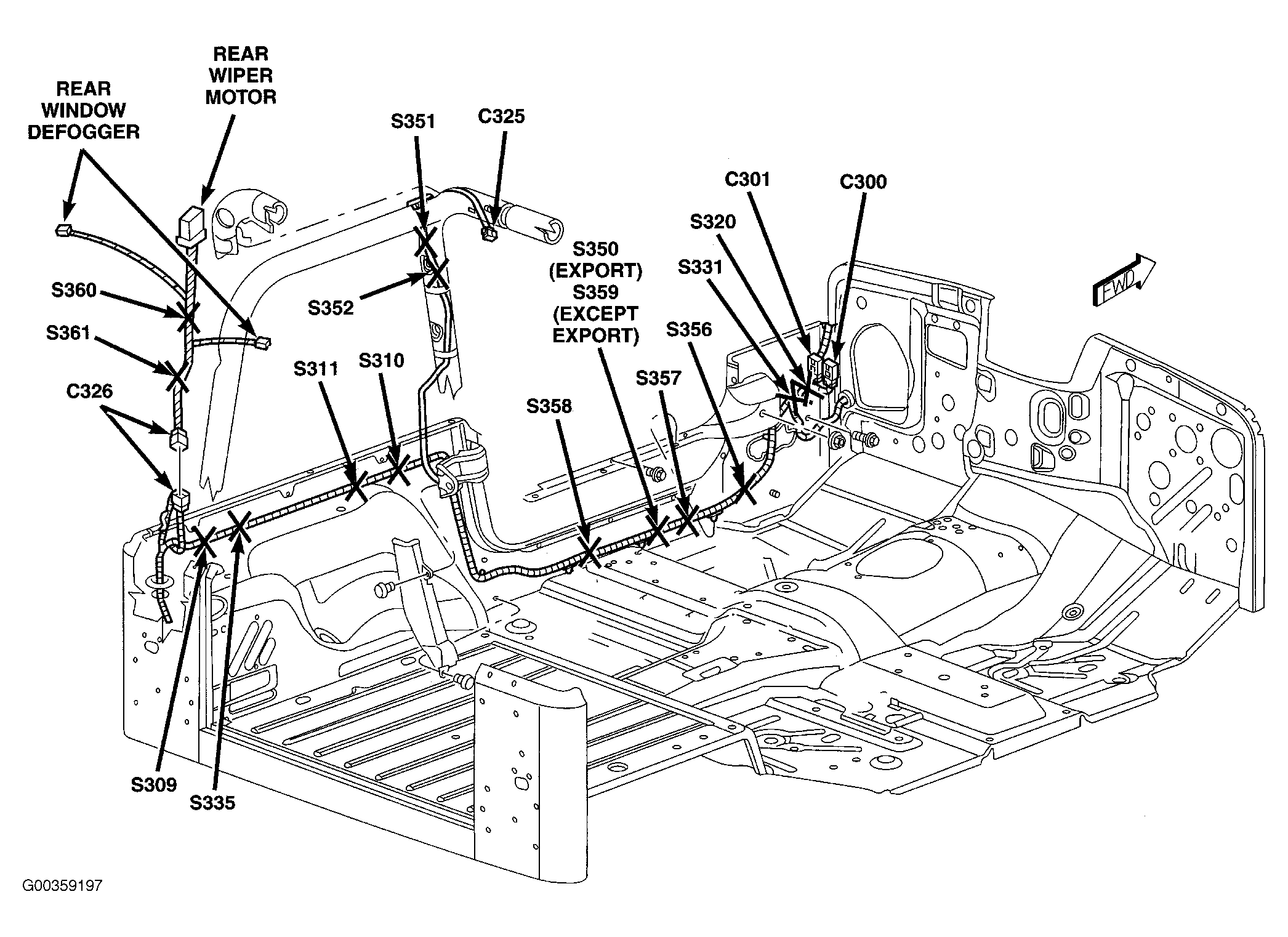

Fig 25: Body Harness

G00359197

Courtesy of DAIMLERCHRYSLER CORP.

Fig 26: Left Rear Of Chassis

G00258910

Courtesy of DAIMLERCHRYSLER CORP.

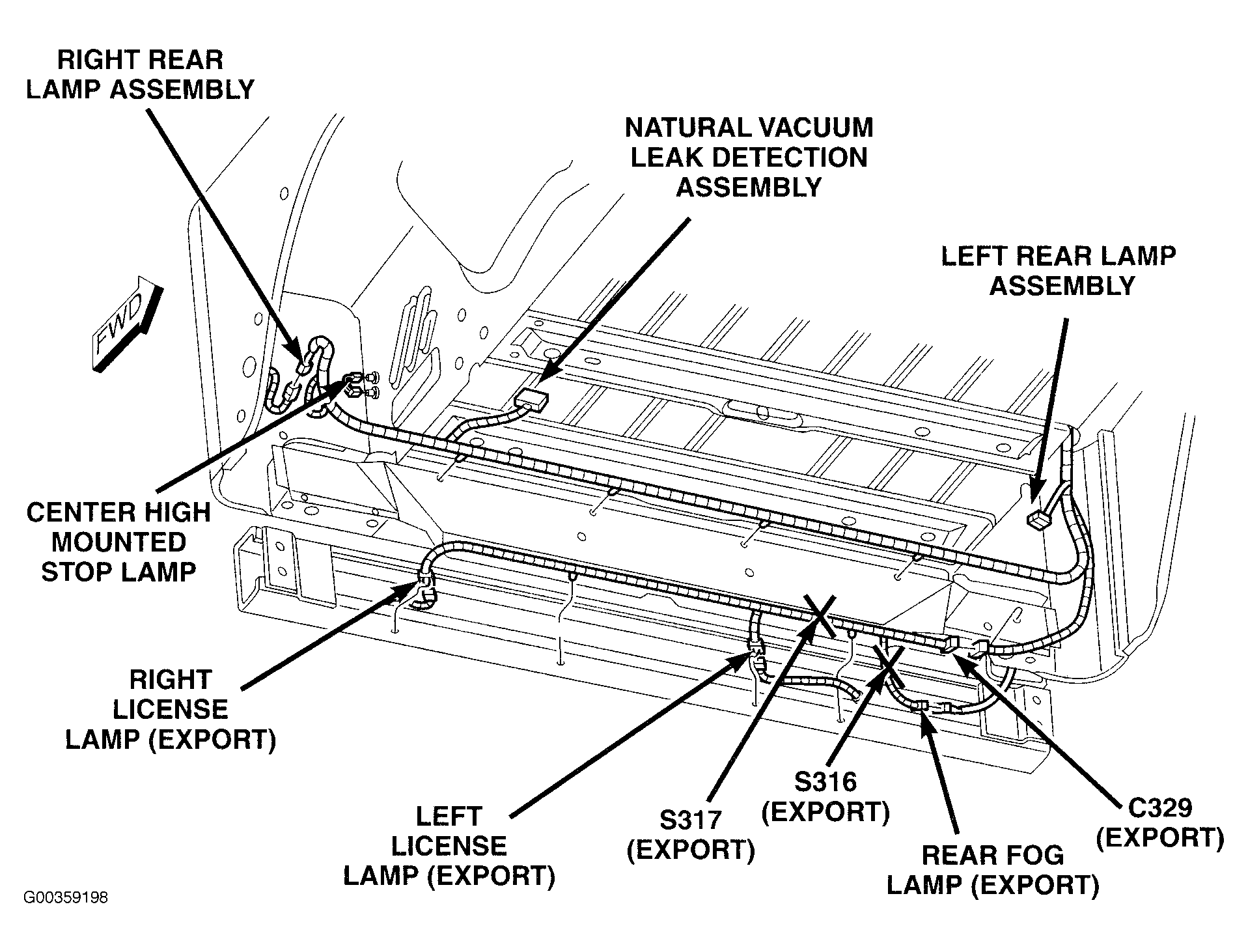

Fig 27: Rear Of Vehicle

G00359198

Courtesy of DAIMLERCHRYSLER CORP.

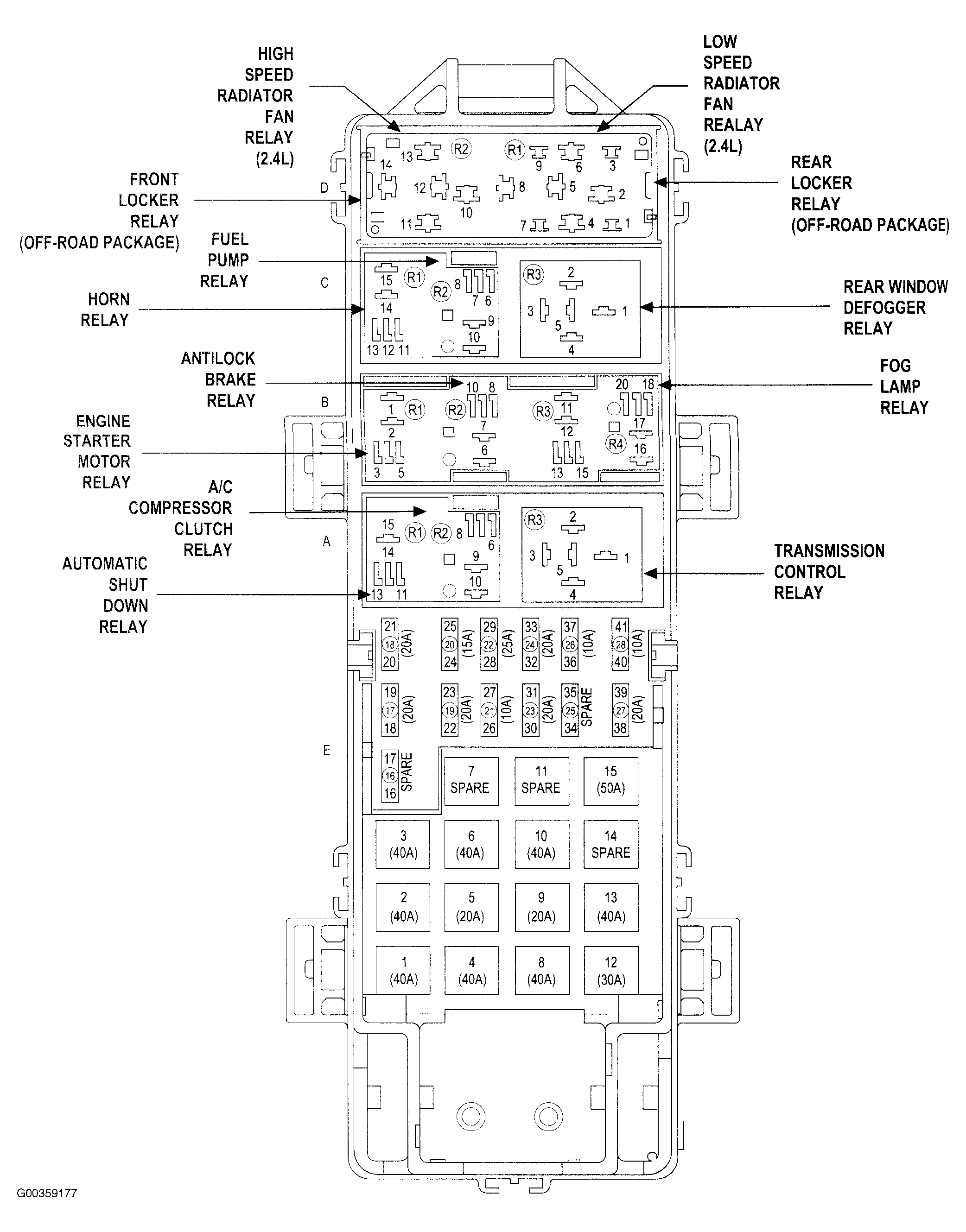

Fig 28: Power Distribution Center

G00359177

Courtesy of DAIMLERCHRYSLER CORP.

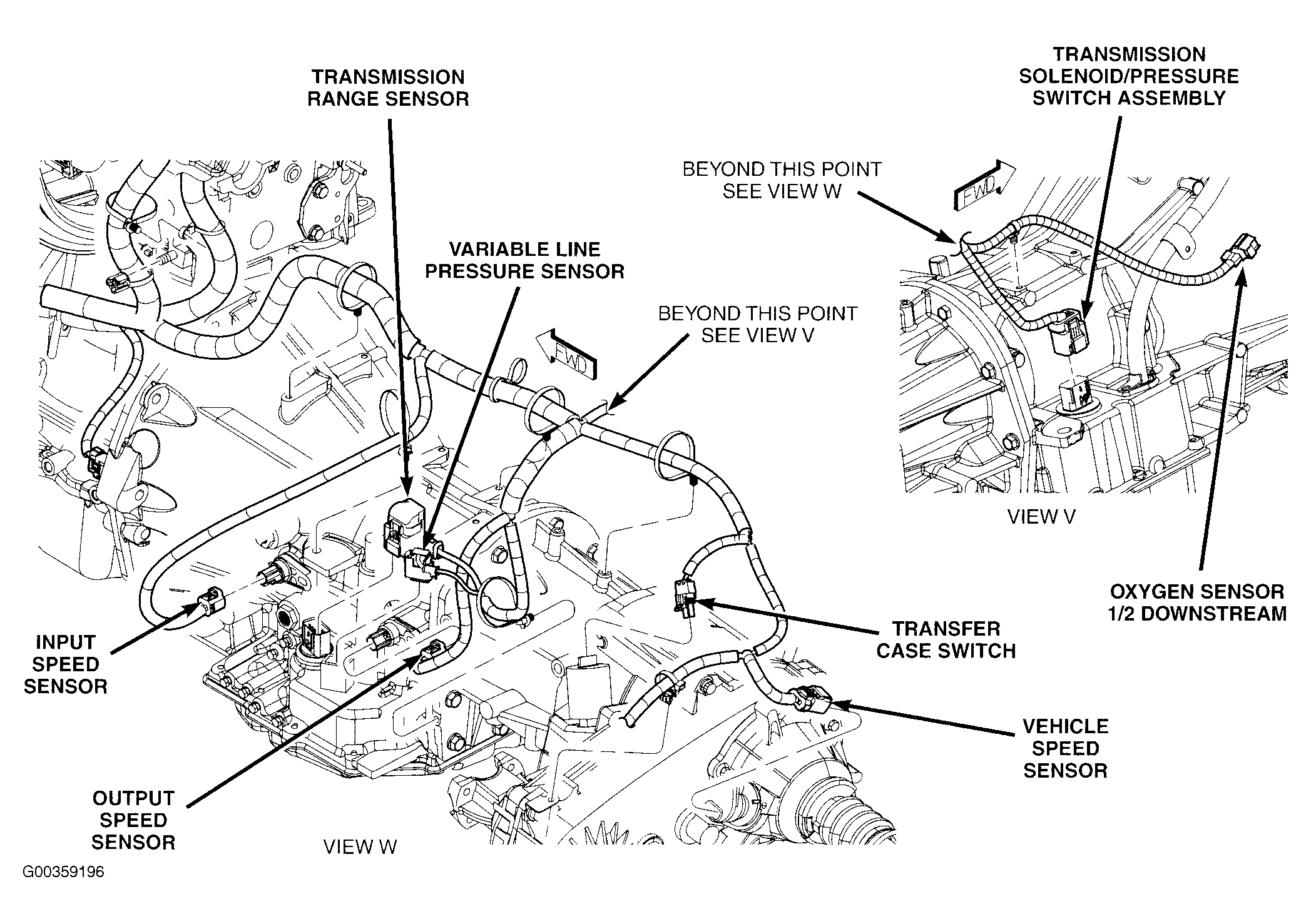

Fig 29: Automatic Transmission (2.4L)

G00359196

Courtesy of DAIMLERCHRYSLER CORP.
