Transmission Temperature Sensor Specifications

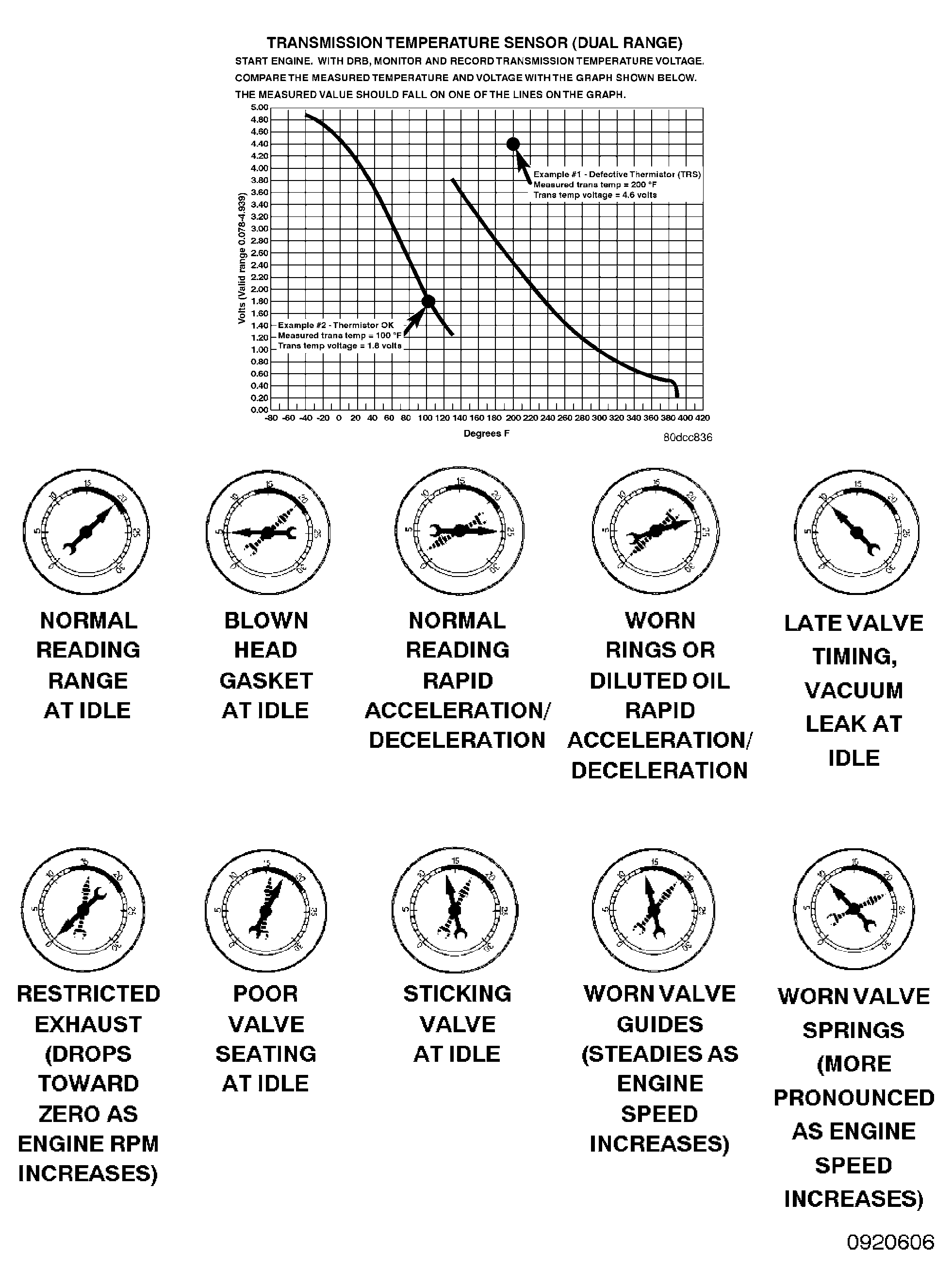

Fig 1: Transmission Temperature Sensor Graph

G04550646

Courtesy of DAIMLERCHRYSLER CORP.
