Power Distribution Center

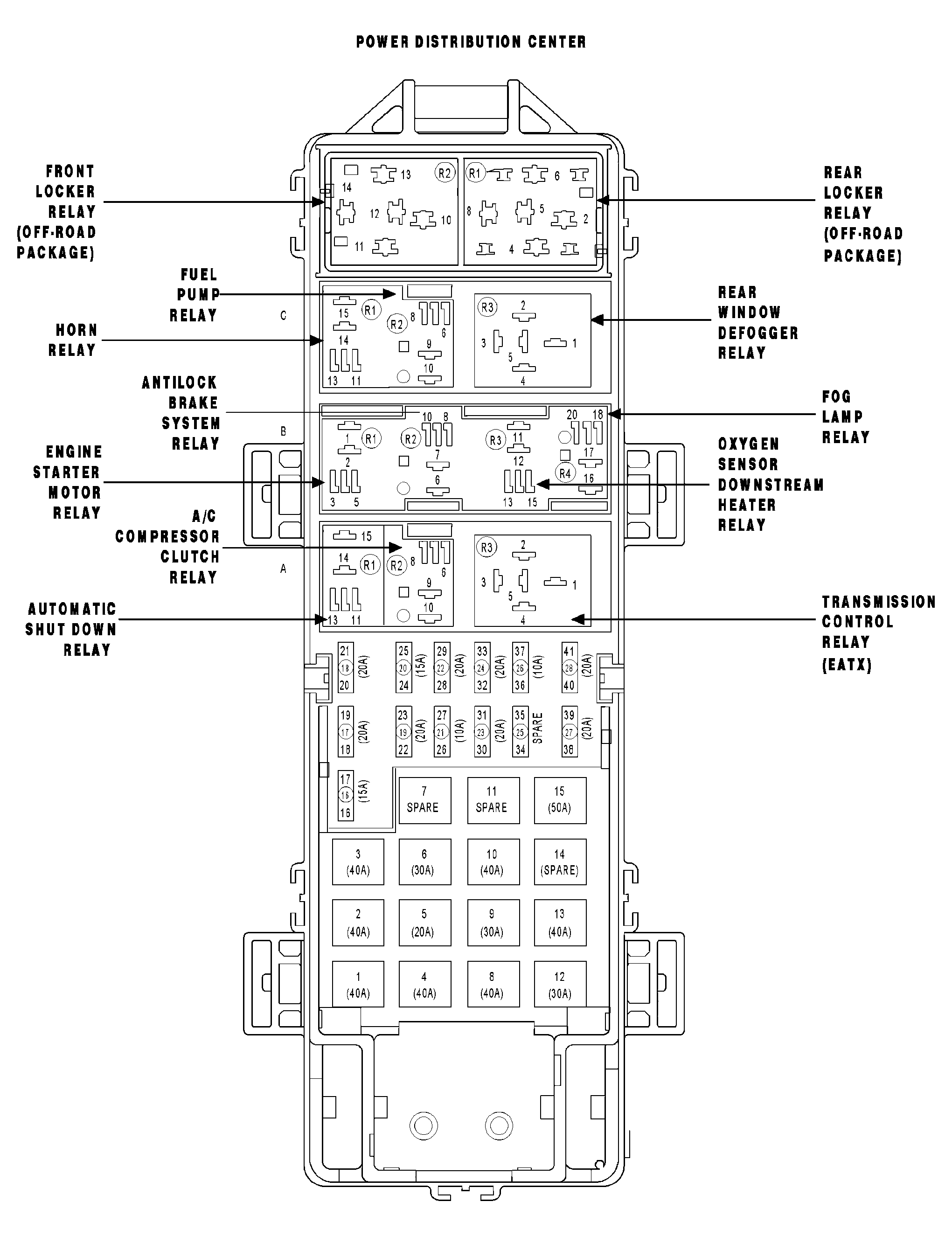

Fig 1: Power Distribution Center
G04550621Courtesy of DAIMLERCHRYSLER CORP.

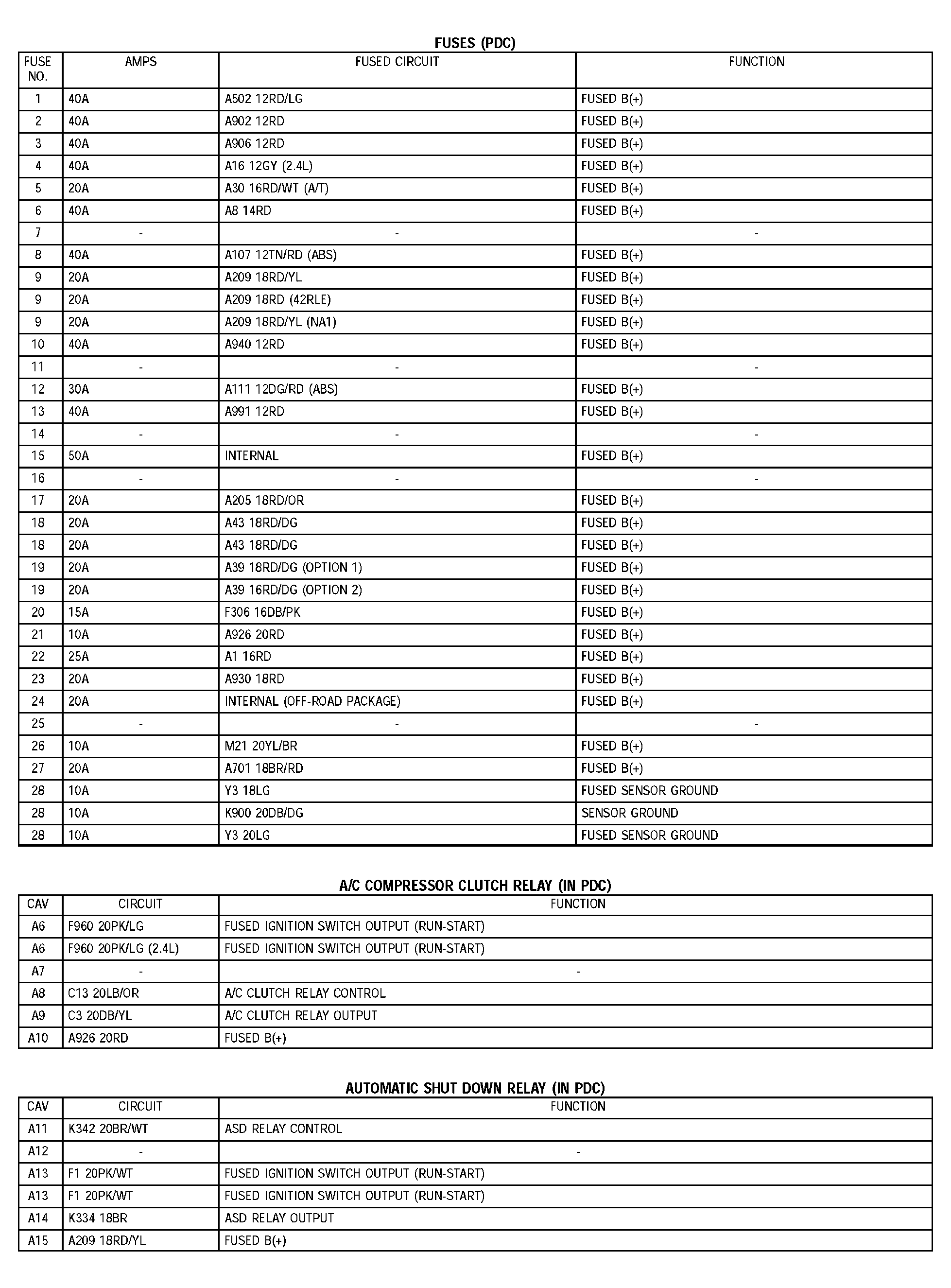

Fig 2: Power Distribution Center Fuses & Relays Chart (1 Of 2)
G04550622Courtesy of DAIMLERCHRYSLER CORP.

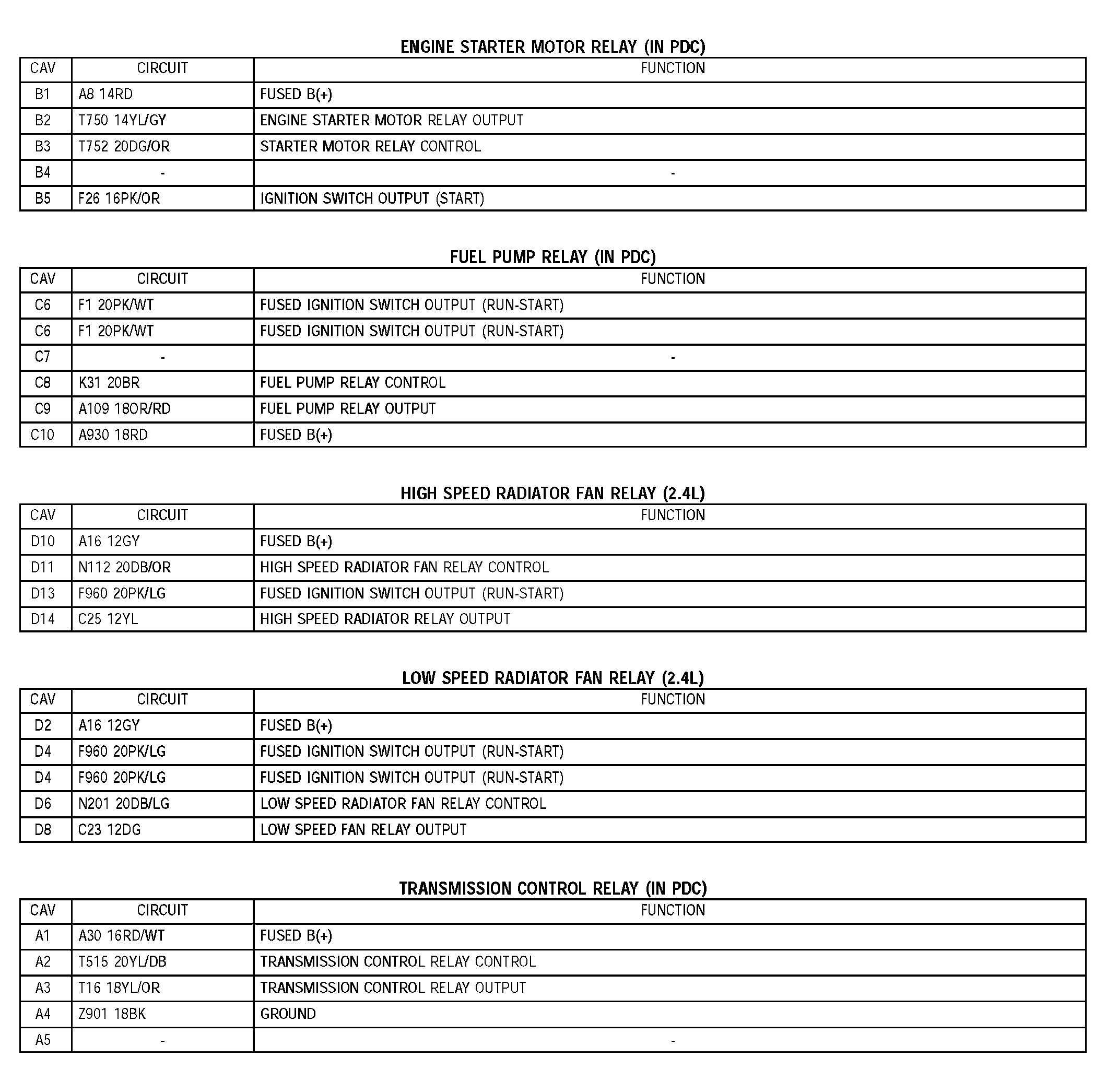

Fig 3: Power Distribution Center Fuses & Relays Chart (2 Of 2)
G04550623Courtesy of DAIMLERCHRYSLER CORP.
