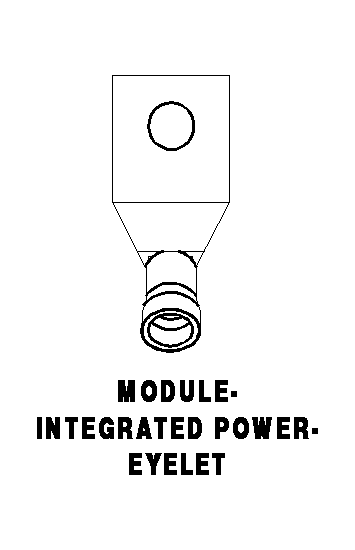

Integrated Power Module Connector End View

MODULE-INTEGRATED POWER-EYELET - 1 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A1 6RD	B(+)
1	A0 8RD	B(+)
1	A1 4RD (EXPORT/DIESEL)	B(+)
1	A0 6RD (EXPORT/DIESEL)	B(+)
