Module-Integrated Power: Removal

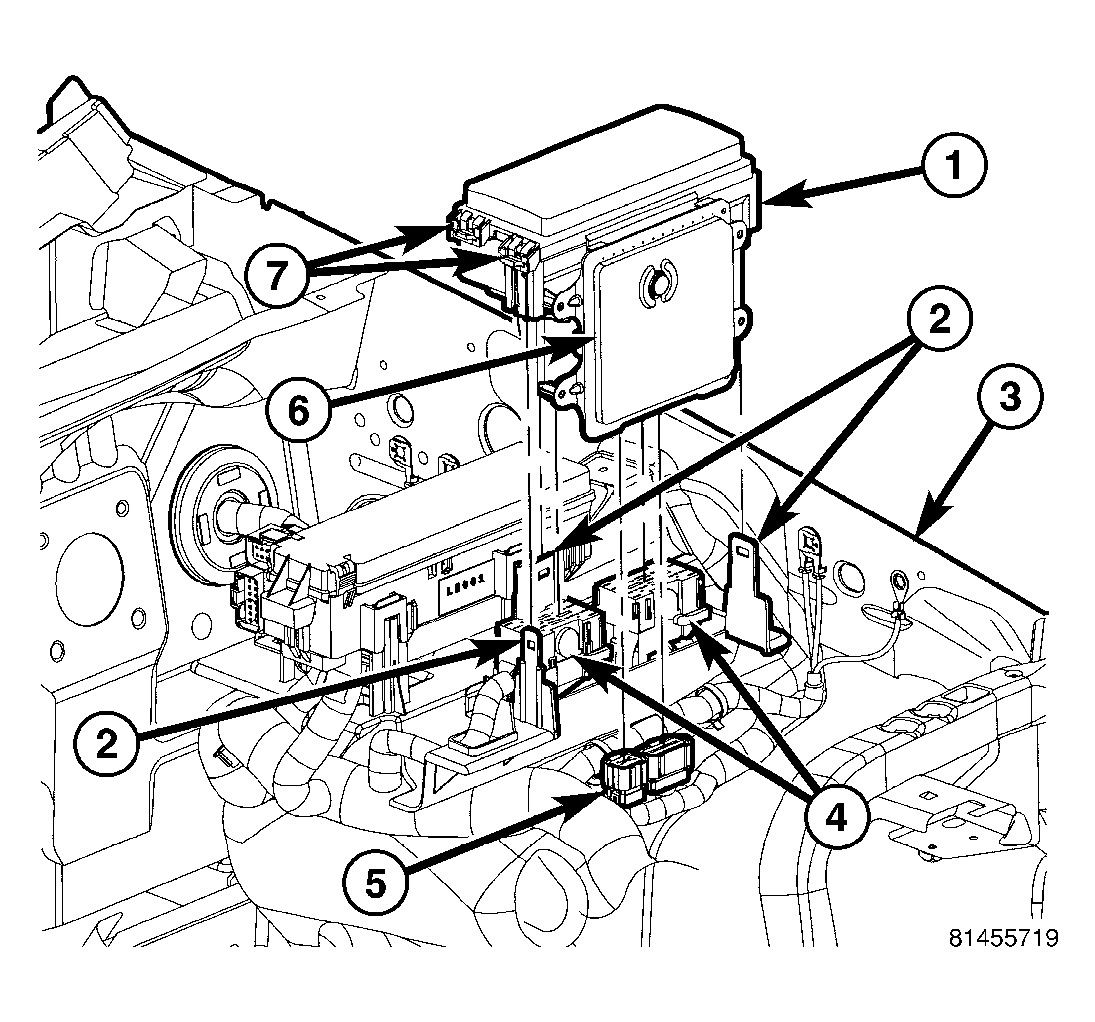

Fig 1: Removing/Installing IPM
GC0029596Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the Integrated Power Module (IPM) cover by pulling up on the cover tabs (7) and pivoting the cover outward.

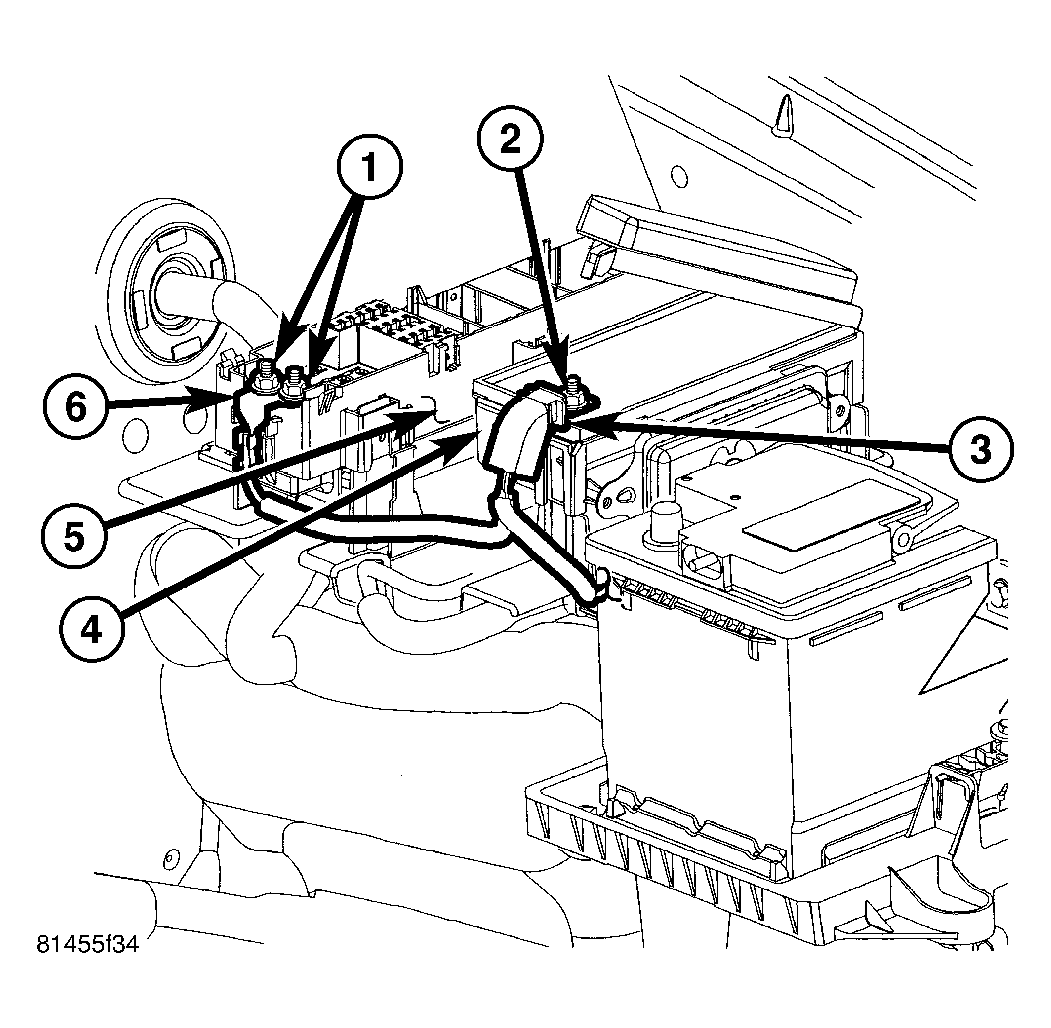

    Fig 2: Removing/Installing Battery Positive Cable
    GC0029597Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the nut (2) from the IPM B+ terminal stud.
  4. Remove the battery positive cable (3) from the IPM B+ terminal stud.
    Fig 3: Removing/Installing IPM
    GC0029596Courtesy of DAIMLERCHRYSLER CORP.
  5. Using a suitable flat bladed tool, depress the three retaining clips and lift the IPM (1) straight up off of the bracket tabs (2).
  6. Disconnect the two IPM connectors (4).
  7. Disconnect the two Front Control Module (FCM) connectors (5).
  8. Remove the IPM assembly from the vehicle.
