Module-Remote Compass: Removal

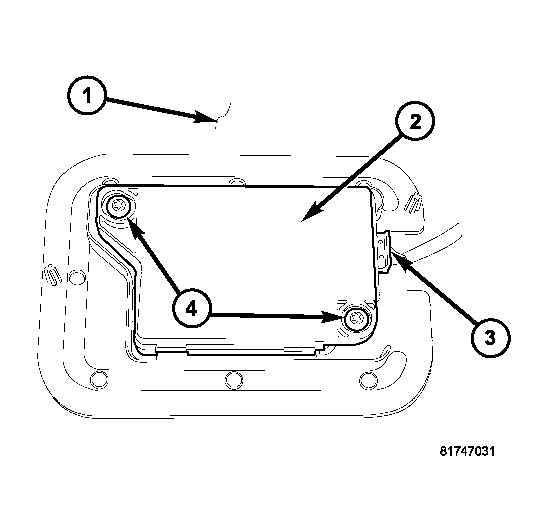

Fig 1: Identifying Remote Compass Module
GC0045540Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Partially remove the headliner (1) to gain access to the Remote Compass Module (RCM) (2). (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) for the appropriate procedure.
  3. Disconnect the RCM electrical connector (3).
  4. Remove the RCM retaining screws (4).
  5. Remove the RCM (2) from the vehicle.
