Sensor-Fuel Level Sending Unit: Installation

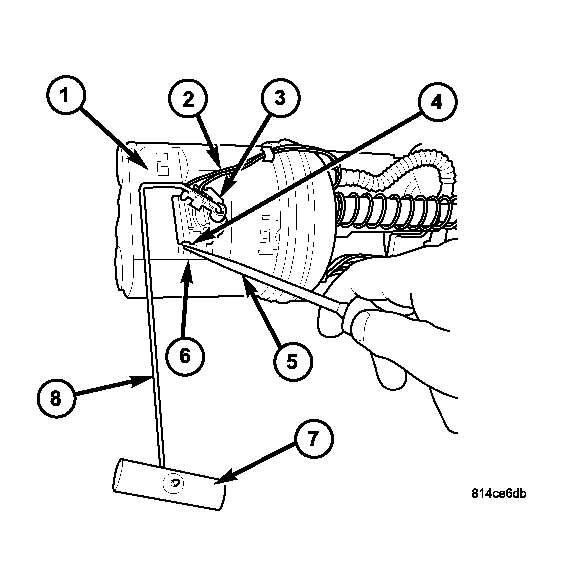

Fig 1: Fuel Level Sending Unit Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.

1. Noting the previously recorded pin positions, connect necessary wiring into electrical connectors, and into pump module.
2. Position sending unit (3) to pump module. Slide unit on mounting tracks (6) and snap into place.
3. Install fuel pump module. (Refer to FUEL SYSTEM/FUEL DELIVERY/FUEL PUMP MODULE - INSTALLATION) .
