Module/Frame Assembly

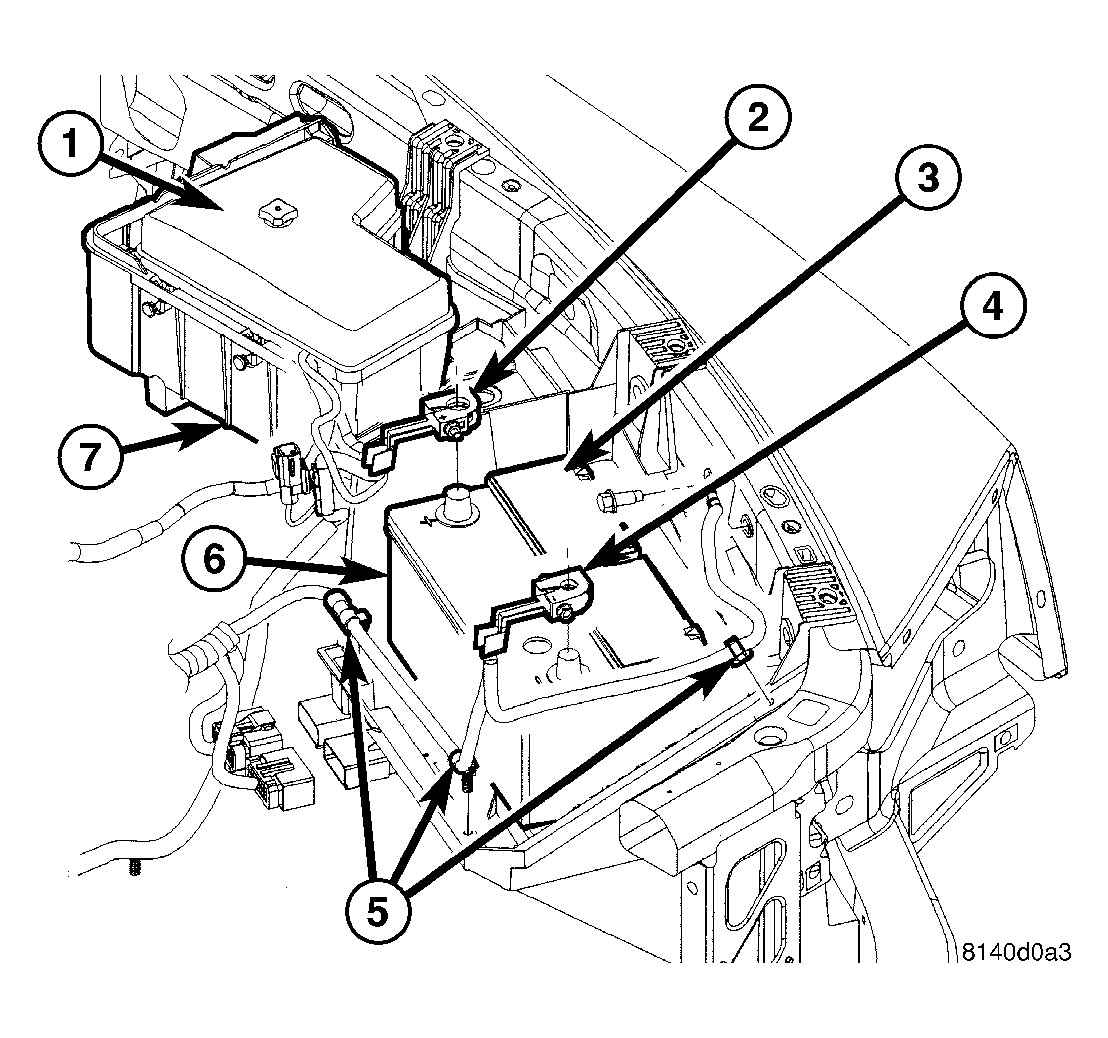

Fig 1: Locating Battery System Components
GC0018493Courtesy of CHRYSLER LLC
  1. Move glass panel to fully closed position.
  2. Disconnect and isolate negative battery cable (4).
  3. Remove control switch, refer to REMOVAL .
  4. Remove headliner. See REMOVAL .
    Fig 2: ELECTRICAL CONNECTOR
    GC0055794Courtesy of CHRYSLER LLC
  5. Disconnect the electrical connector.
    Fig 3: 07 MK REAR HOSE 1
    GC0055791Courtesy of CHRYSLER LLC
  6. Disconnect drain tubes (2) from sunroof housing (1).
    Fig 4: 07 MK ASSEMBLY
    GC0055795Courtesy of CHRYSLER LLC
  7. Remove two module side bracket (4) bolts (6) and loosen the six remaining fasteners (3).
  8. Remove the six (3) fasteners attaching sunroof module assembly (1) to roof panel.
  9. Remove the glass panel. See REMOVAL .
  10. Remove the sunshade. See REMOVAL .
  11. Remove the drive motor. See REMOVAL .
  12. Remove the wire harness.
  13. Remove the trough guides. See REMOVAL .
