Transmission Control Module

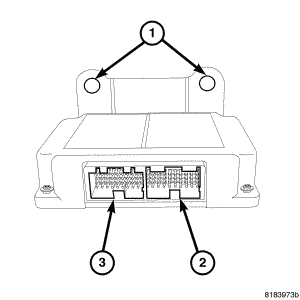

Fig 1: TCM OUT
GC0053319Courtesy of CHRYSLER LLC
  1. Install TCM mounting bracket holes (1) over the two studs on the bulkhead.

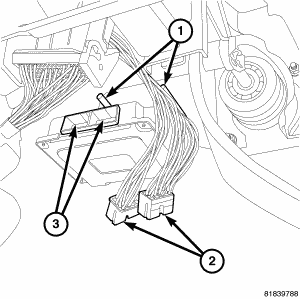

    Fig 2: TCM UNPLUGGED
    GC0053318Courtesy of CHRYSLER LLC
  2. Install the two nuts to mounting studs (1) on the bulkhead and tighten to 15 N.m (130 in. lbs.).
  3. Plug in electrical connectors (2) to TCM (3).
NOTE: If a new TCM is installed a learn procedure must be performed.
