Fuel Injector

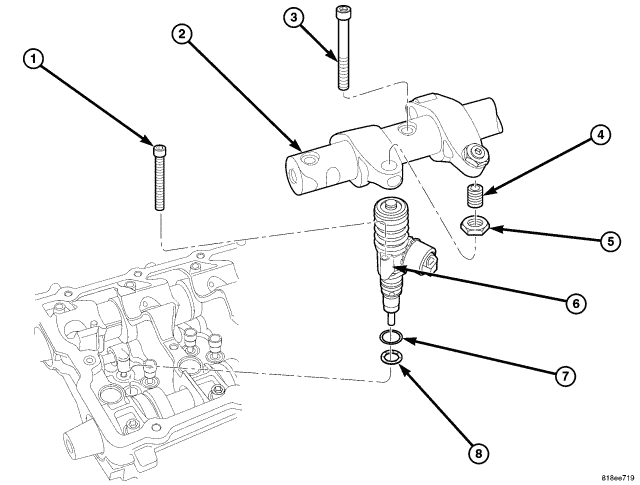

Fig 1: Exploded View Of Fuel Injector
GC0055515Courtesy of CHRYSLER LLC

There are individual unit injectors (6) for all four cylinders. These unit injectors are used to spray fuel into the combustion chamber. They also pressurize the fuel and meter the fuel.
