Master Cylinder-RHD
Courtesy of CHRYSLER LLC

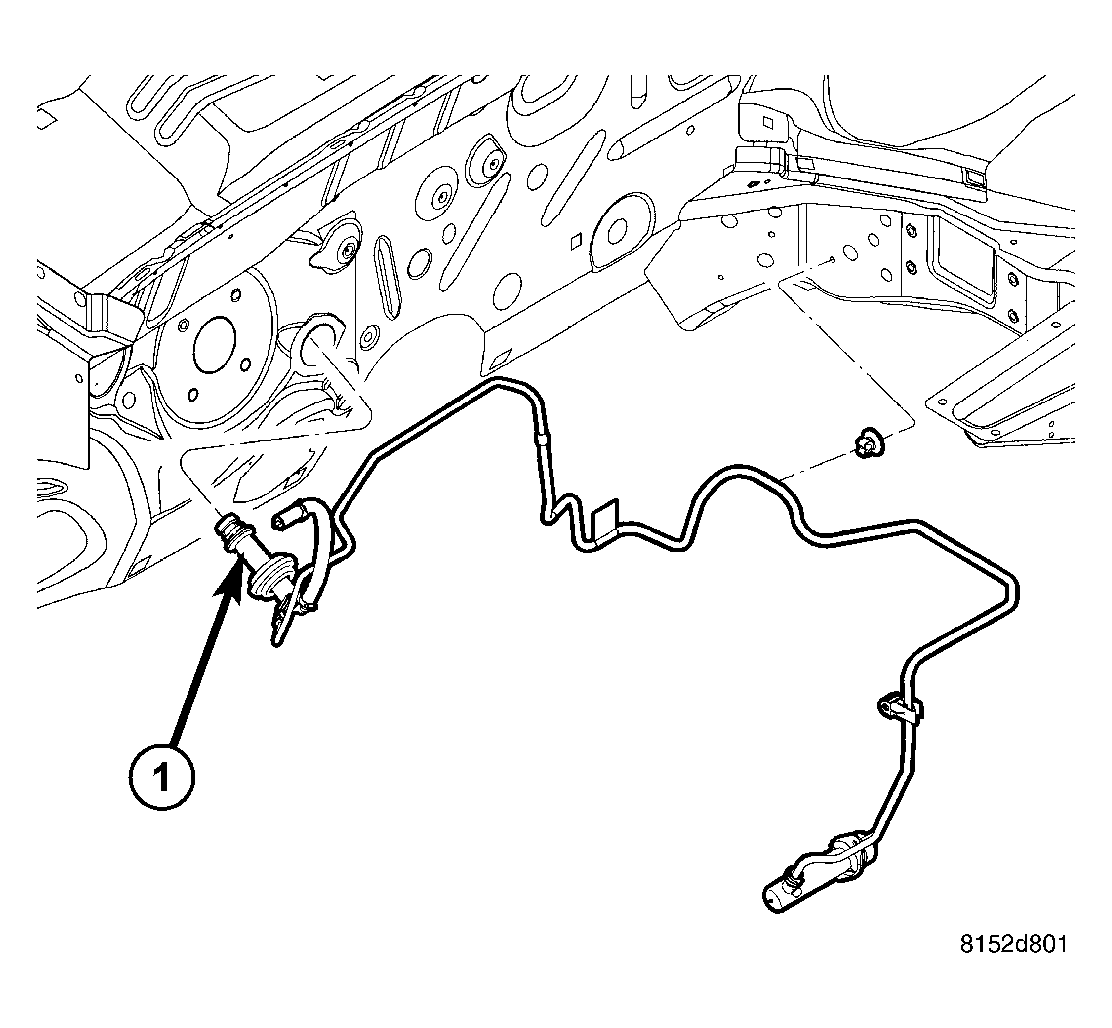

The clutch master cylinder (1) mounts to the clutch pedal and consists of a piston and cylinder housing, an actuating push rod, and an interconnecting hydraulic tube. Fluid is supplied to the clutch master cylinder via the brake master cylinder reservoir.
