Master Cylinder-RHD

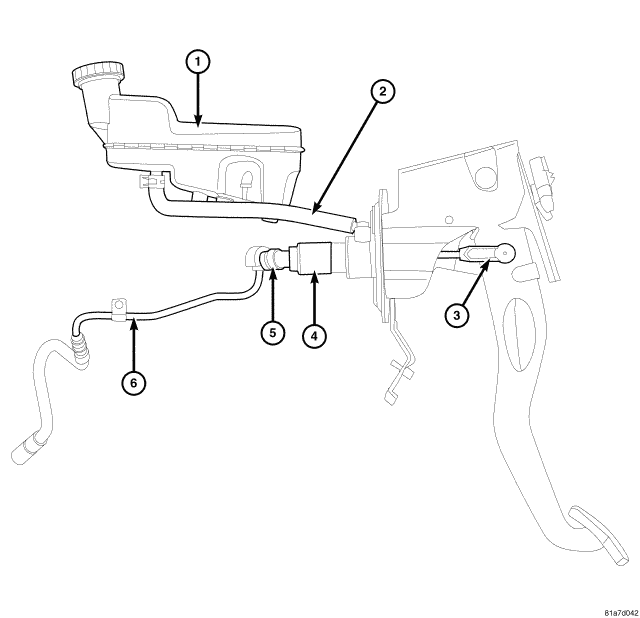

Courtesy of CHRYSLER LLC
- Install clutch master cylinder (1).
- Insert tube into master cylinder port and install retaining clip (5).
- Connect clutch master cylinder supply hose (2) to brake master cylinder reservoir (1).
- Verify that brake master cylinder reservoir is full and cap is off.
- Position clutch master cylinder body vertically, with pushrod pointing down, for about ten seconds to purge air trapped from end of cylinder.
- Install clutch master cylinder body to dash panel and 1/4 turn to secure.
- Connect clutch master cylinder rod to clutch pedal pin. An audible "click" should be heard.
- Install lower instrument panel bezel.

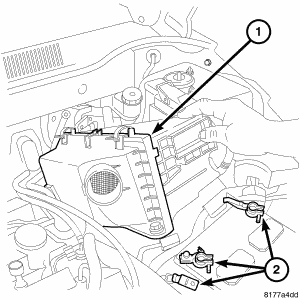

Courtesy of CHRYSLER LLC
- Connect battery negative cable.
- Install air cleaner assembly (1).
- Verify that brake master cylinder reservoir is full. Top off with DOT 3 brake fluid if necessary.
- Bleed clutch system. See STANDARD PROCEDURE .
- Actuate clutch pedal a minimum of fifteen times to allow any air ingested into the system to vent to the master cylinder reservoir. If residual air becomes trapped in the system, it is necessary to bleed the clutch hydraulic system.
- Verify proper clutch release system operation.
