Master Cylinder-RHD

Fig 1: AIR CLEANER ASSEMBLY

Courtesy of CHRYSLER LLC

Remove the engine cover.
Remove air cleaner assembly (1).
Disconnect battery negative cable.
CAUTION: Brake fluid will damage painted surfaces. If brake fluid is spilled on any painted surfaces, wash it off immediately with water.
Disconnect hydraulic supply tube to clutch master cylinder. To completely drain clutch master cylinder and tubing, remove brake master cylinder cap.
Disconnect hydraulic tube and drain fluid into suitable container. Lower vehicle.
Remove instrument panel bezel.
Disconnect clutch master cylinder pushrod from clutch pedal.

Fig 2: MASTER CYLINDER
Courtesy of CHRYSLER LLC
Disconnect clutch master cylinder supply line from brake master cylinder reservoir (6), Cap off or collect reservoir fluid spillage.

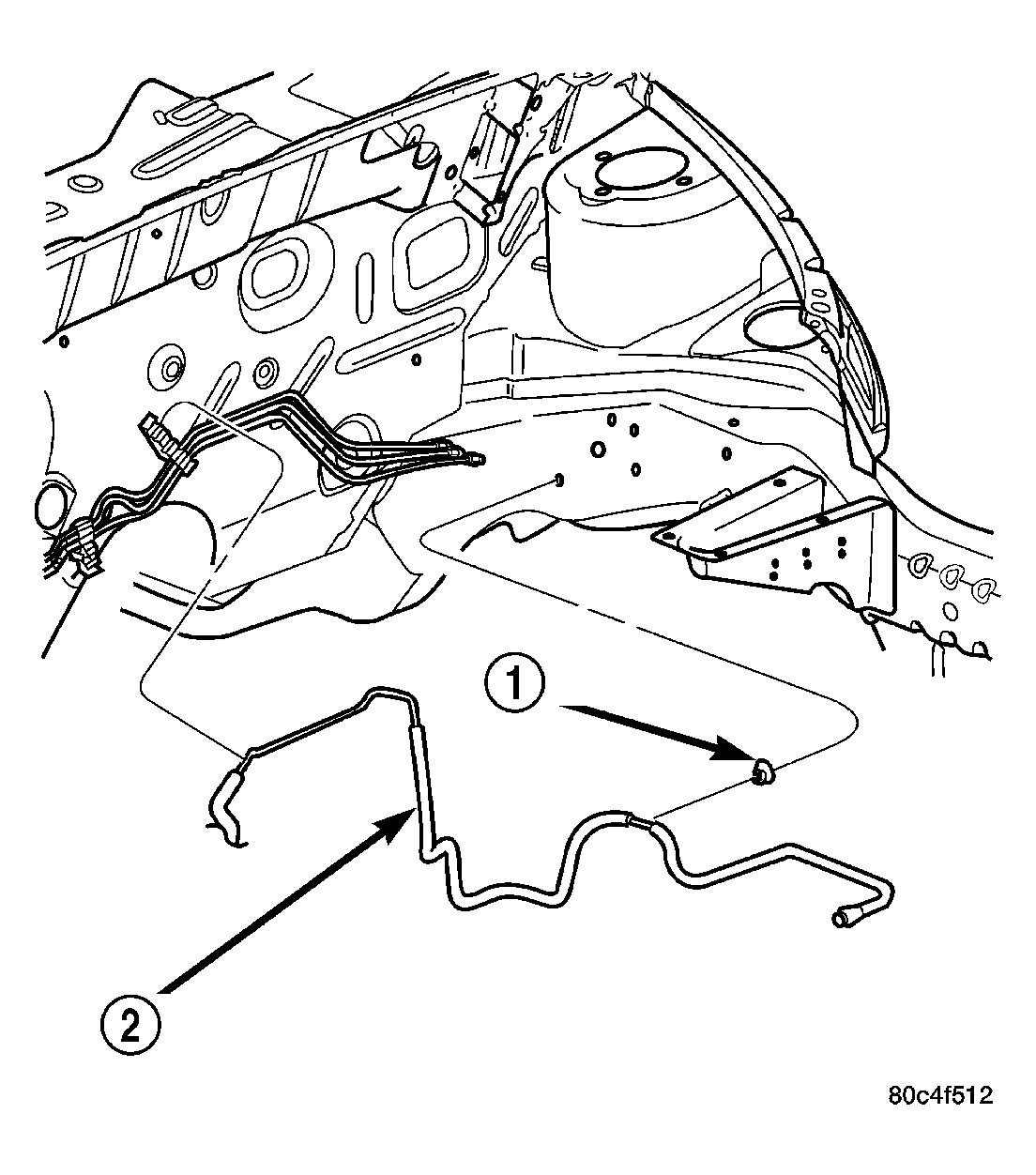

Fig 3: Master Cylinder Pipe at Left Rail
Courtesy of CHRYSLER LLC

1 - RETAINER

2 - MASTER CYLINDER PIPE
Remove hydraulic tube from left rail retainer.
CAUTION: Use care when removing clutch master cylinder from engine compartment. Aggressive handling can result in a damaged hydraulic tube and improper clutch release operation upon reassembly.
Release master cylinder by rotating to disengage from pedal bracket assembly.
CAUTION: Use care when removing clutch master cylinder from engine compartment. Aggressive handling can result in a damaged hydraulic tube and improper clutch release operation upon reassembly.

CAUTION: Brake fluid will damage painted surfaces. If brake fluid is spilled on any painted surfaces, wash it off immediately with water.

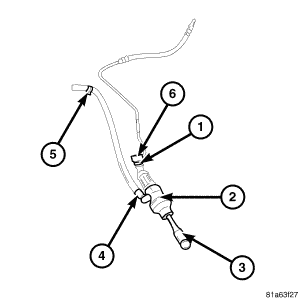

Fig 4: MASTER CYLINDER
Courtesy of CHRYSLER LLC
Remove master cylinder assembly (2) from mounting position and carefully work hydraulic pipe from out of engine compartment.
