Compass Module Connector End View

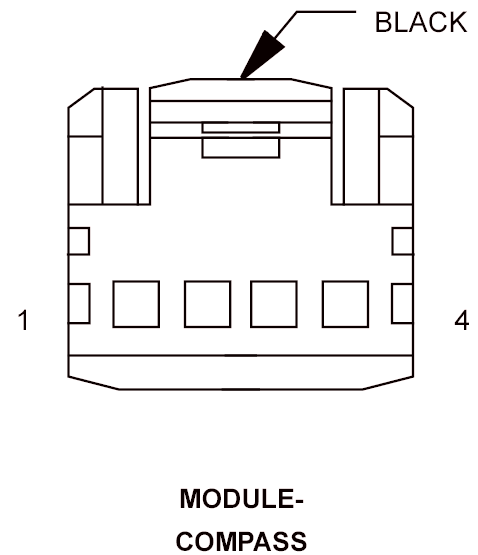

MODULE-COMPASS - BLACK 4-WAY

GJK780156Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 D506 20WT/DG LIN BUS
3 Z916 20BK GROUND
4 F921 20PK/YL FUSED RUN RELAY OUTPUT
