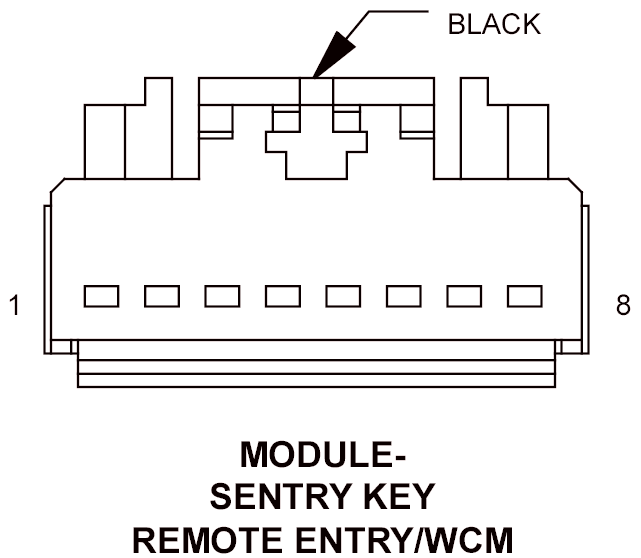

Sentry Key Remote Entry Module (Wireless Control Module) Connector End View
MODULE-SENTRY KEY REMOTE ENTRY/WCM - BLACK 8-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G20 20VT/BR |
IGNITION SWITCH SENSE |
| 2 |
- |
- |
| 3 |
F20 20PK/WT |
IGNITION SWITCH OUTPUT (RUN-START) |
| 4 |
Z914 18BK |
GROUND |
| 5 |
A412 18RD |
FUSED B(+) (I.O.D.) |
| 6 |
D65 20WT/LG |
CAN C BUS (+) |
| 7 |
D64 20WT/LB |
CAN C BUS (-) |
| 8 |
- |
- |
