Ignition Switch: Installation: Switch-Ignition

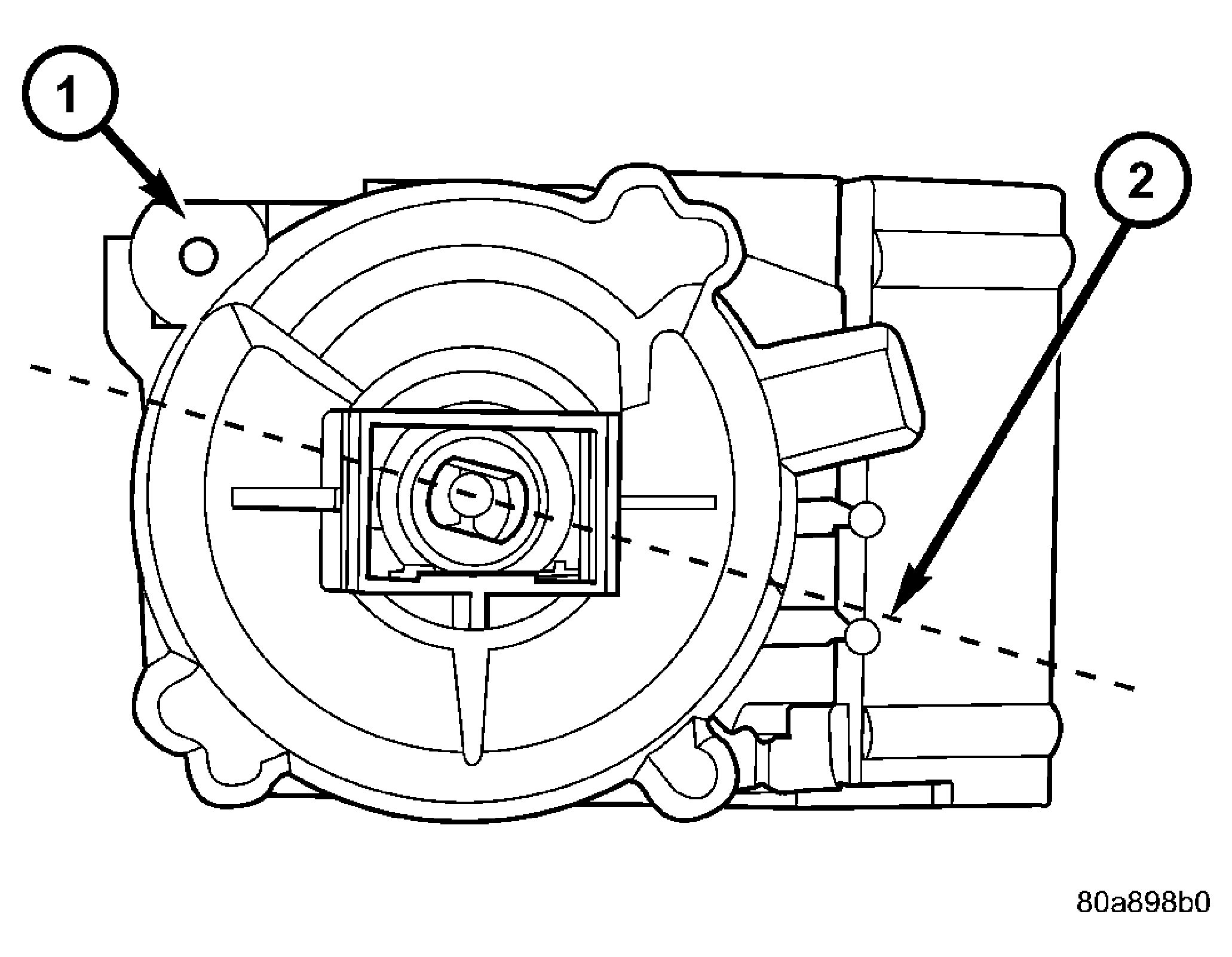

Fig 1: Ignition Switch On Position

Courtesy of CHRYSLER LLC

1. Before installing ignition switch (1), rotate the slot in the switch to the ON position (2).

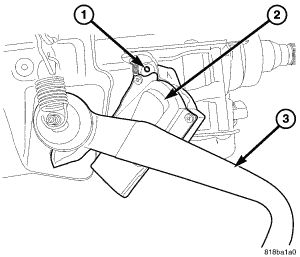

   Fig 2: Ignition Switch Screw

   Courtesy of CHRYSLER LLC
   NOTE: Tilt arm (3) must be moved to allow installation of the switch.
2. Position the switch (2) to the column and install tamper proof screw (1). Tighten screw to 2 N.m (17 in. lbs.).
3. Connect the electrical connector to rear of ignition switch. Make sure that locking tab is fully seated into wiring connector.
   NOTE: The ignition key must be in the key cylinder for cylinder installation. The key cylinder must be aligned with the ignition switch for installation.
4. Install the lock cylinder. See INSTALLATION .
5. Test the operation of the lock cylinder for smooth rotating.
6. Install the multi-function switch.
7. Install steering column lower cover.
