Generator 3.8L: Removal: Generator

WARNING: Disconnect negative cable from battery before removing battery output wire (B+ wire) from generator. Failure to do so can result in injury or damage to electrical system.

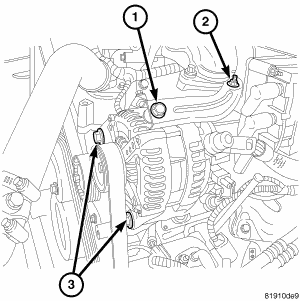

Fig 1: Identifying Generator Mounting 3.8L
GC0063878Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable at battery.
  2. Remove generator drive belt. refer to COOLING for procedure.
  3. Remove generator mounting bolts (1) and (3). Remove nut (2),

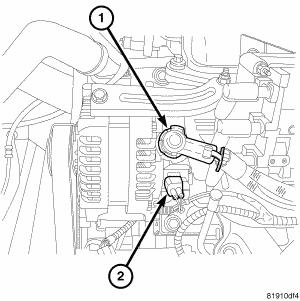

    Fig 2: Identifying Generator Electrical Connectors 3.8L
    GC0063879Courtesy of CHRYSLER LLC
  4. Unsnap plastic cover (1) from B+ terminal.
  5. Remove B+ cable output terminal mounting nut. Disconnect terminal from generator.
  6. Disconnect field wire connector (2) at rear of generator by pushing on connector tab.
  7. Remove generator from vehicle.
