3.7L Engine

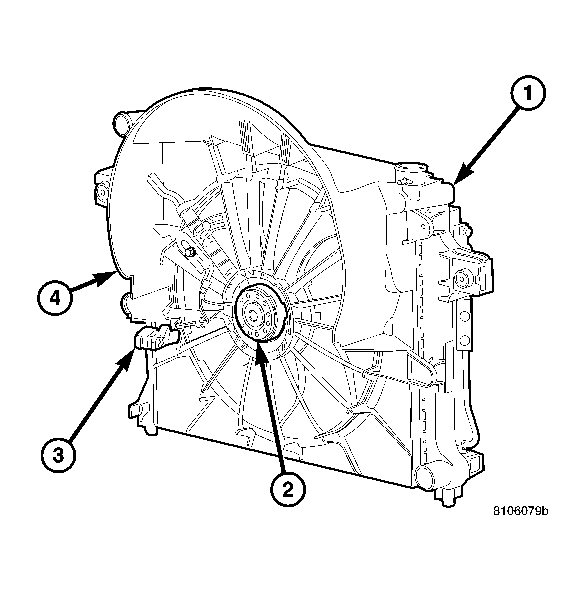

Fig 1: Radiator Cooling Fan - Electric

Courtesy of CHRYSLER LLC

1 - RADIATOR

2 - ELECTRIC COOLING FAN MOTOR

3 - COOLING FAN ELECTRICAL CONNECTOR

4 - FAN SHROUD

The radiator cooling fan used on the 3.7L engine is an electrical fan and is integral to the fan shroud.
