DTCS P050B To P0601
>>
P0579-Speed Control Switch 1 Performance
>>
Circuit Schematic
Circuit Schematic

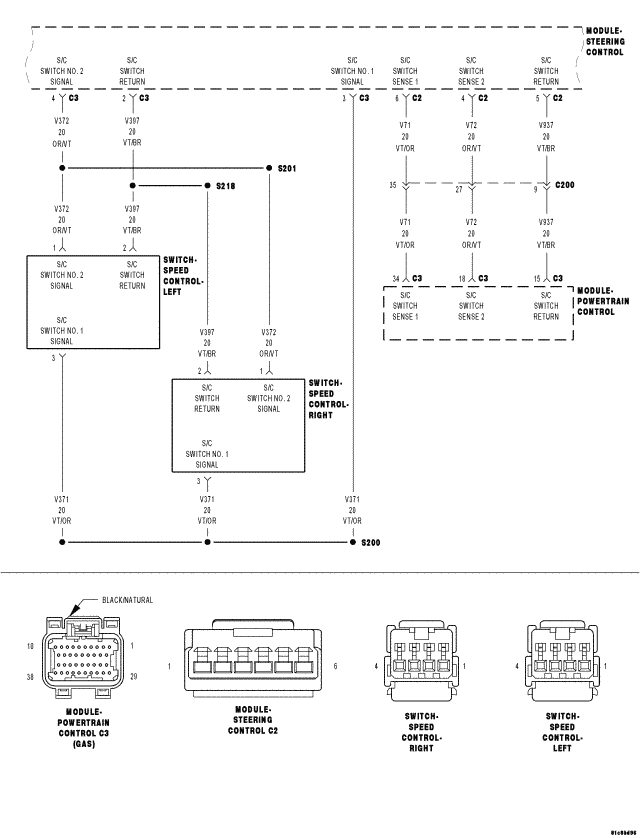

Fig 1: Speed Control Switch Circuit Schematic
Courtesy of CHRYSLER LLC
