Integrated Power Module Connector End View

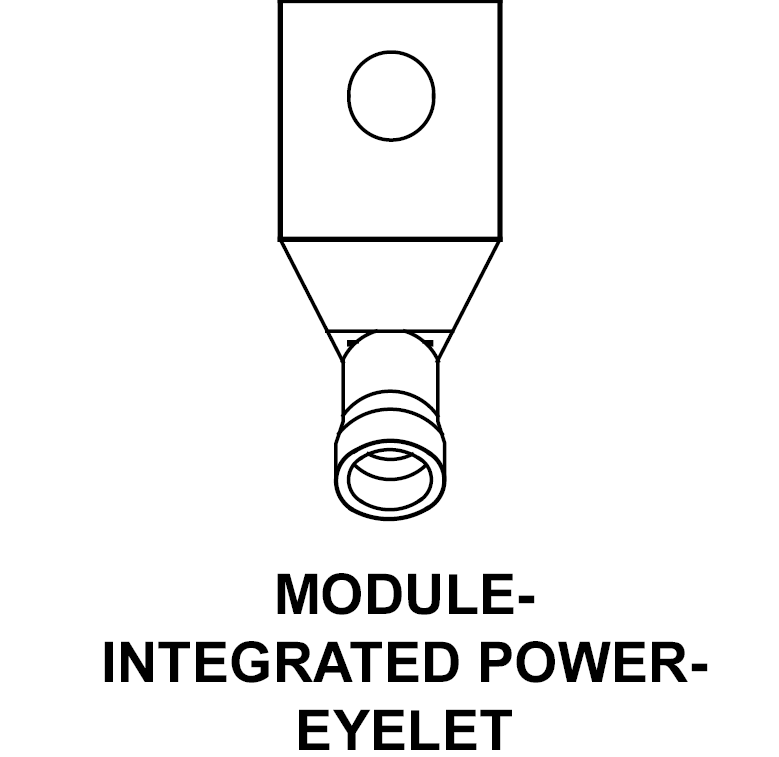

MODULE-INTEGRATED POWER-EYELET - 1-WAY

GXK780237Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A1 4RD B(+)
1 A0 6RD B(+)
