Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

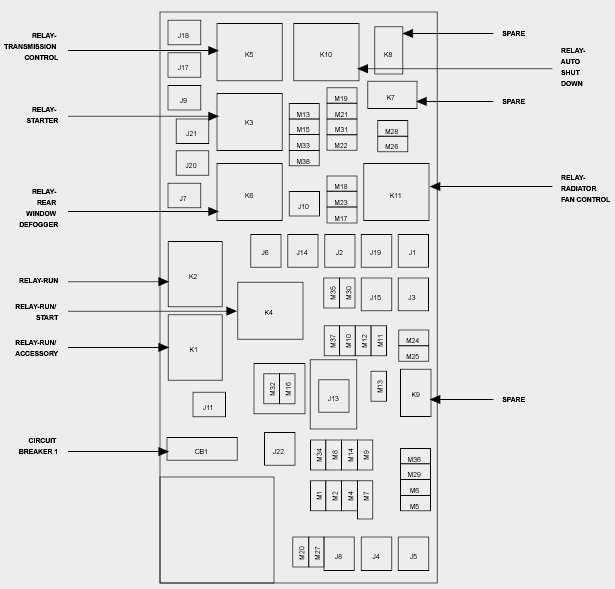

Fig 1: Totally Integrated Power Module

G00458211

Courtesy of CHRYSLER LLC

Fig 2: Right Front Of Engine Compartment

G00458212

Courtesy of CHRYSLER LLC

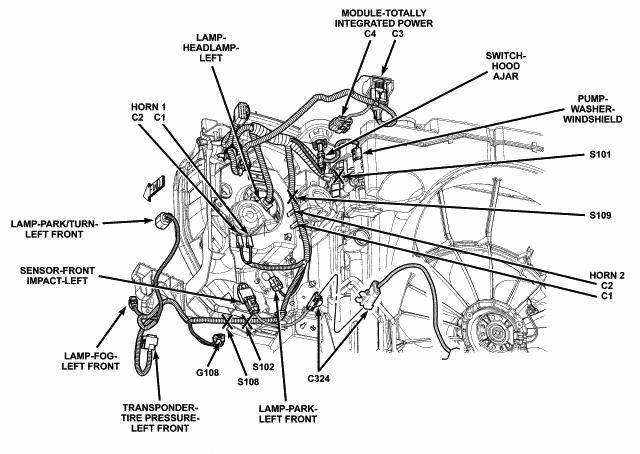

Fig 3: Left Front Of Engine Compartment

G00458213

Courtesy of CHRYSLER LLC

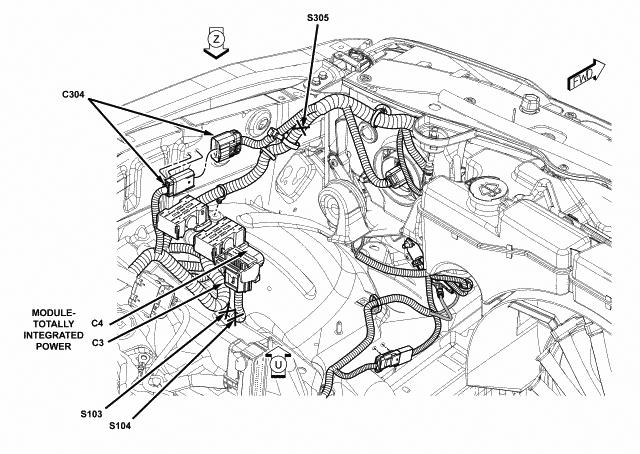

Fig 4: Left Side Of Engine Compartment

G00458214

Courtesy of CHRYSLER LLC

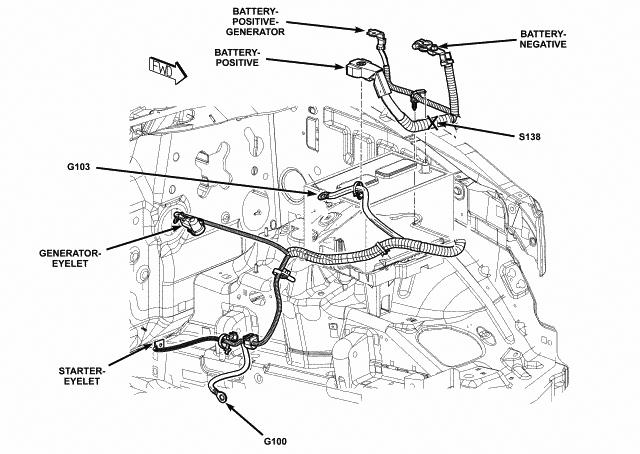

Fig 5: Left Side Of Engine Compartment

G00458215

Courtesy of CHRYSLER LLC

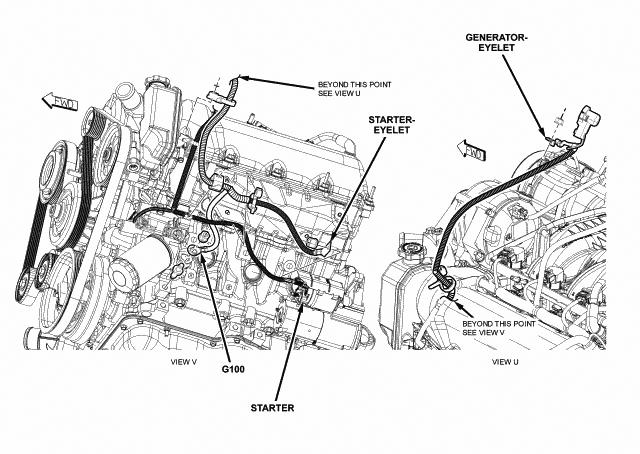

Fig 6: Left Side Of Engine

G00458216

Courtesy of CHRYSLER LLC

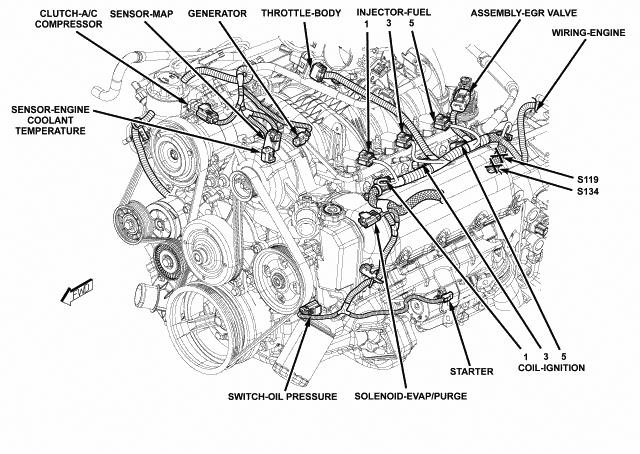

Fig 7: Left Side Of Engine

G00458217

Courtesy of CHRYSLER LLC

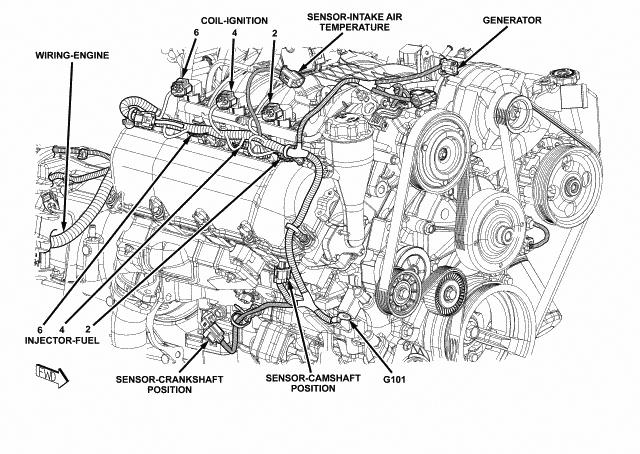

Fig 8: Right Side Of Engine

G00458218

Courtesy of CHRYSLER LLC

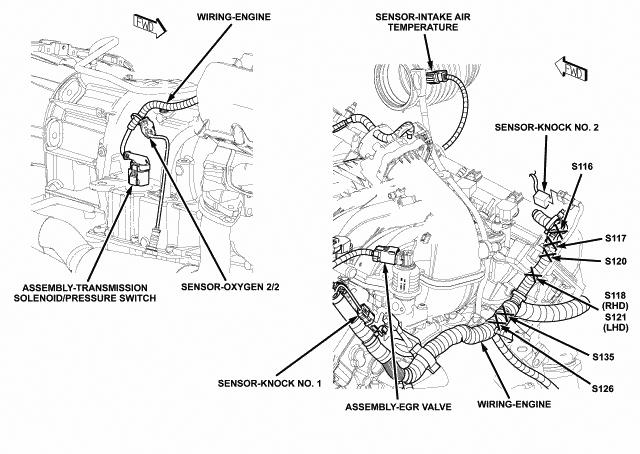

Fig 9: Rear Of Engine

G00458219

Courtesy of CHRYSLER LLC

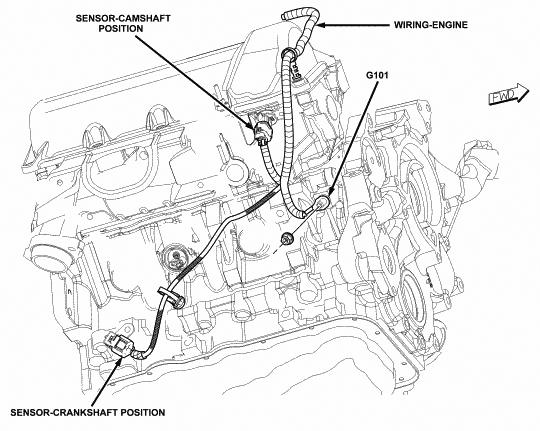

Fig 10: Lower Right Side Of Engine

G00458220

Courtesy of CHRYSLER LLC

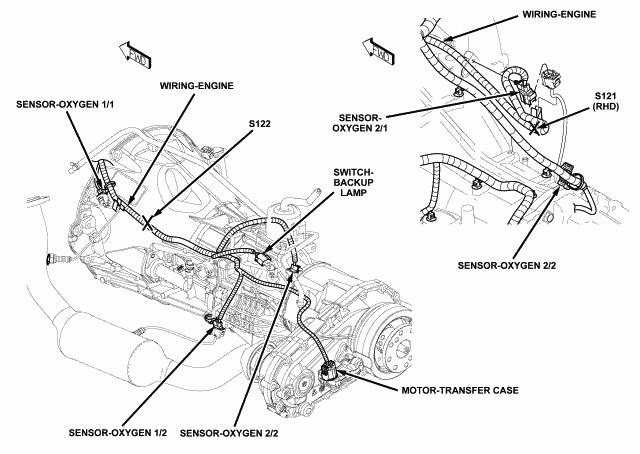

Fig 11: Left Side Of Transmission

G00458221

Courtesy of CHRYSLER LLC

Fig 12: Left Rear Of Engine Compartment

G00458222

Courtesy of CHRYSLER LLC

Fig 13: Left Side Of Engine Compartment

G00458223

Courtesy of CHRYSLER LLC

Fig 14: Rear Of Engine Compartment

G00458224

Courtesy of CHRYSLER LLC

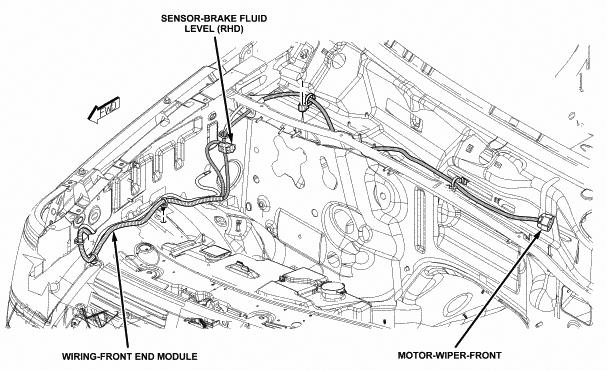

Fig 15: Rear Of Engine Compartment

G00458225

Courtesy of CHRYSLER LLC

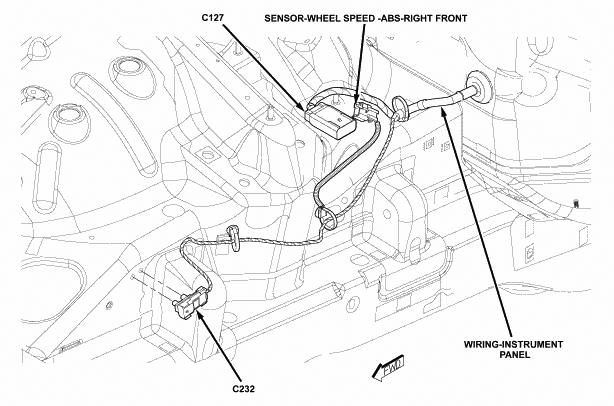

Fig 16: Lower Right Side Of Engine Compartment

G00458226

Courtesy of CHRYSLER LLC

Fig 17: Front Of Roof

G00458227

Courtesy of CHRYSLER LLC

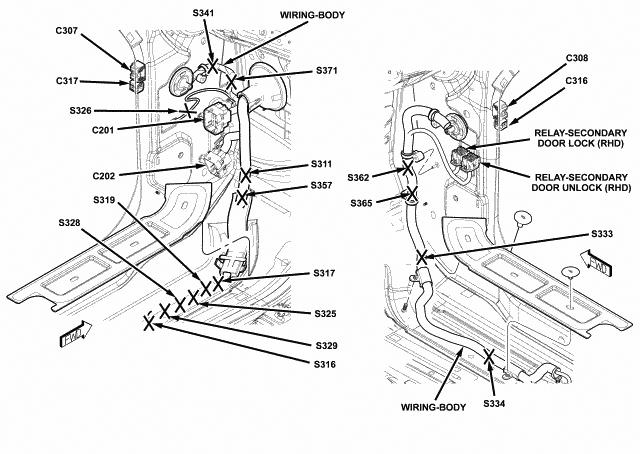

Fig 18: Left & Right Kick Panels

G00458228

Courtesy of CHRYSLER LLC

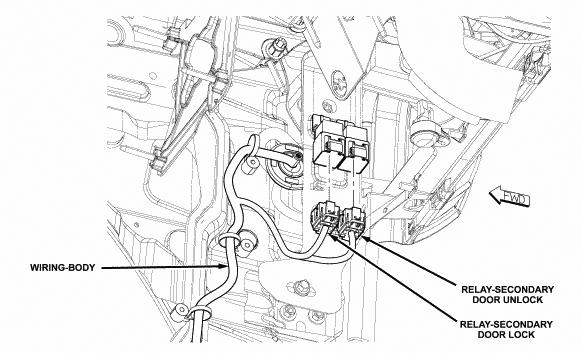

Fig 19: Behind Right End Of Dash

G00458229

Courtesy of CHRYSLER LLC

Fig 20: Dash

G00458230

Courtesy of CHRYSLER LLC

Fig 21: Left Side Of Dash & Center Console

G00458231

Courtesy of CHRYSLER LLC

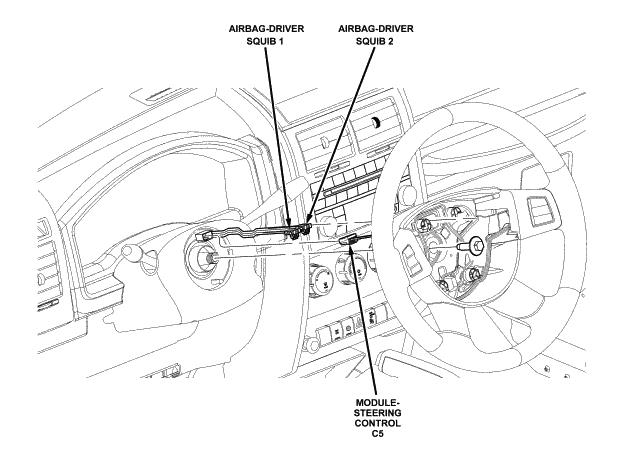

Fig 22: Top Of Steering Column

G00458232

Courtesy of CHRYSLER LLC

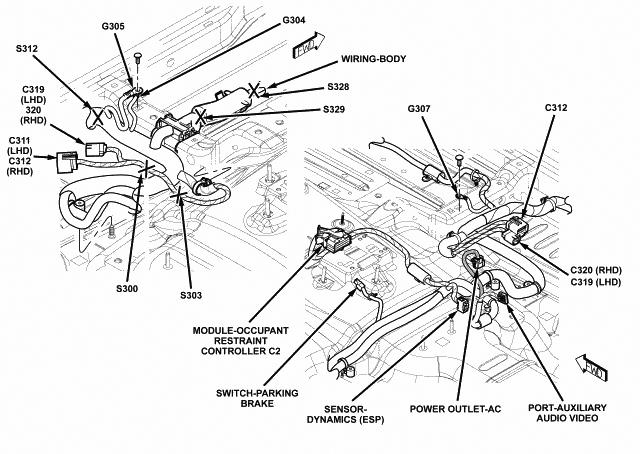

Fig 23: Under Front Seats

G00458233

Courtesy of CHRYSLER LLC

Fig 24: Driver's Door (Front Passenger's Similar)

G00458234

Courtesy of CHRYSLER LLC

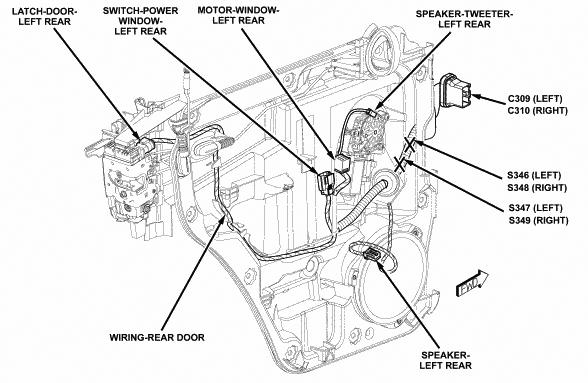

Fig 25: Left Rear Door (Right Rear Similar)

G00458235

Courtesy of CHRYSLER LLC

Fig 26: Front Seats

G00458236

Courtesy of CHRYSLER LLC

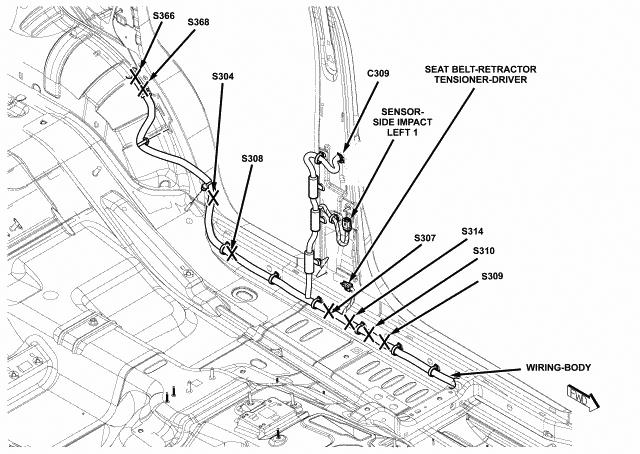

Fig 27: Left "B" & "C" Pillars

G00458237

Courtesy of CHRYSLER LLC

Fig 28: Right "B" & "C" Pillars

G00458718

Courtesy of CHRYSLER LLC

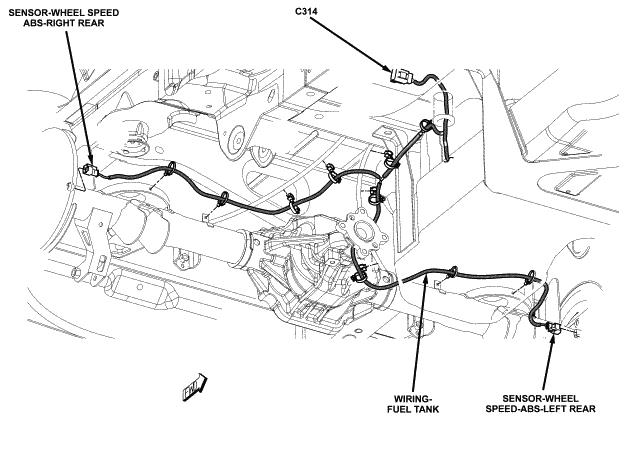

Fig 29: Under Rear Of Vehicle

G00458719

Courtesy of CHRYSLER LLC

Fig 30: Fuel Tank

G00458720

Courtesy of CHRYSLER LLC

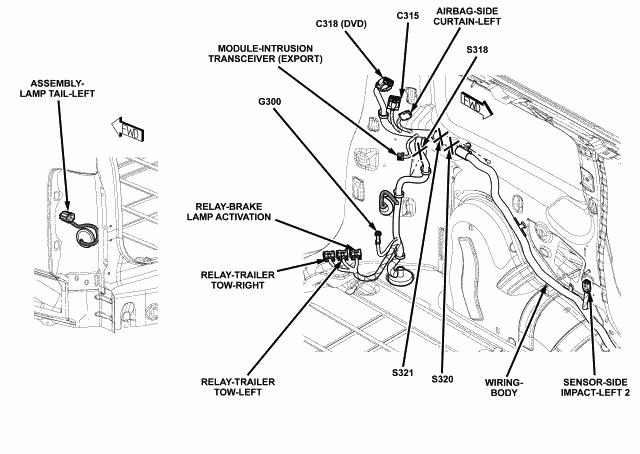

Fig 31: Left Quarterpanel

G00458721

Courtesy of CHRYSLER LLC

Fig 32: Right Quarterpanel

G00458722

Courtesy of CHRYSLER LLC

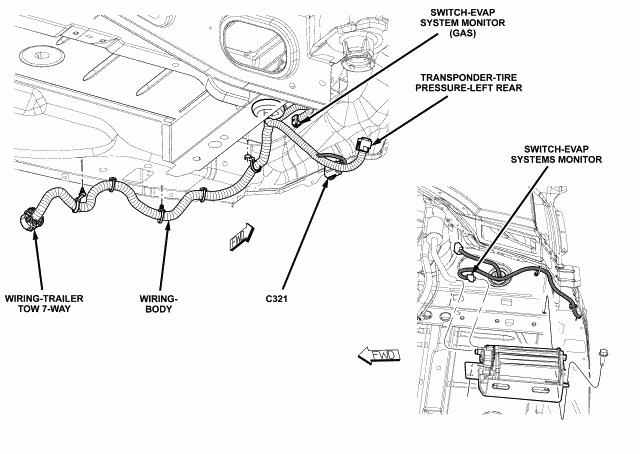

Fig 33: Under Rear Of Vehicle

G00458723

Courtesy of CHRYSLER LLC

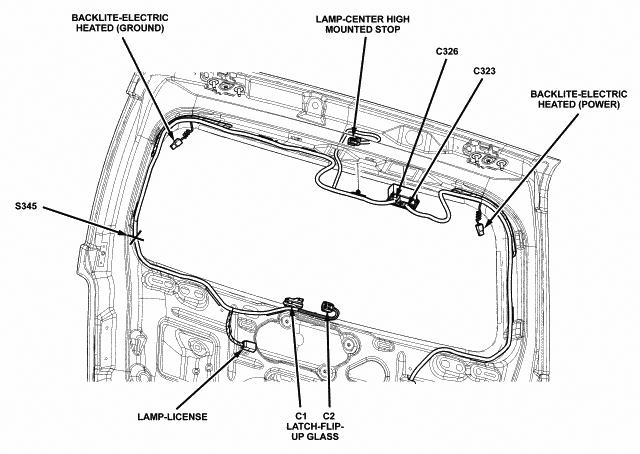

Fig 34: Top Of Liftgate

G00458725

Courtesy of CHRYSLER LLC

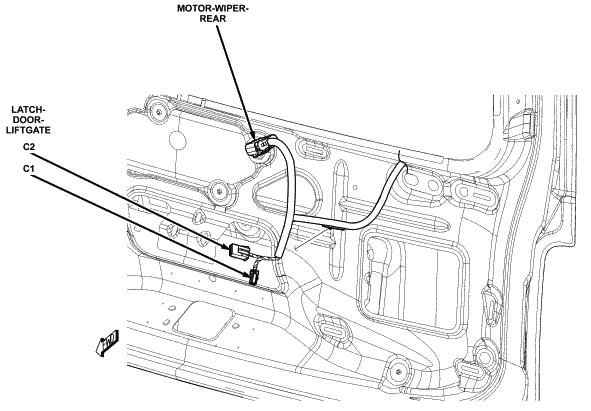

Fig 35: Bottom Of Liftgate

G00458726

Courtesy of CHRYSLER LLC
