Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

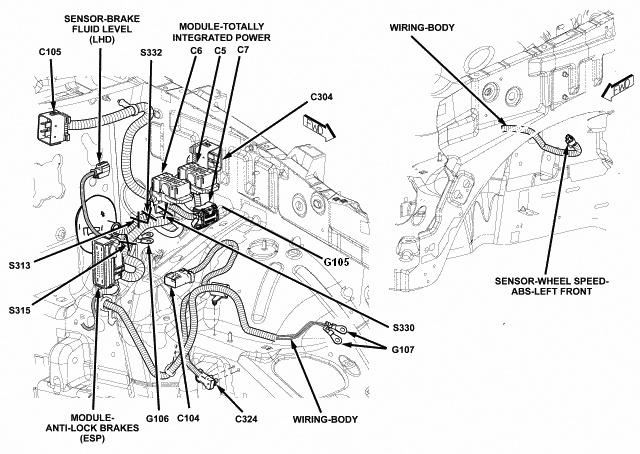

| Anti-Lock Brakes (EPS) Module | Left rear of engine compartment. See Figure. |
| Compass Module | Right rear of headliner. |

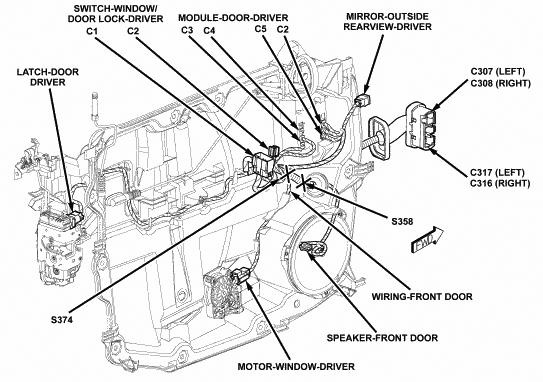

| Door Module (Driver) | Front of driver's door. See Figure. |
| Door Module (Passenger) | Front of front passenger's door. |
| Final Drive Module | Behind left side of dash. See Figure. |

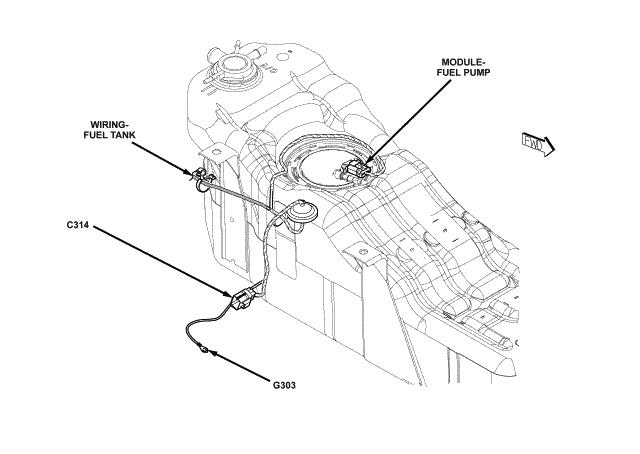

| Fuel Pump Module | Fuel tank. See Figure. |
| Hands Free Module | Behind right quarterpanel. See Figure. |

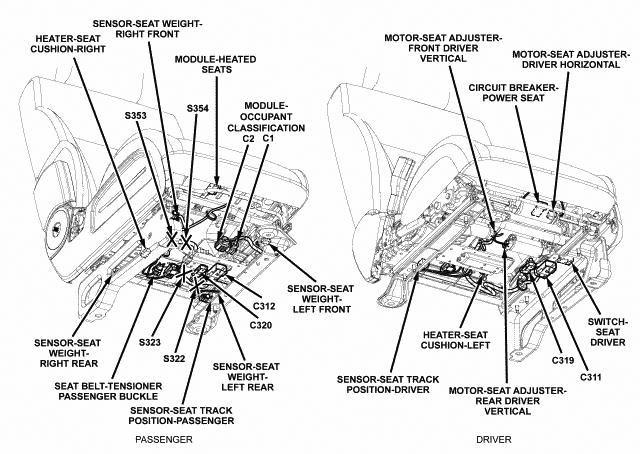

| Heated Seats Module | Under front passenger's seat. See Figure. |

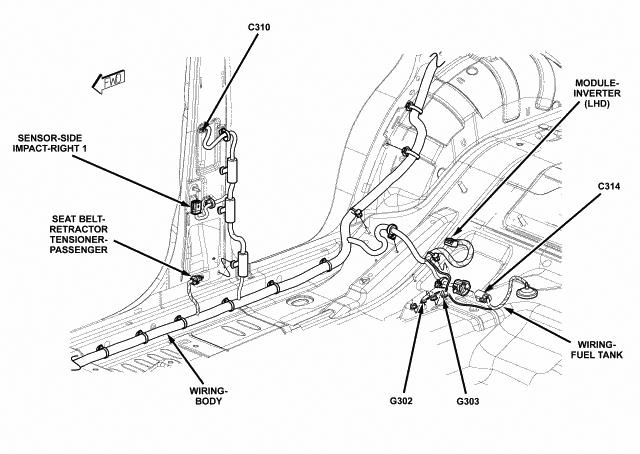

| Inverter Module | Under right rear seat. See Figure. |
| Memory Seat Module | Under driver's seat. |
| Occupant Classification Module | Under front passenger's seat. See Figure. |
| Occupant Restraint Controller Module | Under center console. See Figure. |

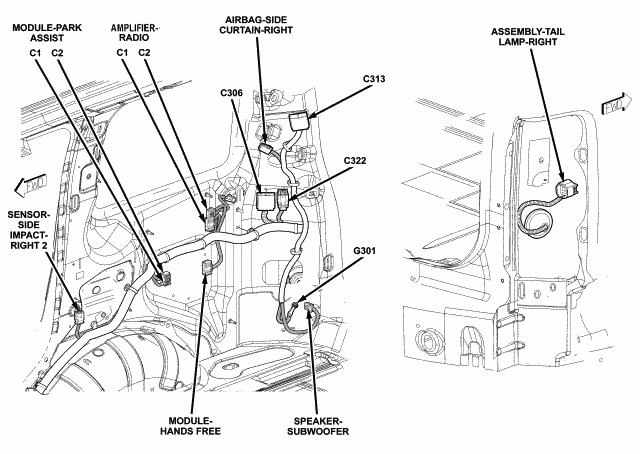

| Park Assist Module | Behind right quarterpanel. See Figure. |

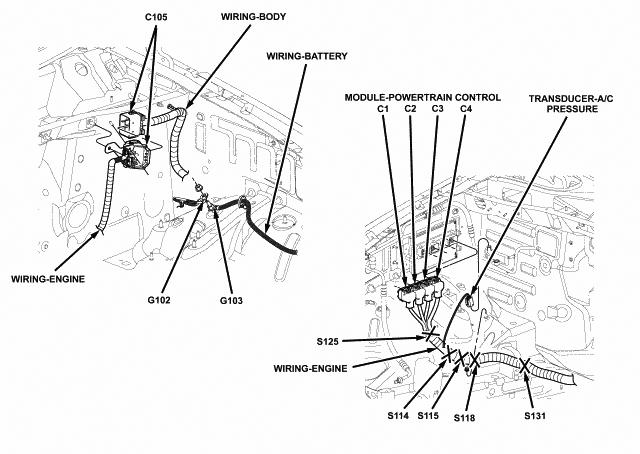

| Powertrain Control Module | Right rear of engine compartment. See Figure. |

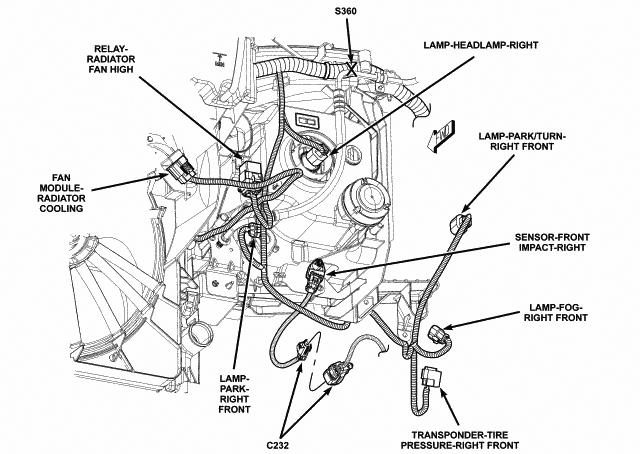

| Radiator Cooling Fan Module | Right front of engine compartment. See Figure. |

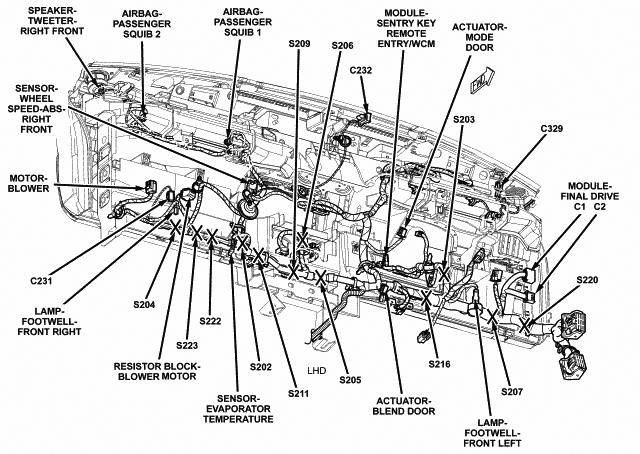

| Sentry Key Remote Entry/WCM | Behind left side of dash. See Figure. |

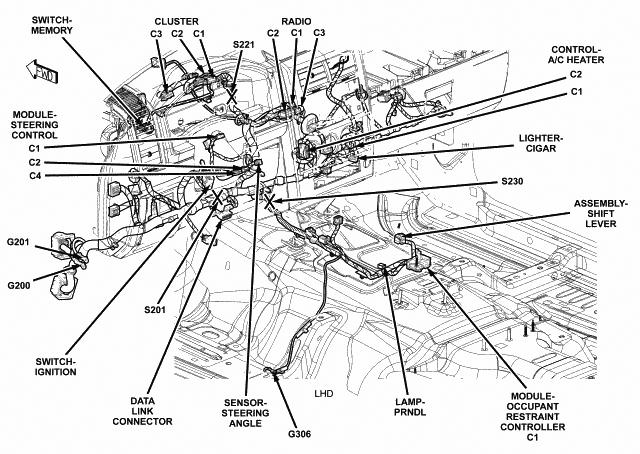

| Steering Control Module | Under left side of dash. See Figure. |

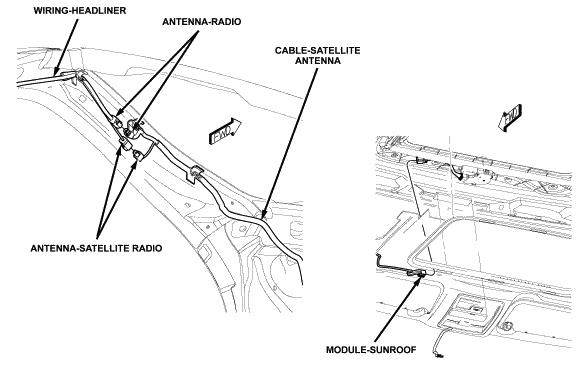

| Sunroof Module | Front of roof. See Figure. |

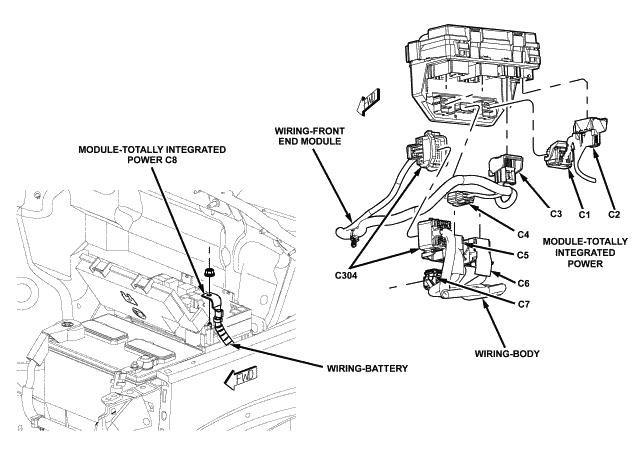

| Totally Integrated Power Module | Left front of engine compartment. See Figure. |
| Transmission Control Module | Below steering column. |
