Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

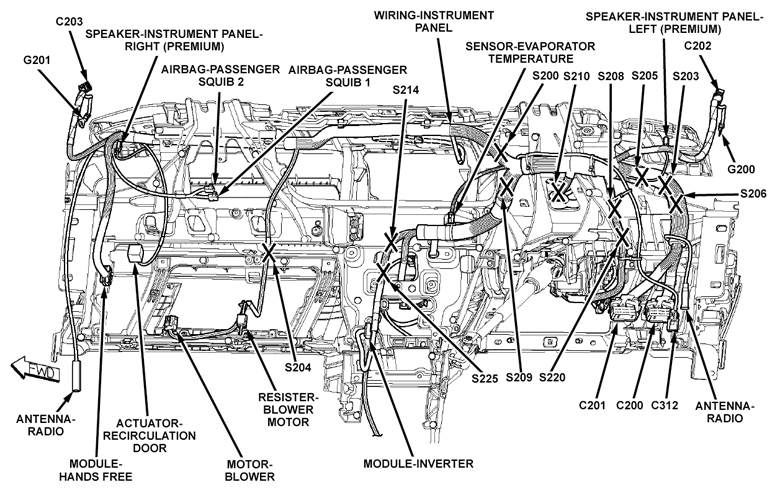

Fig 1: Dash

G00508800

Courtesy of CHRYSLER LLC

Fig 2: Left Rear Of Engine Compartment

G00508796

Courtesy of CHRYSLER LLC

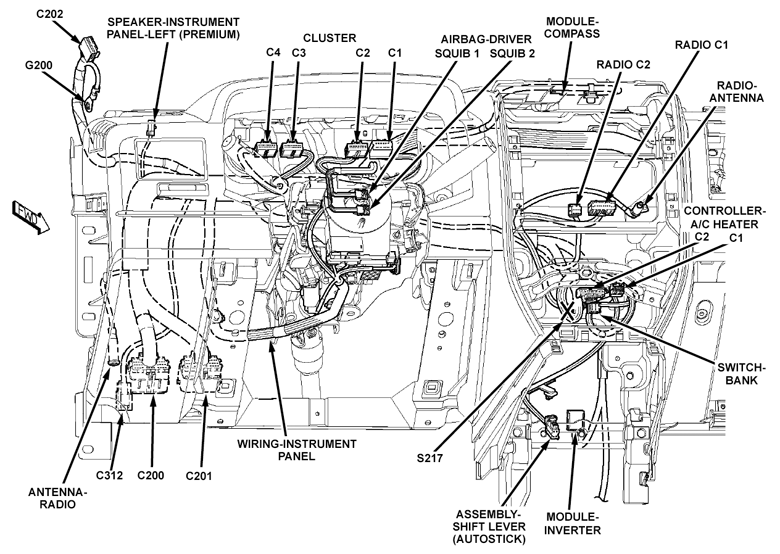

Fig 3: Left/Center Of Dash

G00508801

Courtesy of CHRYSLER LLC

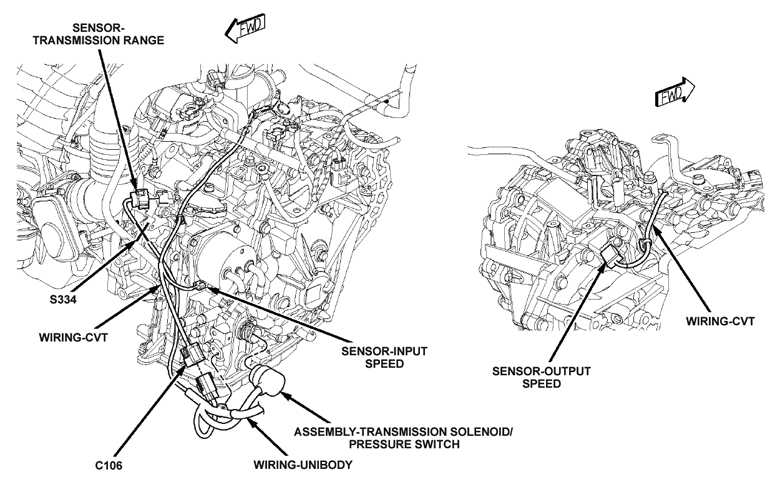

Fig 4: Transmission (CVT)

G00508814

Courtesy of CHRYSLER LLC

Fig 5: Left Front Frame Rail

G00508786

Courtesy of CHRYSLER LLC

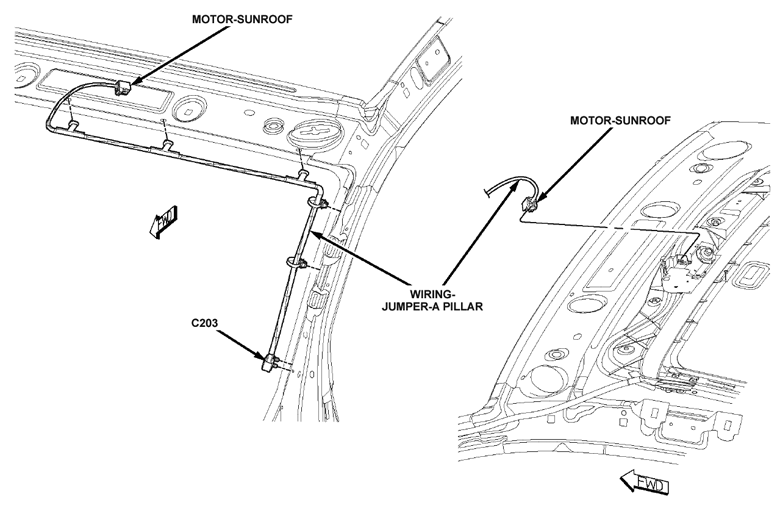

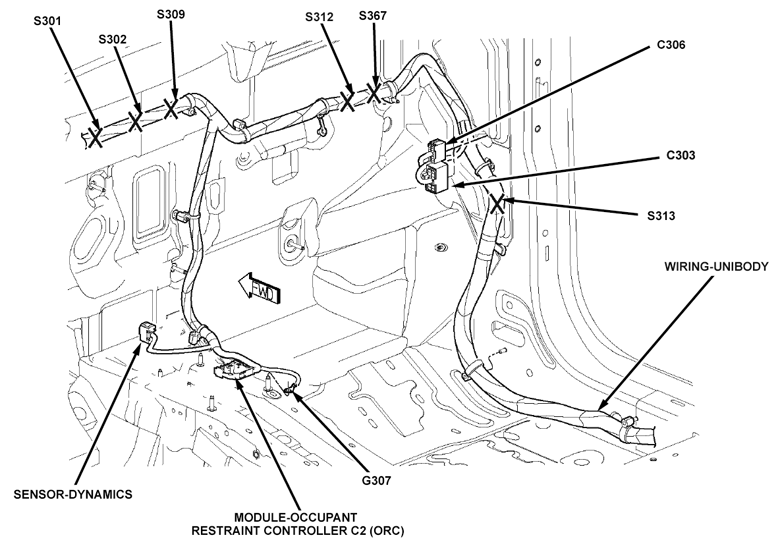

Fig 6: Right "A" Pillar

G00508813

Courtesy of CHRYSLER LLC

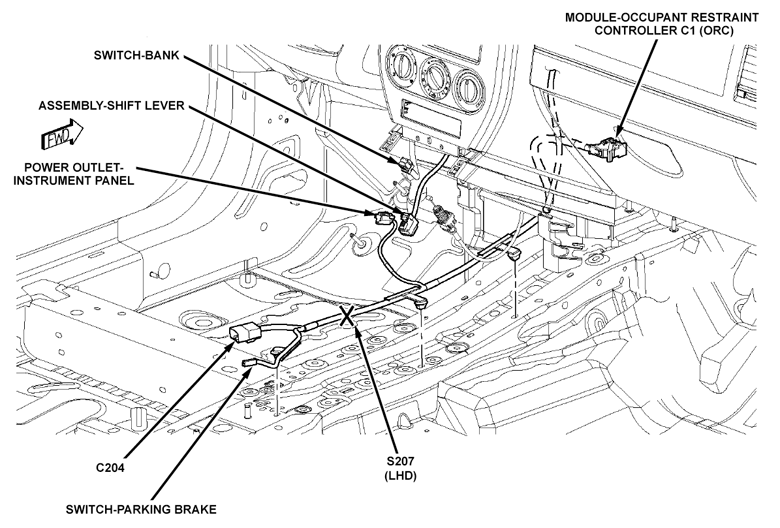

Fig 7: Front Center Of Body

G00508802

Courtesy of CHRYSLER LLC

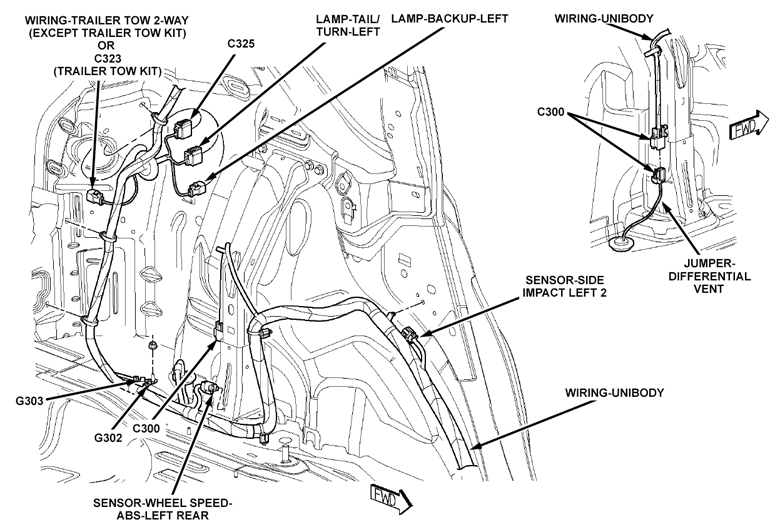

Fig 8: Left Rear Of Body

G00508809

Courtesy of CHRYSLER LLC

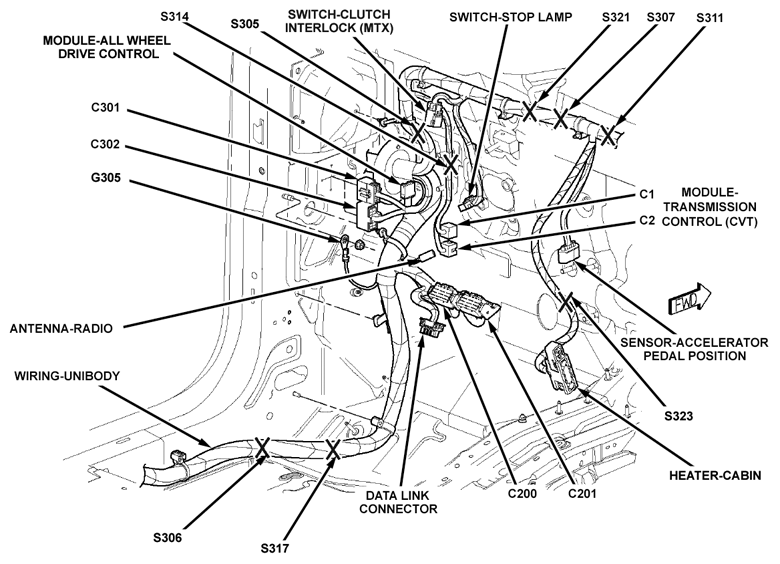

Fig 9: Under Left Side Of Dash

G00508805

Courtesy of CHRYSLER LLC

Fig 10: Right Front Of Body

G00508806

Courtesy of CHRYSLER LLC

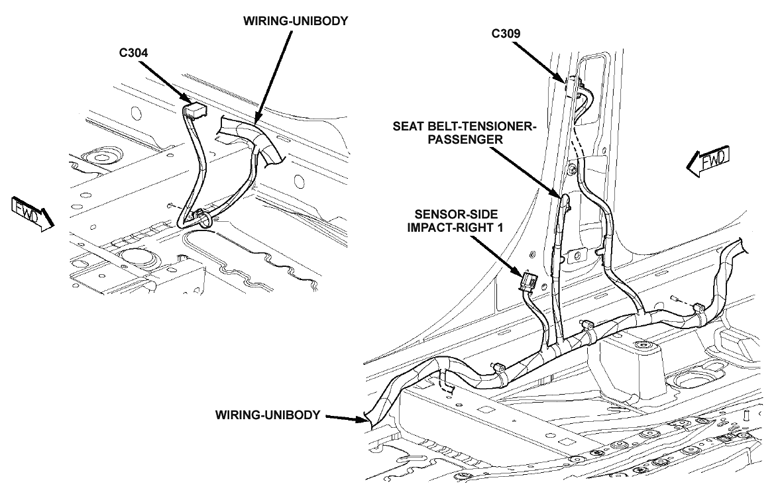

Fig 11: Right "B" Pillar

G00508788

Courtesy of CHRYSLER LLC

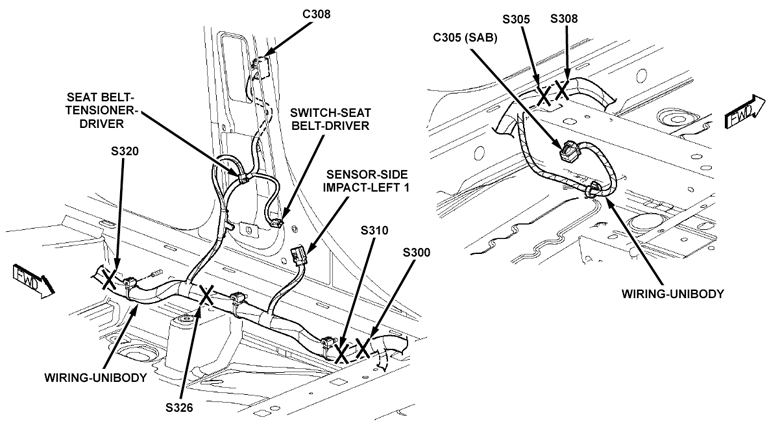

Fig 12: Left "B" Pillar

G00508807

Courtesy of CHRYSLER LLC

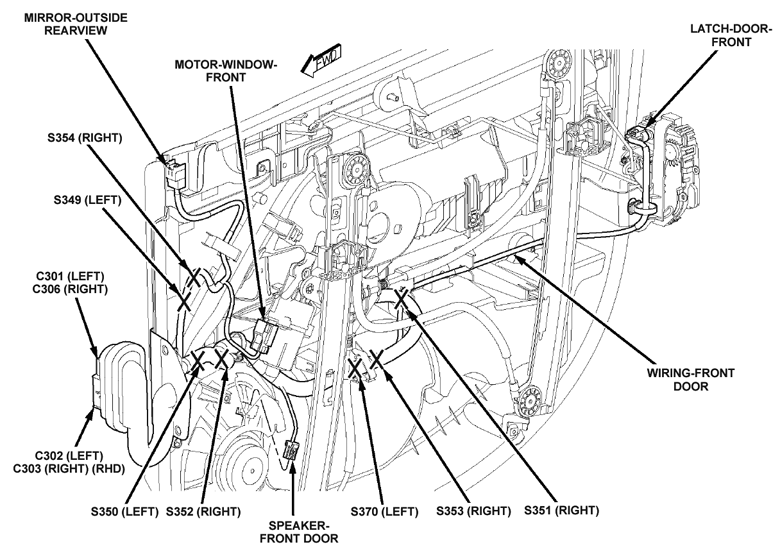

Fig 13: Front Doors (Left Shown, Right Similar)

G00508790

Courtesy of CHRYSLER LLC

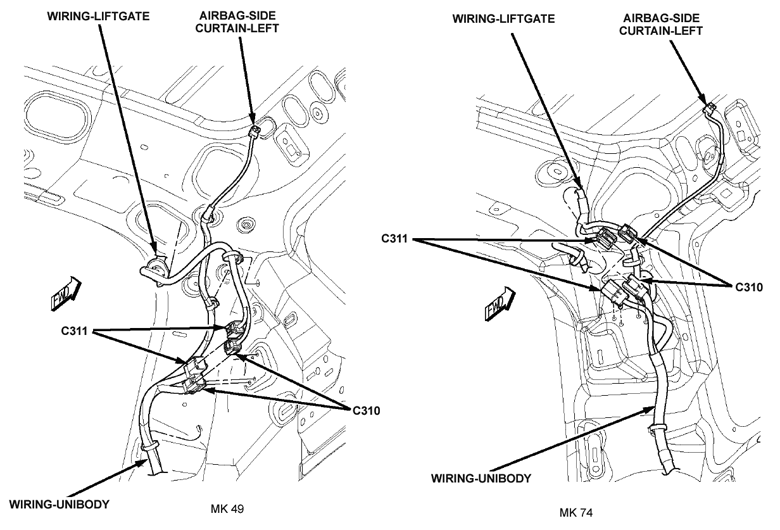

Fig 14: Upper Left Rear Of Body

G00508792

Courtesy of CHRYSLER LLC

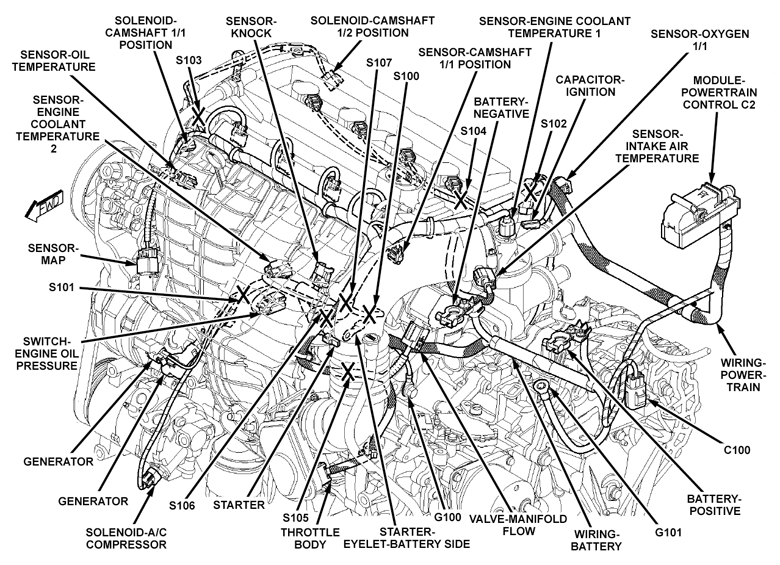

Fig 15: Left Front Of Engine

G00508799

Courtesy of CHRYSLER LLC

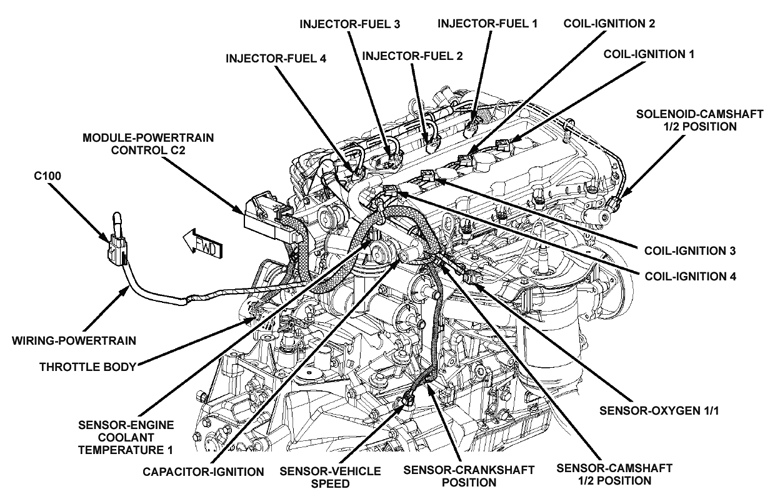

Fig 16: Left Rear Of Engine

G00508781

Courtesy of CHRYSLER LLC

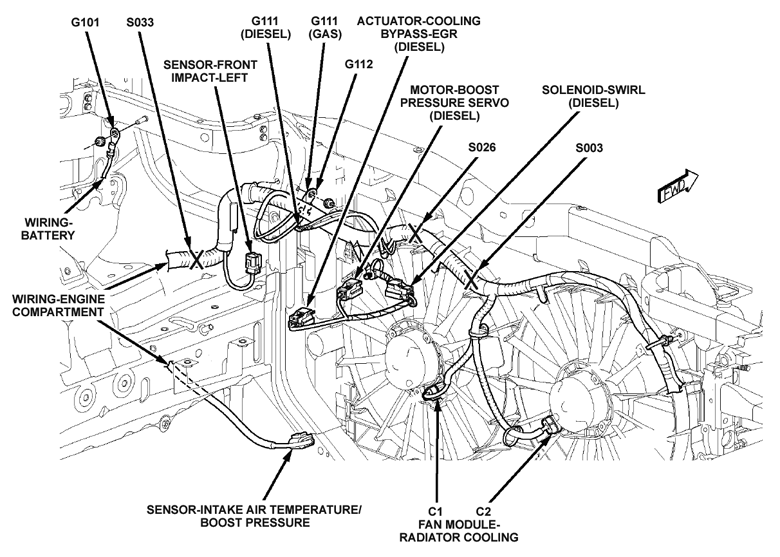

Fig 17: Left Front Of Engine Compartment

G00508785

Courtesy of CHRYSLER LLC

Fig 18: Left Front Frame Rail

G00508797

Courtesy of CHRYSLER LLC

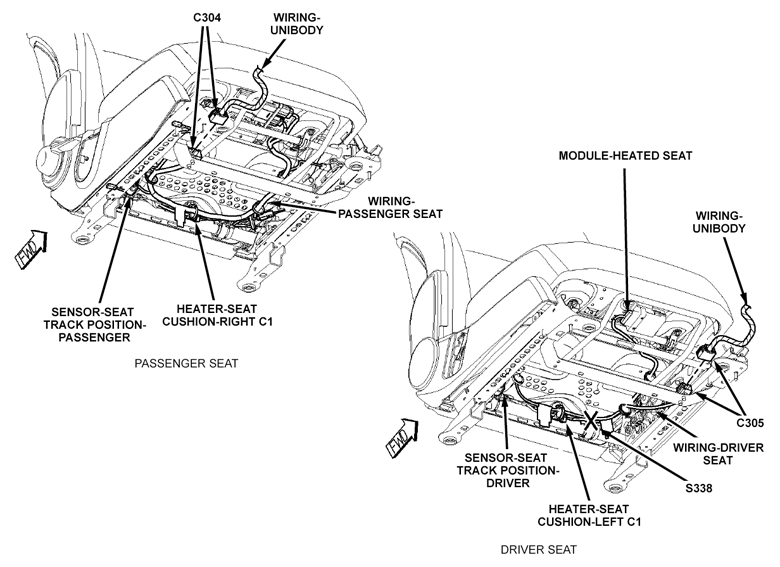

Fig 19: Front Seats

G00508812

Courtesy of CHRYSLER LLC

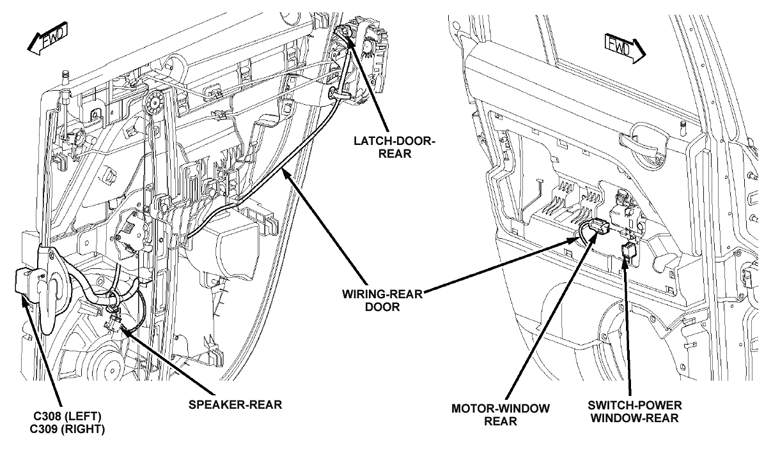

Fig 20: Rear Doors (Right Shown, Left Similar)

G00508791

Courtesy of CHRYSLER LLC

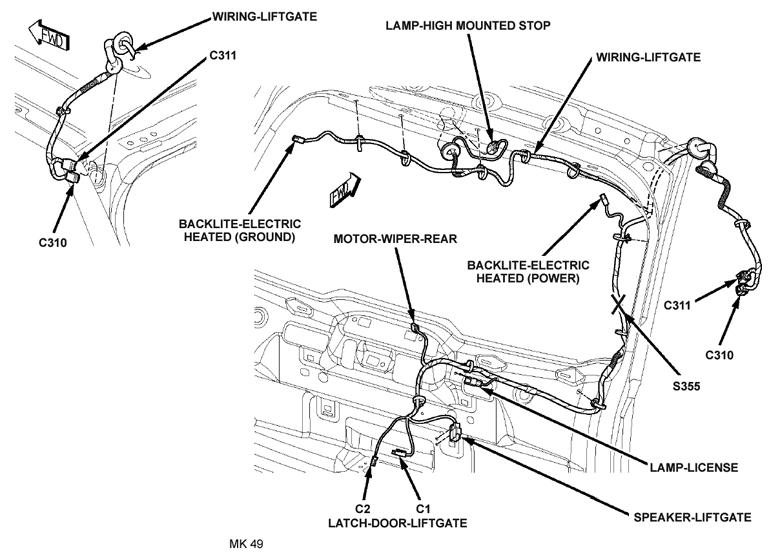

Fig 21: Liftgate

G00508793

Courtesy of CHRYSLER LLC

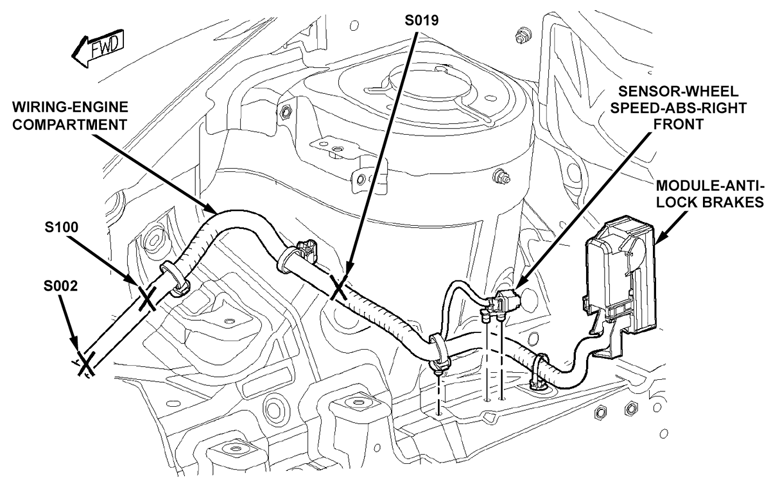

Fig 22: Right Front Shock Tower

G00508795

Courtesy of CHRYSLER LLC

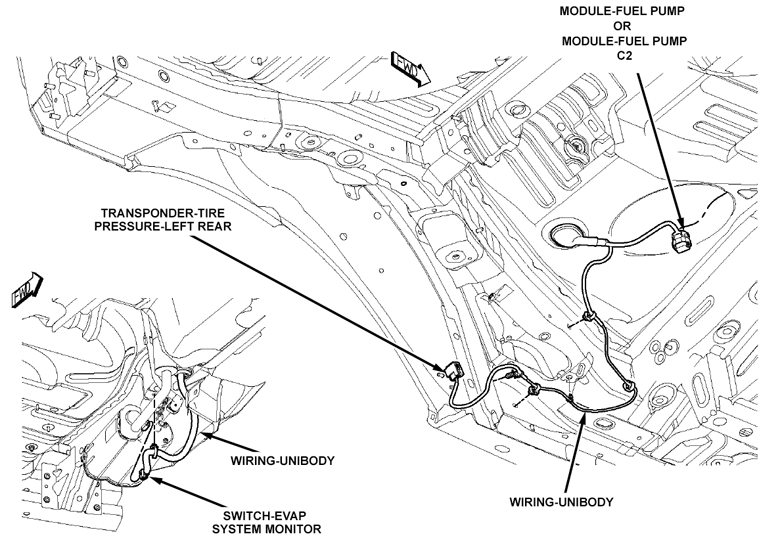

Fig 23: Left Rear Of Underbody

G00508808

Courtesy of CHRYSLER LLC

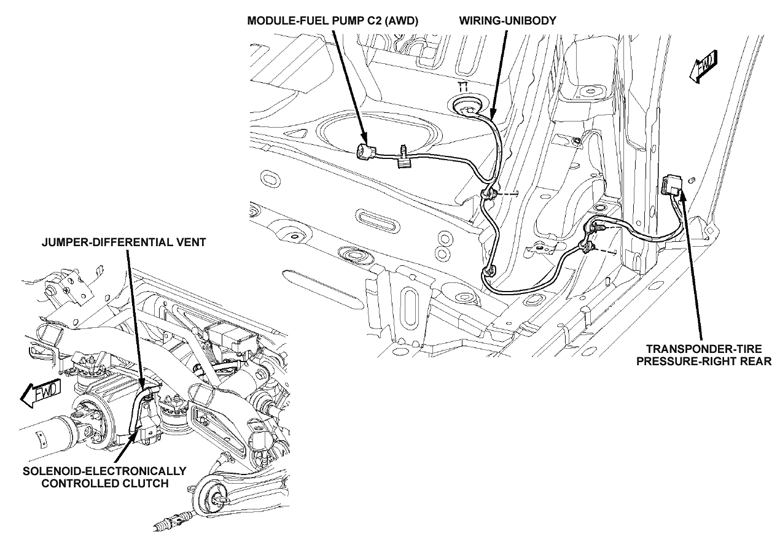

Fig 24: Right Rear Of Underbody

G00508783

Courtesy of CHRYSLER LLC

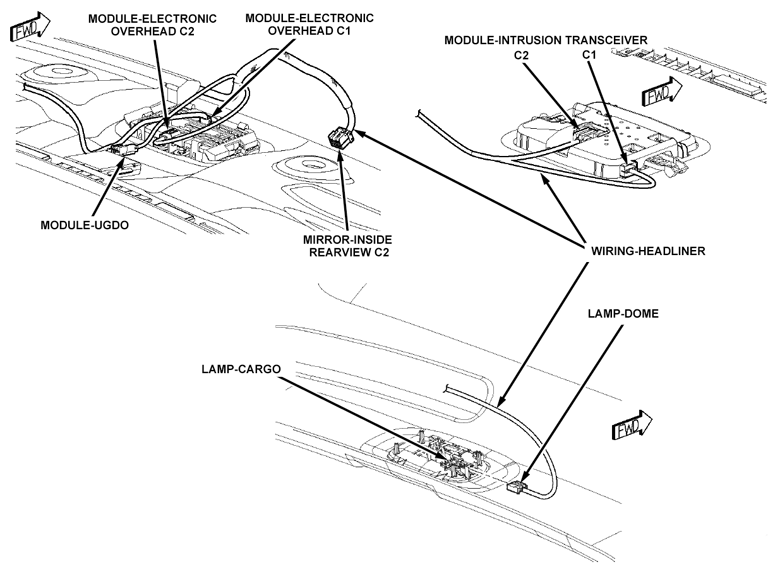

Fig 25: Headliner

G00508804

Courtesy of CHRYSLER LLC

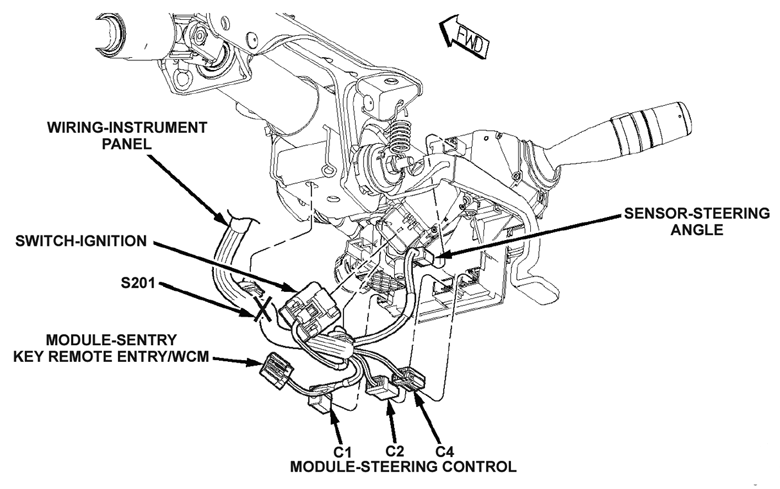

Fig 26: Steering Column

G00508787

Courtesy of CHRYSLER LLC

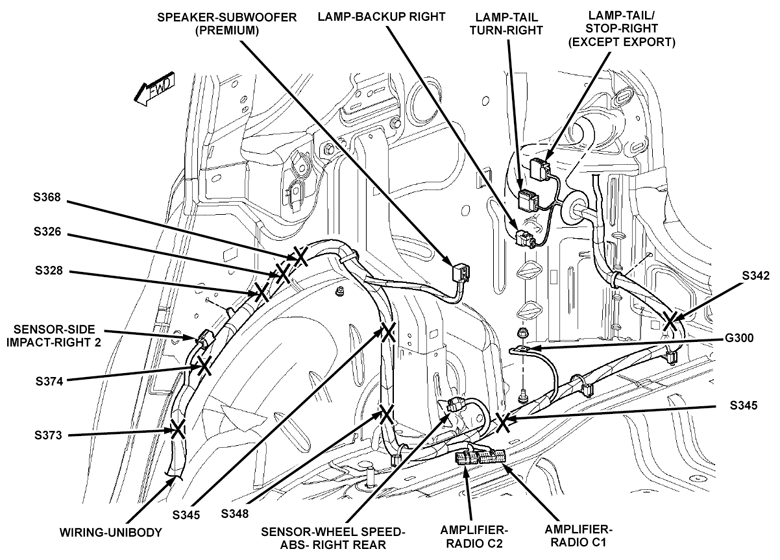

Fig 27: Right Rear Of Body

G00508810

Courtesy of CHRYSLER LLC

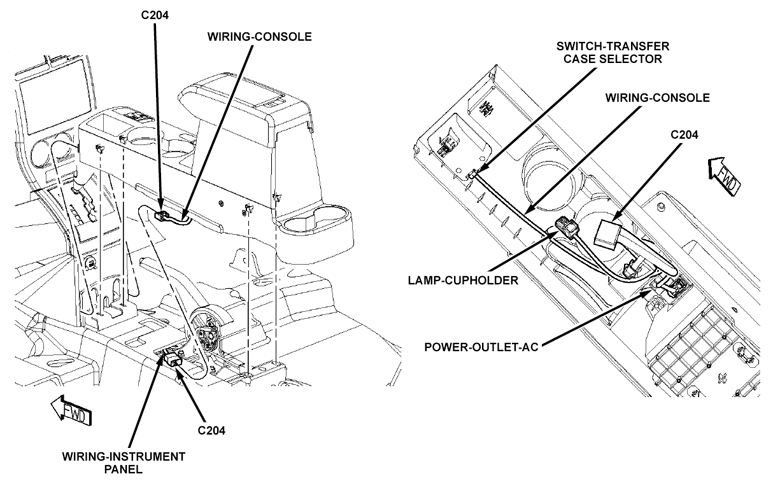

Fig 28: Center Console

G00508803

Courtesy of CHRYSLER LLC

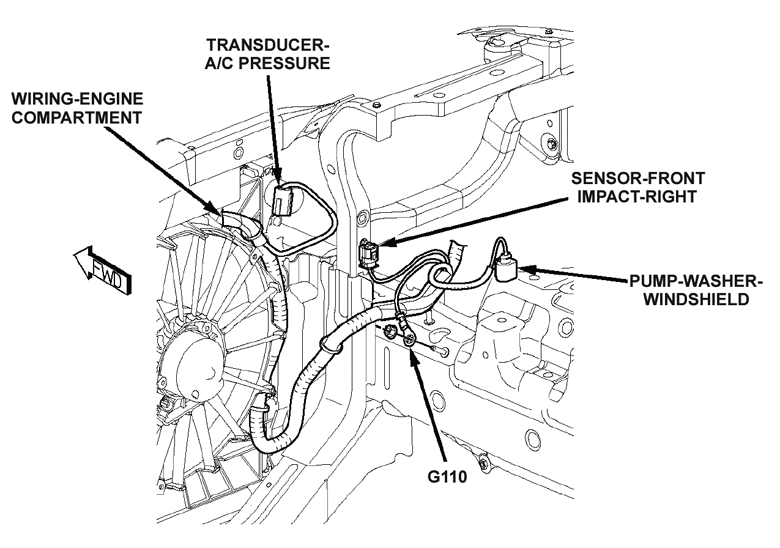

Fig 29: Right Front Of Engine Compartment

G00508784

Courtesy of CHRYSLER LLC

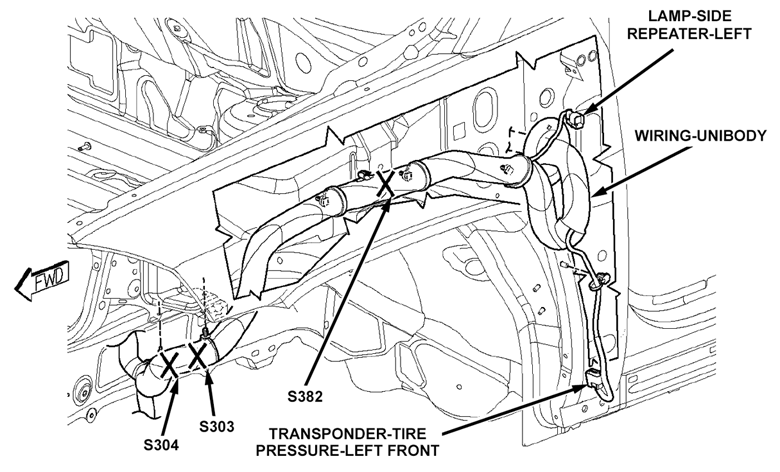

Fig 30: Under Left Front Fender

G00508798

Courtesy of CHRYSLER LLC

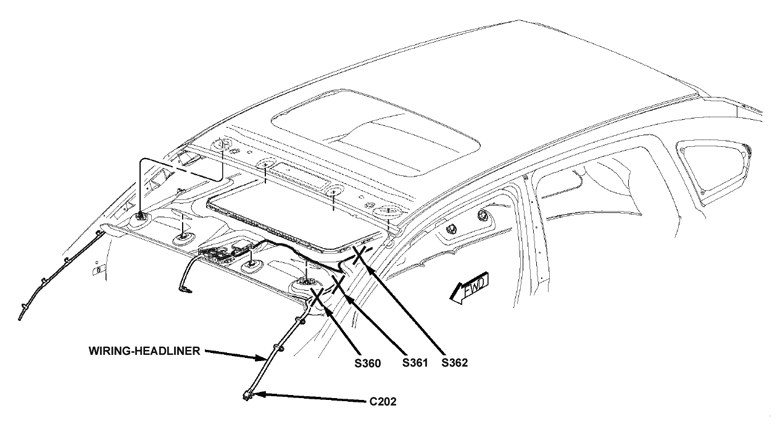

Fig 31: Front Of Headliner

G00508782

Courtesy of CHRYSLER LLC

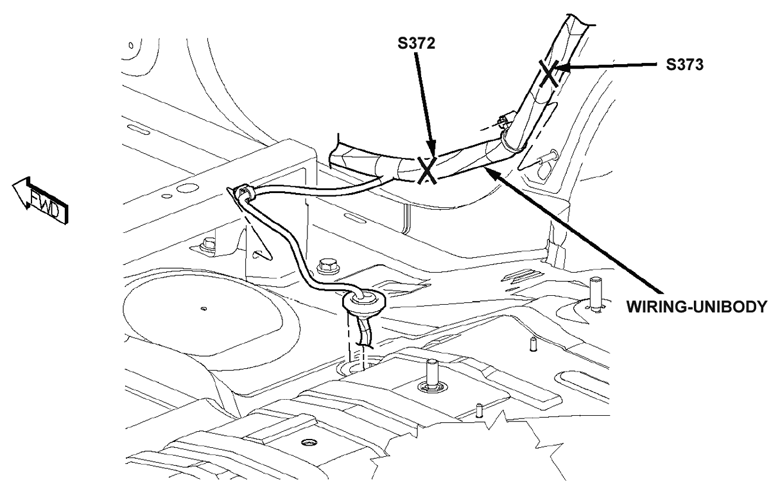

Fig 32: Lower Right Rear Of Body

G00508789

Courtesy of CHRYSLER LLC

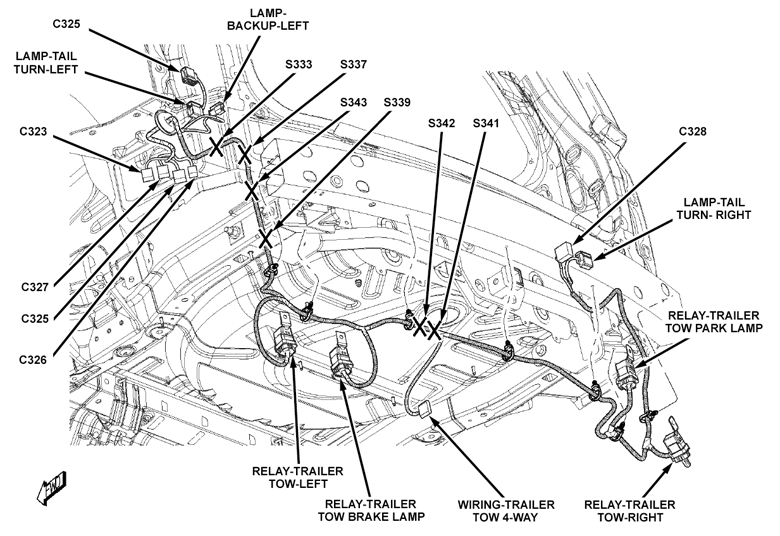

Fig 33: Rear Of Body

G00508811

Courtesy of CHRYSLER LLC

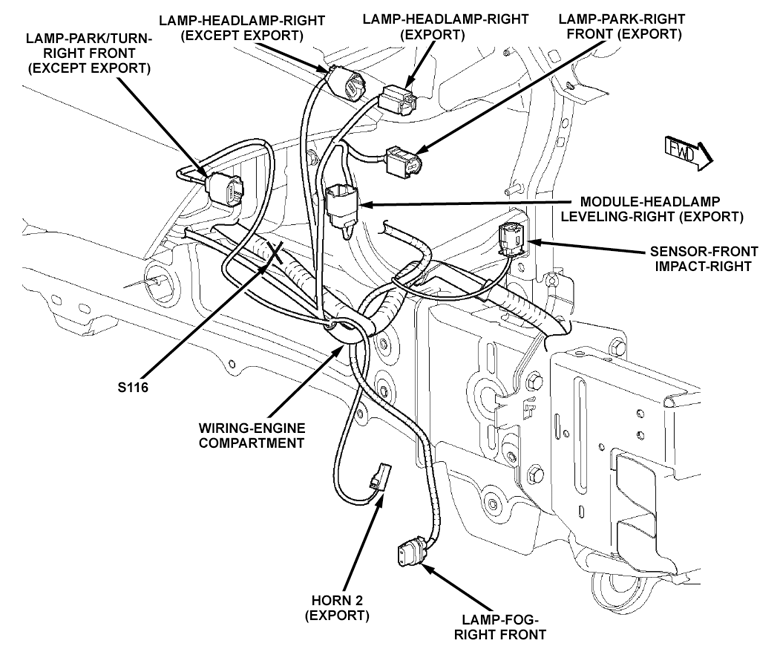

Fig 34: Right Front Of Engine Compartment

G00508794

Courtesy of CHRYSLER LLC

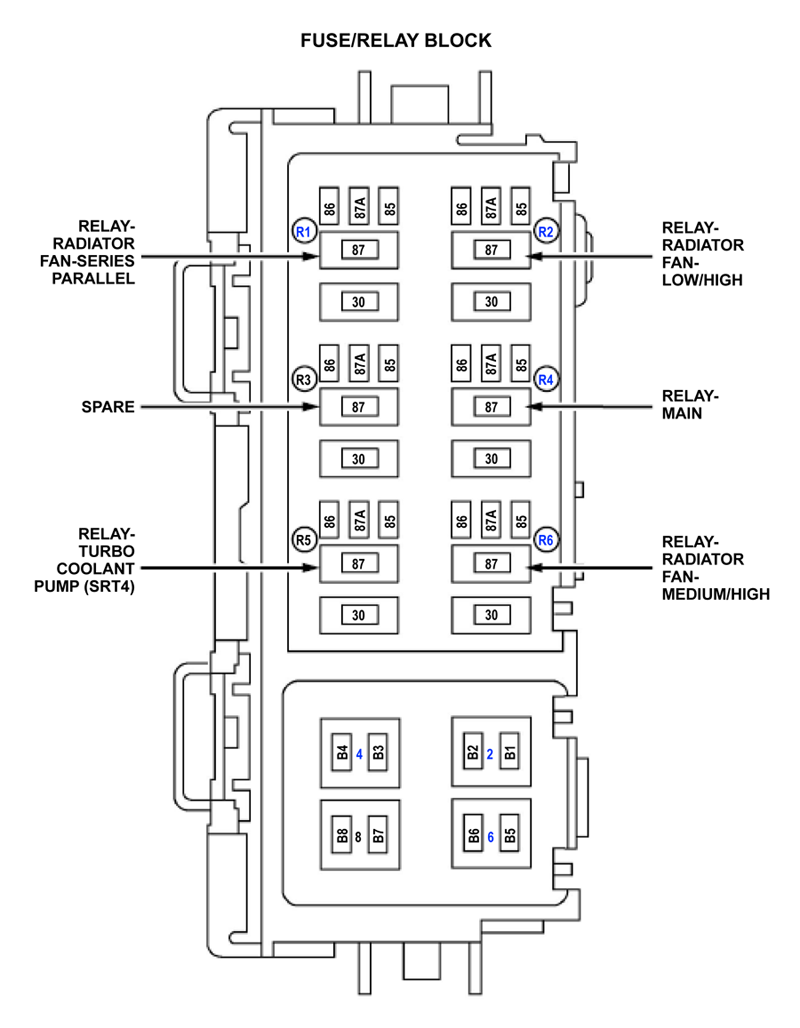

Fig 35: Left Side Of Engine Compartment

G00508815

Courtesy of CHRYSLER LLC
