PLUG, Glow: Installation: Installation

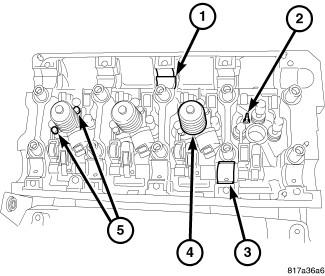

Fig 1: Glow Plugs

GC0098506

Courtesy of CHRYSLER LLC

Clean glow plug bay and install glow plug.
Tighten glow plugs to 10 N.m (89 lbs. in.).
Connect glow plug electrical connector.
Install cylinder head cover.
Install engine cover.
Connect negative battery cable.
