OUTLET, Power, AC: Installation: Installation

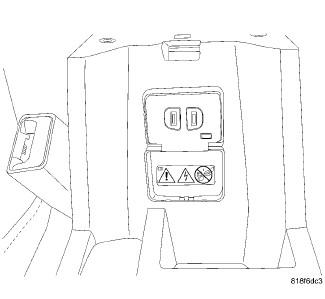

Fig 1: Removing/Installing Power Outlet - AC

Courtesy of CHRYSLER LLC

1. Install the AC power outlet.
2. Connect electrical connector.
3. Install the center console. Refer to CONSOLE, Floor, Installation .
4. Connect the battery negative cable.
