Universal Transmitter: Installation: Installation

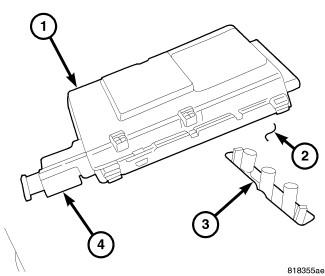

Fig 1: Universal Transmitter Module

Courtesy of CHRYSLER LLC

1. Position the universal transmitter module (1) into the vehicle.
2. Connect the electrical connector (4).
3. Working through the courtesy/reading lamp hole in the headliner (2), insert the universal transmitter module up into place over the cut out for the button bezel (3).

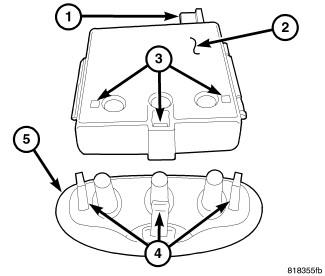

   Fig 2: Aligning Tabs With Module Slots

   Courtesy of CHRYSLER LLC
4. Position the universal transmitter module (2) so that the mounting tabs (4) on the button bezel (5) are aligned with the module slots.
5. Holding the module in place push the universal transmitter button bezel through the headliner until the mounting tabs are securely engaged with the module.

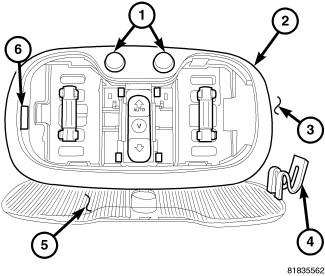

   Fig 3: Message Center Components

   Courtesy of CHRYSLER LLC
6. Position the courtesy/reading lamp assembly (2) into the headliner (3).
7. Insert the mounting tab (4) on the lamp lens (5) into the right side of the lamp assembly and pivot the lens up until it snaps securely in place.
8. Connect the battery negative cable.
