Outlet, Power: Removal: Removal

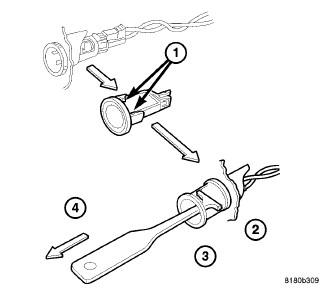

Fig 1: Removing Cigar Lighter/Power Outlet

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the battery negative cable.
Look inside and note position of the retaining bosses (1).
Using special tool (special tool #9857, Remover, Power Outlet) Power Outlet Remover. Insert the tool forcing the bosses out of base.
Pull out the base through mounting ring by gently rocking the tool (3).
Disconnect the base wires.
Set base aside and remove base mount ring.
