3.7L Engine

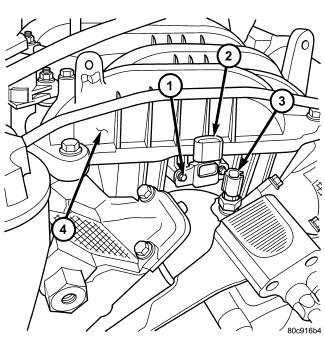

Fig 1: Removing/Installing MAP Sensor/ECT Sensor
GC0083184Courtesy of CHRYSLER GROUP, LLC
1 - MOUNTING SCREWS
2 - MAP SENSOR
3 - ECT SENSOR
4 - FRONT OF INTAKE MANIFOLD
  1. Apply thread sealant to sensor threads.
  2. Install sensor to engine.
  3. Tighten coolant temperature sensor to 11 N.m (8 ft. lbs.) torque.
  4. Replace any lost engine coolant.
