Sensor, Coolant Temperature: Installation: 2.8L

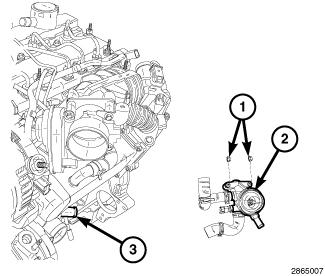

Fig 1: Thermostat Housing

Courtesy of CHRYSLER GROUP, LLC

1. Install coolant temperature sensor in thermostat housing. Tighten sensor to 11 N.m (8 ft. lbs.) torque.
2. Install the thermostat housing onto engine. Refer to THERMOSTAT, INSTALLATION .
