Camshaft Position Sensor: Installation: Rear

Fig 1: Cam Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Lubricate sensor o-ring.
2. Install sensor utilizing twisting motion. Make sure sensor is fully seated. Do not drive sensor into the bore with screw. This can cause sensor to be incorrectly seated causing engine to fail.
3. Install mounting bolt and tighten to 9 N.m (79.5 in. lbs.).

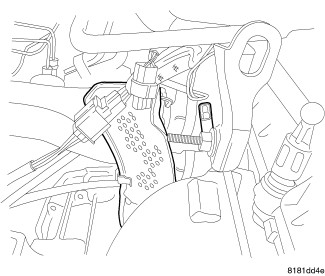

   Fig 2: Rear Cam Sensor Shield Removed

   Courtesy of CHRYSLER GROUP, LLC
4. Carefully attach electrical connector to camshaft position sensor. Feel for positive lock (click). Installation at angle may damage the sensor pins.
5. Install heat shield onto mounting stud.
6. Install heat shield retaining nut and tighten.

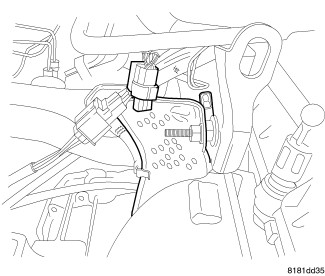

   Fig 3: Rear Cam Sensor Shield Installed

   Courtesy of CHRYSLER GROUP, LLC
7. Connect negative battery cable.
