Fan, Cooling: Installation: Gas

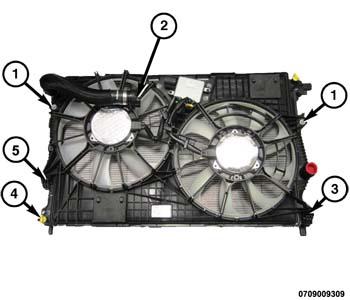

Fig 1: Fan Assembly & Components

Courtesy of CHRYSLER GROUP, LLC

Guide the cooling fan into position onto the radiator while clearing the upper radiator hose.
Once into position, insert the lower tabs into the retainers (3, 5).
Install the bolts (1). Tighten to 9 N.m (80 in. lbs.).

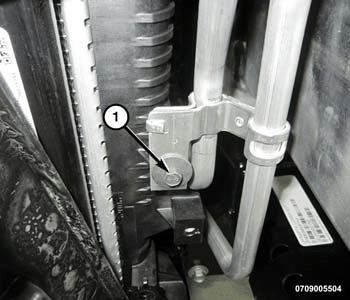

Fig 2: Removing/Installing Upper Radiator Mounts
Courtesy of CHRYSLER GROUP, LLC
Install the upper radiator mounts (1). Tighten mounting bolts (2) to 9 N.m (80 in. lbs.).

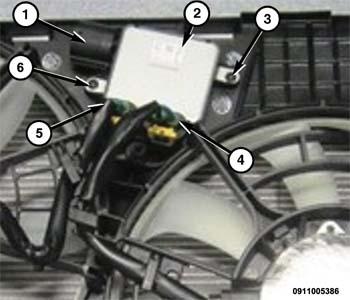

Fig 3: Removing/Installing Fan Assembly
Courtesy of CHRYSLER GROUP, LLC
Install the wire harness connector to the cooling fan module (2).
Install the upper cooling fan module wiring harness (2).

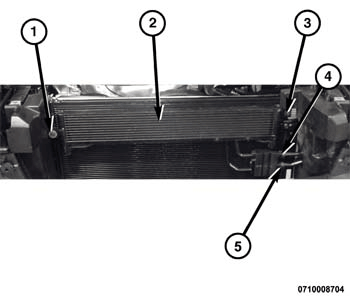

Fig 4: Transmission Oil Cooler
Courtesy of CHRYSLER GROUP, LLC
Install the transmission oil cooler. Tighten mounting bolts (2) to 8 N.m (70 in. lbs.).

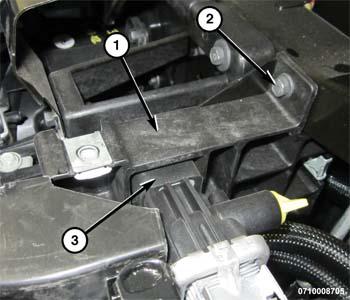

Fig 5: Removing/Installing Transmission Cooler Line Support Bracket Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the transmission cooler lines support brace bolt (1). Tighten to 8 N.m (70 in. lbs.).

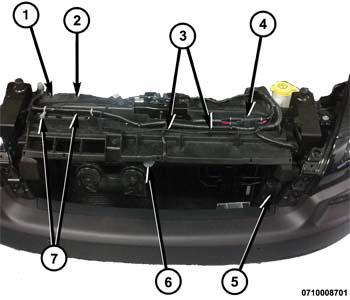

Fig 6: Removing/Installing Upper Air Deflector
Courtesy of CHRYSLER GROUP, LLC
Install the upper air deflector (1).
Install the hood release cable (3).
Install the wiring harness (7).
Connect the ambient air temperature sensor (5).

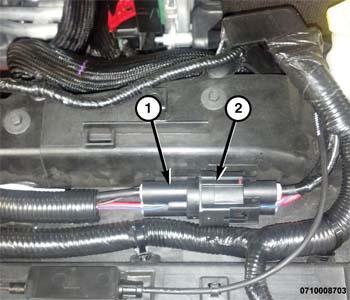

Fig 7: Cooling Fan Wiring Harness
Courtesy of CHRYSLER GROUP, LLC
Connect the cooling fan wiring harness (1).
Install the engine cover and air intake assembly. Refer to RESONATOR, AIR CLEANER, INSTALLATION for 2.4L or RESONATOR, AIR CLEANER, INSTALLATION for 3.2L.
