Heater, Engine Block: Installation: 2.4L
Courtesy of CHRYSLER GROUP, LLC

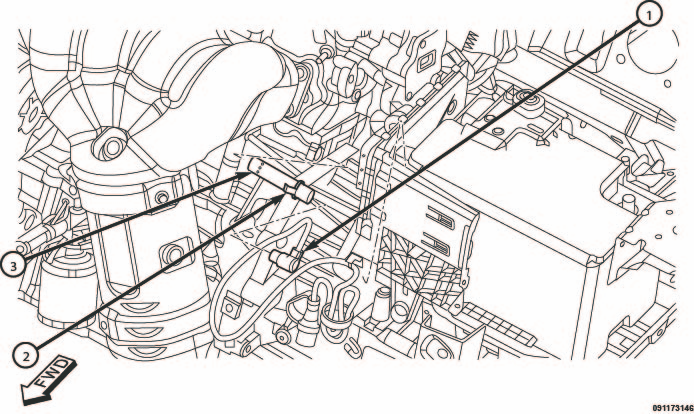

- Insert the block heater (3) into the block bore.
- Push the heater to the left until the tab (2) catches onto the block.
- Plug the block heater cord (1) into the heater.
- Install the engine cover.
