Charging System (Service Information): Generator: Installation: Diesel

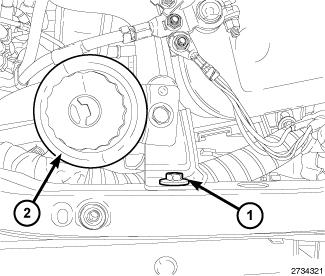

Fig 1: Identifying Upper Generator Mounting Bolt & Generator

Courtesy of CHRYSLER GROUP, LLC

1. Install the generator (1). Tighten bolt finger tight.

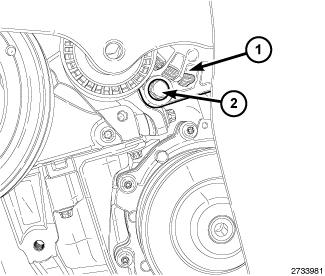

   Fig 2: Identifying Generator Mounting Retainer

   Courtesy of CHRYSLER GROUP, LLC
2. Install the bottom generator mounting retainer (2). Tighten upper and lower bolts to 28 N.m (21 ft. lbs.).

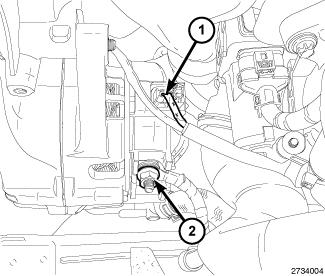

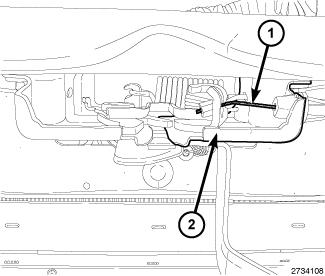

   Fig 3: Identifying Electrical Connector

   Courtesy of CHRYSLER GROUP, LLC
3. Install the B+ cable. Tighten nut (2) to 10 N.m (89 in. lbs.).
4. Connect the generator field wire harness connector (1).

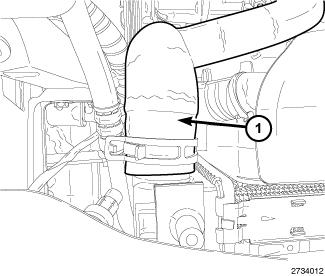

   Fig 4: Identifying Upper Radiator Hose

   Courtesy of CHRYSLER GROUP, LLC
5. Connect the upper radiator hose (1) to the radiator.

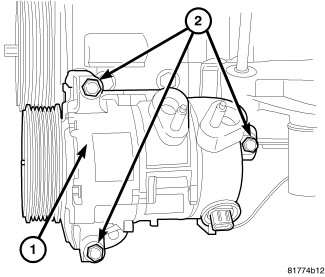

   Fig 5: A/C Compressor-R & I

   Courtesy of CHRYSLER GROUP, LLC
6. Install the A/C compressor (1). Tighten bolts (2) to 25 N.m (18 ft. lbs.).

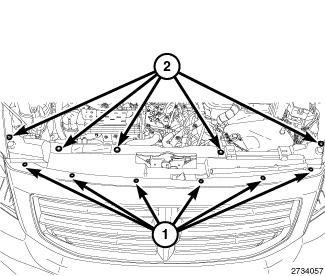

   Fig 6: Upper Core Support Seal Push Pins & Radiator Core Support Bolts

   Courtesy of CHRYSLER GROUP, LLC
7. Install the radiator core support.

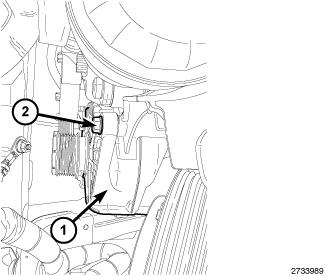

   Fig 7: Identifying Power Steering Reservoir

   Courtesy of CHRYSLER GROUP, LLC
8. Position the power steering reservoir (2) and securely tighten the bolt (1).
   Fig 8: Identifying Hood Release Cable

   Courtesy of CHRYSLER GROUP, LLC
9. Connect the hood release cable (2).
   Fig 9: Identifying Radiator Support Shroud

   Courtesy of CHRYSLER GROUP, LLC
10. Install the radiator support shroud.
    Fig 10: Identifying Main Drive Belt

    Courtesy of CHRYSLER GROUP, LLC
11. Install the serpentine belt (3). Refer to BELT, SERPENTINE, INSTALLATION .
12. Evacuate and fill the cooling system. Refer to STANDARD PROCEDURE .
    Fig 11: Identifying Bolts & Belly Pan

    Courtesy of CHRYSLER GROUP, LLC
13. If equipped, install the belly pan.
14. Connect the negative battery cable.
    Fig 12: Identifying Air Inlet Tube

    Courtesy of CHRYSLER GROUP, LLC
15. Install the air inlet tube (2).
