Power Transfer Unit (Service Information): Disassembly: Disassembly

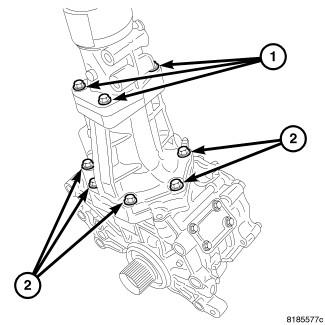

Fig 1: Extension And Pinion Housing Bolts

Courtesy of CHRYSLER GROUP, LLC

1. Remove extension housing bolts.

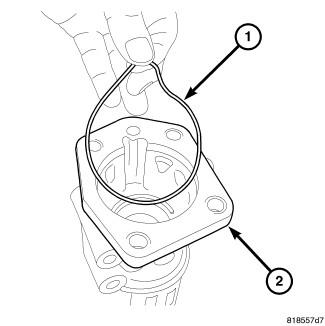

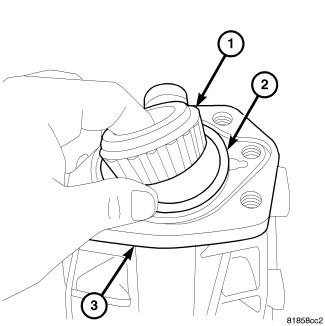

   Fig 2: Extension Housing O-Ring

   Courtesy of CHRYSLER GROUP, LLC
2. Remove the extension housing.
3. Remove the extension housing O-ring.

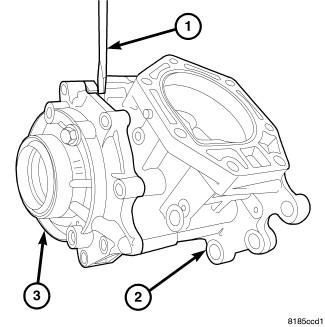

   Fig 3: Removing Dust Shield From Extension Housing

   Courtesy of CHRYSLER GROUP, LLC
4. Using a chisel (2) remove the dust shield (1) from the extension housing (3).
   Fig 4: Extension And Pinion Housing Bolts

   Courtesy of CHRYSLER GROUP, LLC
5. Remove the pinion housing bolts.
   Fig 5: Pinion Housing

   Courtesy of CHRYSLER GROUP, LLC
6. Remove the pinion housing.

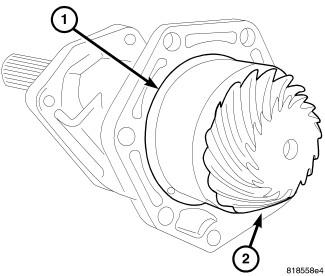

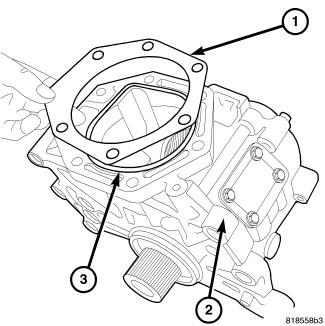

   Fig 6: Pinion Housing Shim

   Courtesy of CHRYSLER GROUP, LLC
7. Remove the pinion housing shim.
8. Remove the pinion housing O-ring.
   Fig 7: Pinion Shaft Nut

   Courtesy of CHRYSLER GROUP, LLC
   NOTE:

   The pinion nut is a staked type nut.

9. Using a chisel or a grinder, remove the staked depression in the pinion nut.

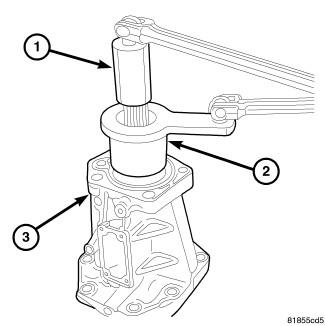

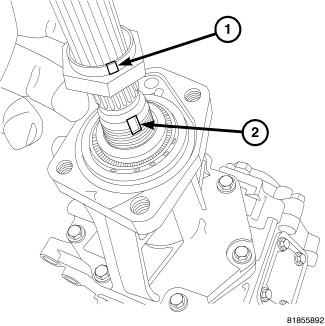

   Fig 8: Removing Pinion Nut

   Courtesy of CHRYSLER GROUP, LLC
10. Remove the output shaft nut, using the Output Shaft Nut Socket (special tool #9921, Wrench, Pinion Nut) and Spline Socket (special tool #9922, Socket, Splined).

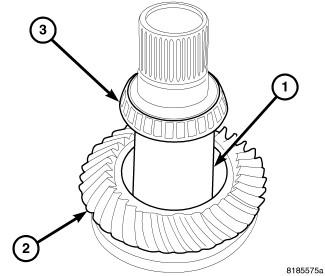

    Fig 9: Removing Output Shaft

    Courtesy of CHRYSLER GROUP, LLC
11. Press the output shaft from the housing using a press.

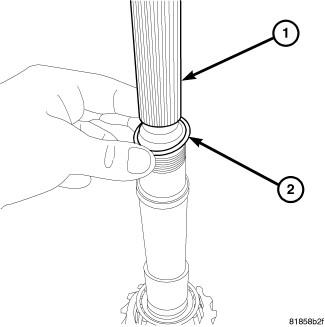

    Fig 10: Pinion Shaft Spacer

    Courtesy of CHRYSLER GROUP, LLC
12. Remove the output shaft spacer.
    Fig 11: Output Shaft Bearing

    Courtesy of CHRYSLER GROUP, LLC
13. Remove the output shaft bearing.

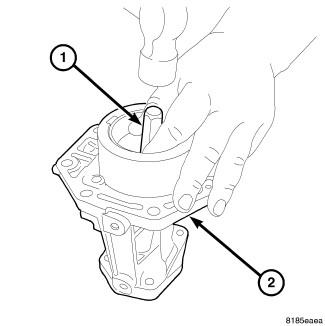

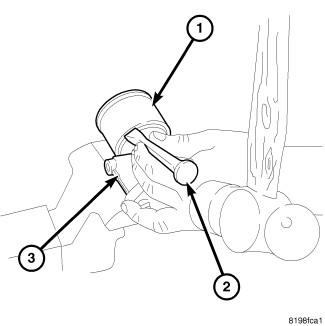

    Fig 12: Removing Small Side Bearing Cup

    Courtesy of CHRYSLER GROUP, LLC
14. Remove the output shaft housing small side bearing cup using a brass drift.
    Fig 13: Removing Large Side Bearing Cup

    Courtesy of CHRYSLER GROUP, LLC
15. Remove the output shaft housing large side bearing cup using a brass drift.

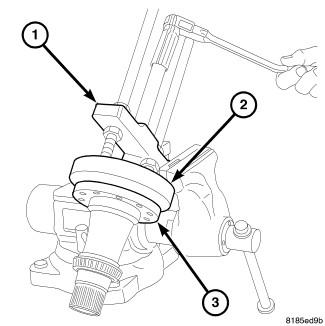

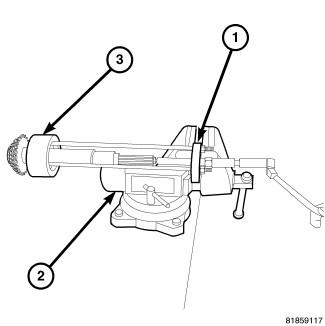

    Fig 14: Removing Output Shaft Head Bearing

    Courtesy of CHRYSLER GROUP, LLC
16. Install Puller (special tool #6444, Puller, Bearing/Gear) and Jaws (special tool #6451, Jaws, Puller) onto output shaft head bearing.
17. Place Puller in a vice and remove the bearing.

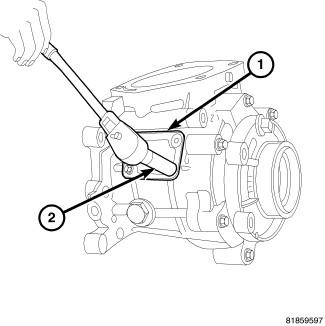

    Fig 15: Inspection Cover

    Courtesy of CHRYSLER GROUP, LLC
18. Remove the inspection cover bolts (1).

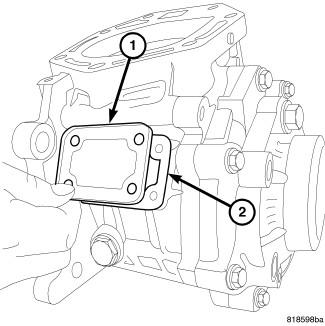

    Fig 16: Removing Inspection Cover

    Courtesy of CHRYSLER GROUP, LLC
19. Remove the inspection cover.

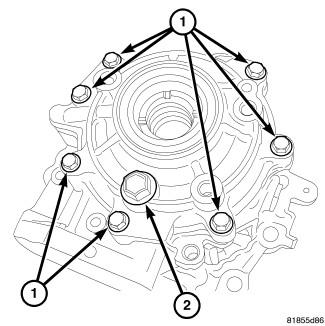

    Fig 17: Side Cover Bolts

    Courtesy of CHRYSLER GROUP, LLC
20. Remove the side cover bolts (1).
    Fig 18: Removing Side Cover

    Courtesy of CHRYSLER GROUP, LLC
21. Remove the side cover from case.
    Fig 19: Carrier Assembly

    Courtesy of CHRYSLER GROUP, LLC
22. Remove the carrier assembly.

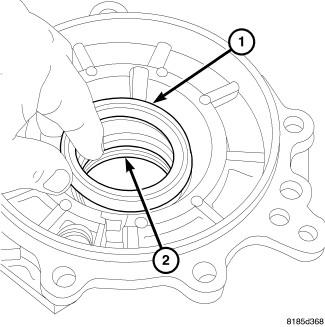

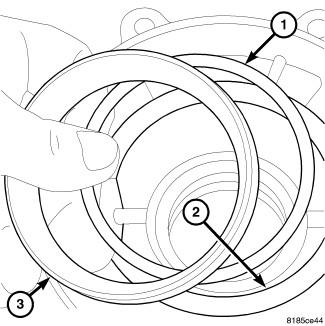

    Fig 20: Carrier Bearing Cup And Seal

    Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Bearing cup is a slip fit.

23. Remove bearing cup by hand (1) or by using a pick.
    Fig 21: Bearing Cup And Shim

    Courtesy of CHRYSLER GROUP, LLC
24. Remove the shim (1) under the bearing cup (3). Measure and record the size of the shim.

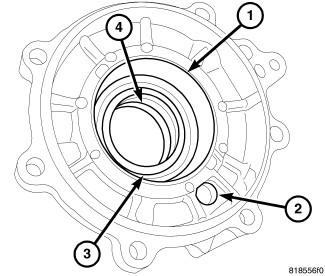

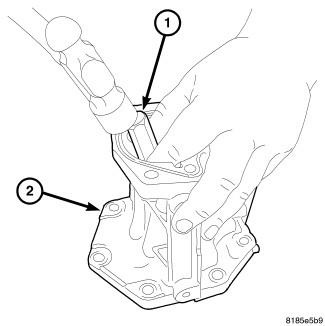

    Fig 22: Inner Cover Seal

    Courtesy of CHRYSLER GROUP, LLC
25. Remove the inner seal from the PTU cover.
26. Remove the outer seal from the PTU cover.

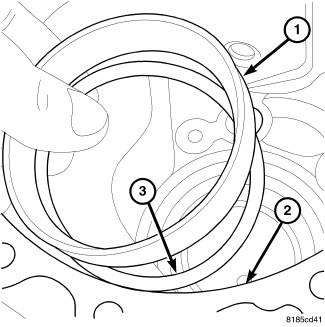

    Fig 23: Shim Under Bearing Cup

    Courtesy of CHRYSLER GROUP, LLC
27. Remove bearing cup by hand (1) or by using a pick.
28. Remove the shim (3) under the bearing cup (1). Measure and record the size of the shim.

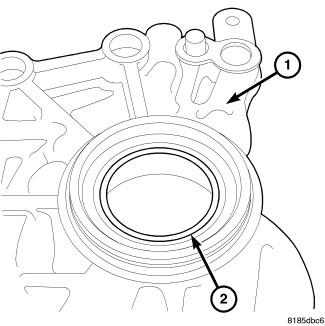

    Fig 24: Carrier Case Seal

    Courtesy of CHRYSLER GROUP, LLC
29. Remove the carrier case seal.

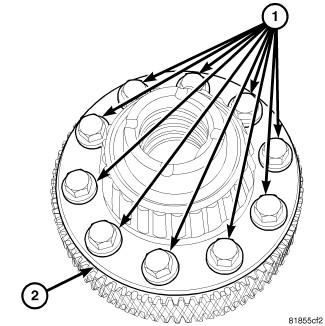

    Fig 25: Ring Gear Bolts

    Courtesy of CHRYSLER GROUP, LLC
30. Remove the ring gear bolts.

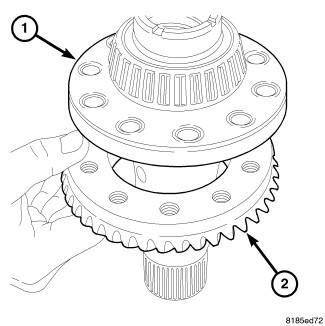

    Fig 26: Ring Gear

    Courtesy of CHRYSLER GROUP, LLC
31. Remove the ring gear.

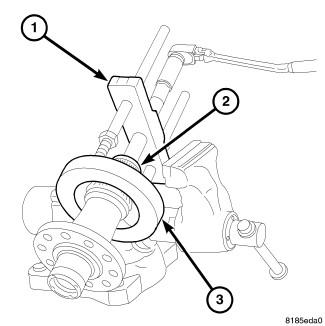

    Fig 27: Removing Ring Gear Side Bearing

    Courtesy of CHRYSLER GROUP, LLC
32. Remove ring gear side bearing using Puller (special tool #C-293-PA, Puller, Press), Inserts (special tool #C-293-37, Block Set, Puller) and Insert (special tool #C-4487-1, Adapter).
    Fig 28: Removing Output Side Bearing

    Courtesy of CHRYSLER GROUP, LLC
33. Remove output side bearing using Puller (special tool #C-293-PA, Puller, Press), Inserts (special tool #C-293-37, Block Set, Puller) and Insert (special tool #C-4487-1, Adapter).
