Sensor, Accelerator Pedal Position: Removal: Removal

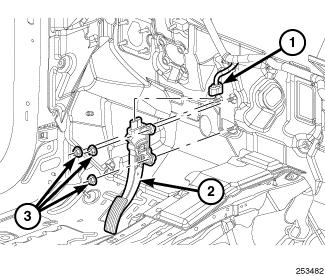

Fig 1: Pedal And APPS Sensor
GC0098890Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Disconnect the accelerator pedal harness connector (1).
  3. Remove mounting nuts (3) band the accelerator pedal (2).
