Module, Power Inverter: Installation

Courtesy of CHRYSLER GROUP, LLC

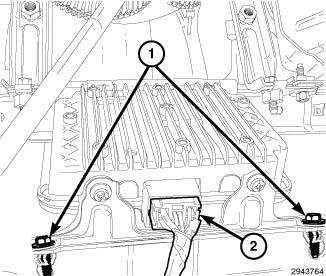

1. Install the power inverter module, install the lower power inverter retainers (1) and connect the wiring connector (2).

   Courtesy of CHRYSLER GROUP, LLC

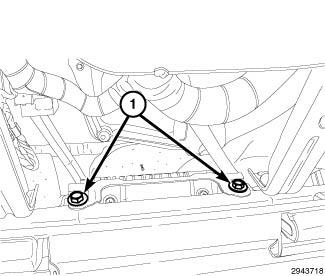

2. Install the upper power inverter retainers (1).

   Courtesy of CHRYSLER GROUP, LLC

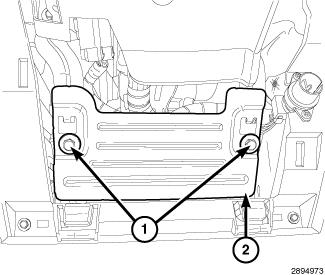

3. Install the reinforcement plate and retainers.

   Courtesy of CHRYSLER GROUP, LLC

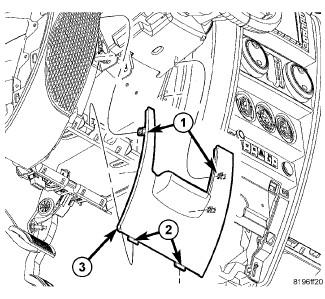

4. Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
5. Connect the negative battery cable.
