Sensor, Air Temperature, Intake: Installation

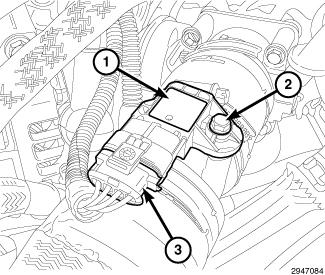

GC0148204Courtesy of CHRYSLER GROUP, LLC
  1. Inspect and lubricate the IAT/MAP sensor O-ring seal.
  2. Clean the IAT/MAP sensor sealing area.
  3. Install the IAT/MAP sensor (1) and securely tighten the bolt (2).
  4. Connect the IAT/MAP sensor wire harness connector (3).
  5. Connect the negative battery cable.
