Sensor, Intake Air Pressure: Installation

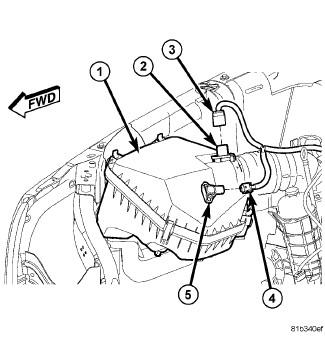

GC0131128Courtesy of CHRYSLER GROUP, LLC
  1. Check condition of sensor O-ring.
  2. Install the Intake Air Pressure (IAP) sensor (5) and securely tighten fasteners.
  3. Install IAP sensor wire harness connector (4).
  4. Connect the negative battery cable.
