Sensor, Air Temperature, Intake: Installation

Courtesy of CHRYSLER GROUP, LLC

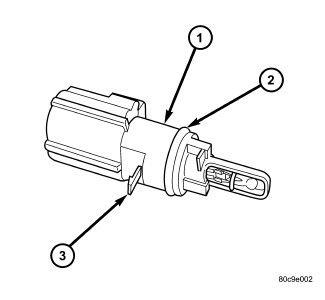

1. The sensor mounted O-ring seal (2) can be reused if not damaged.
2. Clean the IAT sensor mounting hole in the air inlet hose.
3. Install the IAT sensor into the air inlet hose and rotate clockwise until the release tab (3) engages.

   Courtesy of CHRYSLER GROUP, LLC

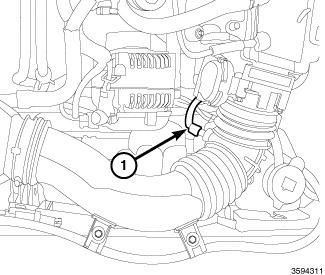

4. Install the electrical connector (1) to the IAT sensor.
5. Install the engine cover. Refer to COVER, ENGINE, INSTALLATION .
6. Connect the negative battery cable.
