Capacitor, Ignition: Installation

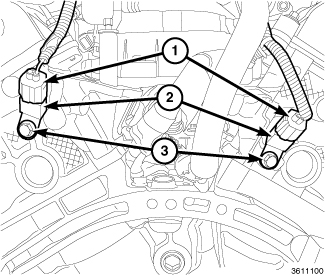

GC0154074Courtesy of CHRYSLER GROUP, LLC
  1. Install the ignition coil capacitor (2) and bolt (3). Tighten the bolt to 10 N.m (89 in. lbs.).
  2. Connect the electrical connector (1).
  3. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
