Drive, Fan: Installation

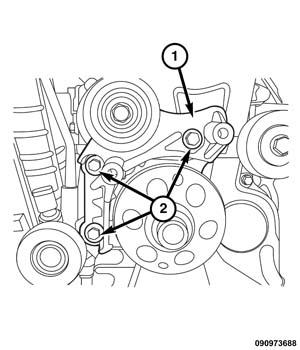

- Install the fan drive assembly. Tighten the bolts to 45 N.m (33 ft. lbs.).
- Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
- Install the viscous cooling fan. Refer to FAN, COOLING, INSTALLATION .
- Connect the negative battery cable.
