Sensor, Coolant Temperature: Installation: 2.8L

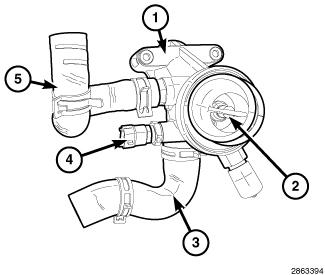

GC0145356Courtesy of CHRYSLER GROUP, LLC
  1. Install coolant temperature sensor (4) in thermostat housing (1) and tighten to 11 N.m (8 ft. lbs.).
    GC0145357Courtesy of CHRYSLER GROUP, LLC
  2. Install the thermostat housing (2). Refer to THERMOSTAT, INSTALLATION .
