Tube, Water Inlet: Installation

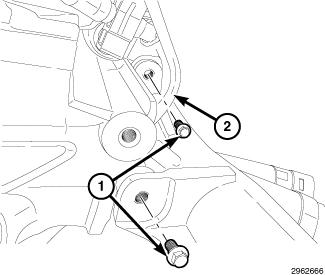

GC0148210Courtesy of CHRYSLER GROUP, LLC
  1. Install NEW  O-ring seal onto the water tube elbow.
  2. Lubricate the O-ring seal with coolant and install elbow into the back side of the water pump housing.
  3. Install the mounting bolts (1) and tighten to 12 N.m (9 ft. lbs.).

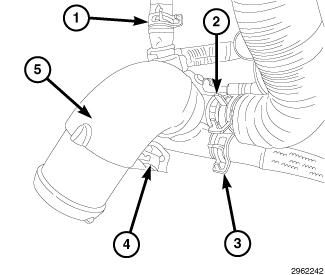

    GC0148207Courtesy of CHRYSLER GROUP, LLC
  4. Install the oil cooler hose (4).
    GC0145355Courtesy of CHRYSLER GROUP, LLC
  5. Install the thermostat housing (4). Refer to THERMOSTAT, INSTALLATION .
  6. Connect the negative battery cable.
