Sensor, Particulate Matter: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Install the Particulate Matter (PM) sensor (1) and tighten to 60 N.m (44 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

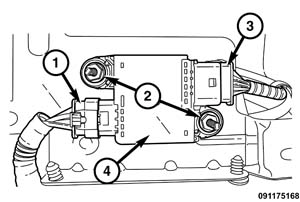

2. Install the PM module (4). Tighten the nuts (2) to 11 N.m (8 ft. lbs.).
3. Connect the PM sensor wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

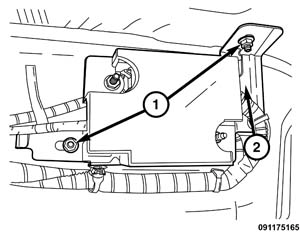

4. Install the module mounting bracket (2). Tighten the nuts (1) to 11 N.m (8 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

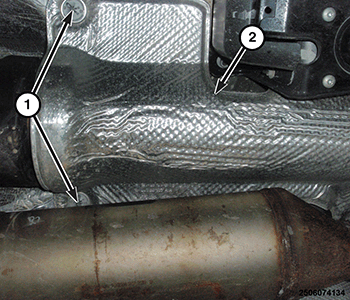

5. Install the heat shield (2) and fasteners (1).

   Courtesy of CHRYSLER GROUP, LLC

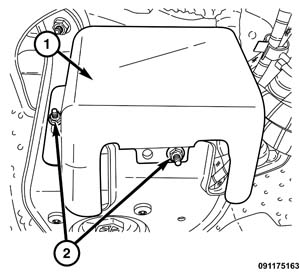

6. Install the fuel filter shield (1). Tighten the nuts (2) 14 N.m (10 ft. lbs.).
7. Remove the support and lower the vehicle.
8. Connect the negative battery cables.
