Capacitor, Ignition: Installation: 3.6L

Courtesy of CHRYSLER GROUP, LLC

1. Install the ignition capacitor (2) and bolt (3), then tighten the bolt to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
2. Connect the ignition capacitor electrical connector (1).

   Courtesy of CHRYSLER GROUP, LLC

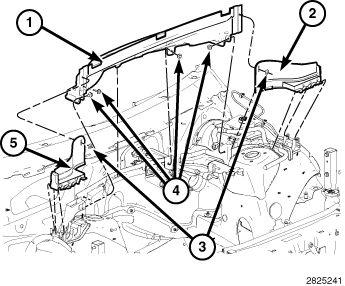

3. Install the cowl extension silencer (1). Refer to SILENCER, COWL EXTENSION, INSTALLATION .
4. Connect the negative battery cable.
